VBsemi ElecDatasheet (PDF)

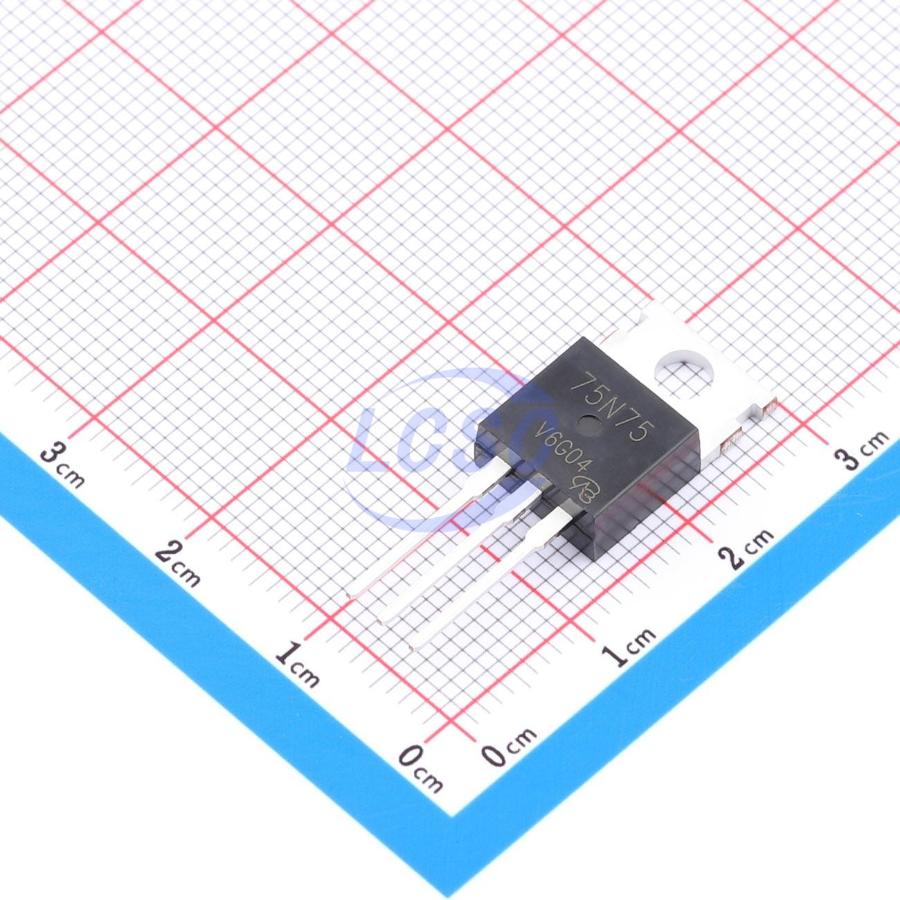

CS75N75B8H-VB
N-Channel 80V 100A 180W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 80V 100A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- CS75N75B8H-VB
- Store part #
- C29778953
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C29778953
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹146.47 | ₹146.47 |
| 10+ | ₹121.25 | ₹1,212.50 |
| 50+ | ₹107.35 | ₹5,367.50 |
| 100+ | ₹91.49 | ₹9,149.00 |
| 500+ | ₹84.54 | ₹42,270.00 |
| 1,000+ | ₹81.27 | ₹81,270.00 |
1 × ₹146.47
₹146.47
excl. GST
₹172.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
CS75N75B8H-VB
₹146.47 for 1 + GST
Specifications
- Drain to Source Voltage
- 80V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 1.12nF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 3.855nF
- Pd - Power Dissipation
- 180W
- Reverse Transfer Capacitance (Crss)
- 376pF
- RDS(on)
- 7mΩ@10V;7.5mΩ@6V;9mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35.5nC@10V;22nC@6V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.08 g
Overview
Applications
- Primary-side switch
- Synchronous rectification
- DC/AC inverter
- LED backlight
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BUK9506-75B-VB#C19190261VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹149.62 · 5 in stock | View |
 | HUF75542P3-VB#C22389616VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 2 | ₹141.59 · 2 in stock | View |
 | ME50N75T-VB#C22389684VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹141.59 · 10 in stock | View |
 | 2N08L07-VB TO220#C22389818VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹141.59 · 5 in stock | View |
 | TSM80N08CZ-VB#C29779060VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 4 | ₹141.59 · 4 in stock | View |
