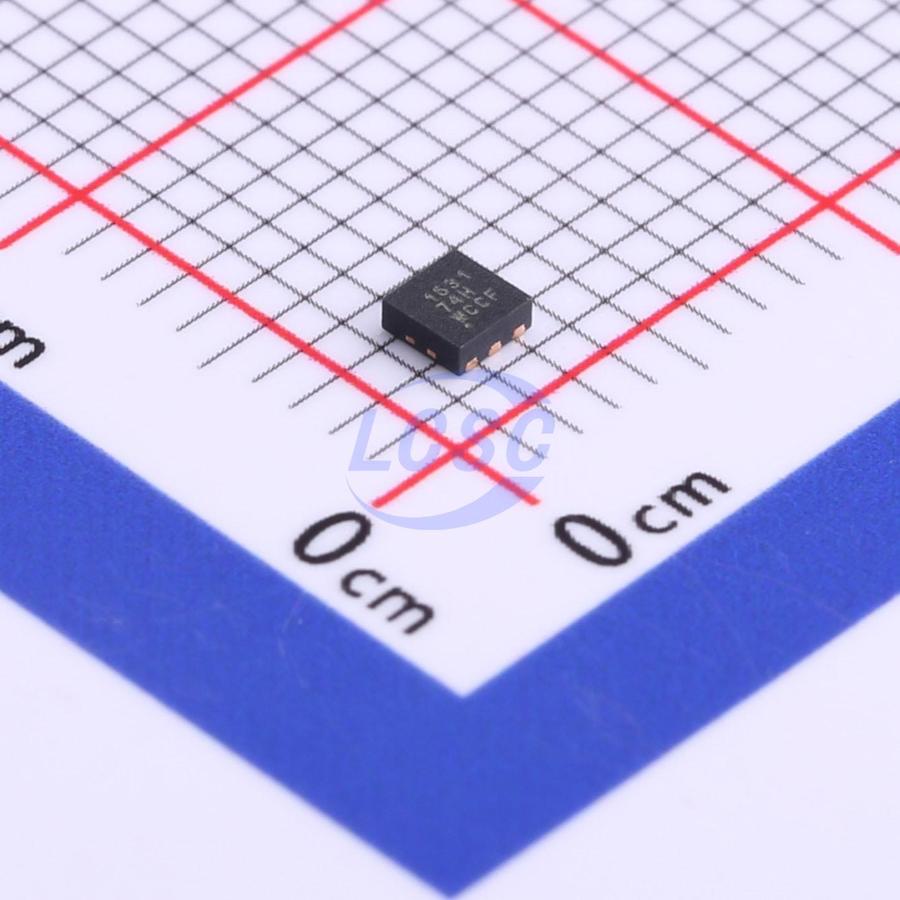

CSD16301Q2
N-Channel 25V 20A 15W Surface Mount WSON-6(2x2)
WSON-6(2x2)ROHS3 CompliantActive
MOSFET N-CH 25V 20A WSON-6(2x2)
- Manufacturer
- TI
- Manufacturer part #
- CSD16301Q2
- Store part #
- C140340
- Package / case
- WSON-6(2x2)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,650 in stock
#C140340
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.31 | ₹166.55 |
| 50+ | ₹26.01 | ₹1,300.50 |
| 150+ | ₹22.89 | ₹3,433.50 |
| 500+ | ₹19.00 | ₹9,500.00 |
| 3,000+ | ₹16.25 | ₹48,750.00 |
| 6,000+ | ₹15.20 | ₹91,200.00 |
5 × ₹33.31
₹166.55
excl. GST
₹196.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CSD16301Q2
₹166.55 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 215pF
- Ciss-Input Capacitance
- 340pF
- Pd - Power Dissipation
- 15W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 25V
- Current - Continuous Drain(Id)
- 20A
- Reverse Transfer Capacitance (Crss)
- 17pF
- RDS(on)
- 34mΩ@3V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 2.8nC@4.5V
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 1.55V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
This 25-V, 19-mΩ, 2-mm × 2-mm SON NexFET power MOSFET has been designed to minimize losses in power conversion and load management applications. The 2-mm × 2-mm SON package offers excellent thermal performance for the size of the package.
Applications
- DC-DC Converters
- Battery and Load Management Applications
Key features
- Ultra-Low Qg and Qgd
- Low Thermal Resistance
- Lead-Free Terminal Plating
- RoHS Compliant
- Halogen Free SON 2-mm × 2-mm Plastic Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSCB20N06#C51025839HUASHUO · DFN-6L(2x2) | HUASHUO | DFN-6L(2x2) | 1,555 | ₹20.24 · 1,555 in stock | View |
 | CSD17318Q2#C2862001TI · WSON-6(2x2) | TI | WSON-6(2x2) | 1,050 | ₹27.68 · 1,050 in stock | View |
 | AGM310AS#C20625941AGMSEMI · DFN-6(2x2) | AGMSEMI | DFN-6(2x2) | 110 | ₹11.88 · 110 in stock | View |
 | CSD17571Q2#C962382TI · WSON-6(2x2) | TI | WSON-6(2x2) | 1,105 | ₹29.83 · 1,105 in stock | View |
| SIA4446DJ-T1-GE3#C20346105VISHAY · PowerPAKSC-70-6L | VISHAY | PowerPAKSC-70-6L | 15 | ₹85.98 · 15 in stock | View | |
