HXY MOSFETDatasheet (PDF)

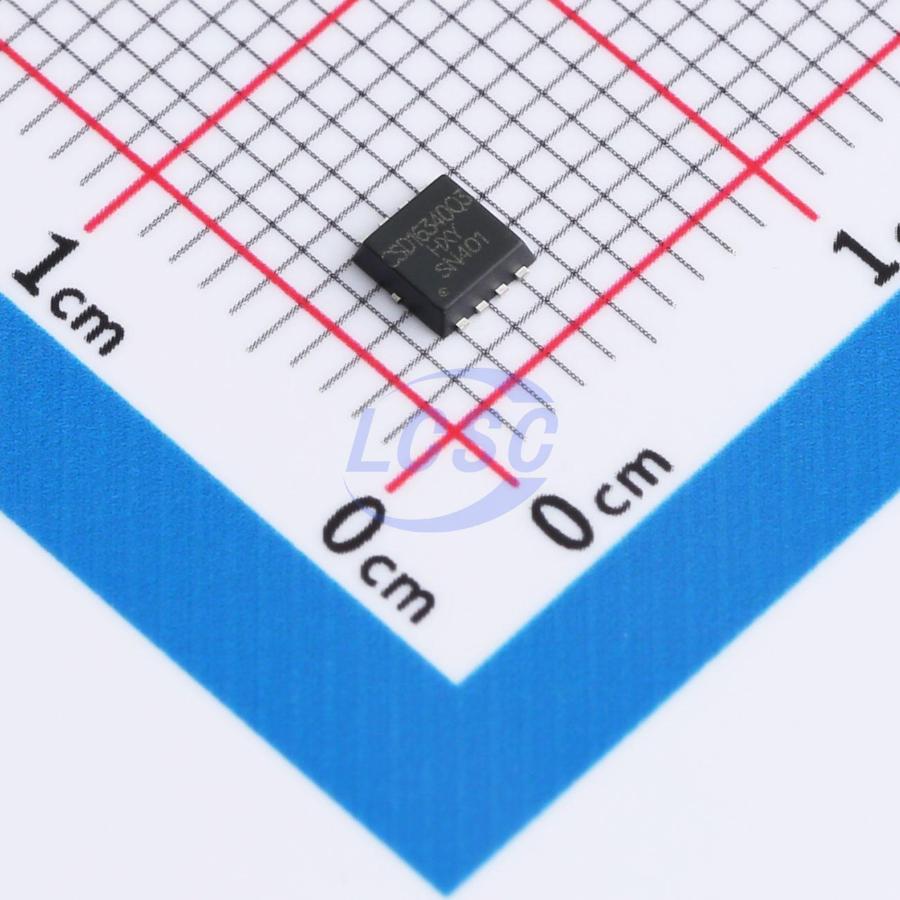

CSD16340Q3-HXY
N-Channel 30V 100A 62.5W Surface Mount DFN3x3-8L
DFN3X3-8LRoHSActive
MOSFET N-CH 30V 100A DFN3X3-8L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- CSD16340Q3-HXY
- Store part #
- C22367291
- Package / case
- DFN3X3-8L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
65 in stock
#C22367291
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.73 | ₹218.65 |
| 50+ | ₹34.64 | ₹1,732.00 |
| 150+ | ₹30.75 | ₹4,612.50 |
| 500+ | ₹25.88 | ₹12,940.00 |
| 2,500+ | ₹23.72 | ₹59,300.00 |
| 5,000+ | ₹22.42 | ₹1,12,100.00 |
5 × ₹43.73
₹218.65
excl. GST
₹258.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
CSD16340Q3-HXY
₹218.65 for 5 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 400pF
- Current - Continuous Drain(Id)
- 60A
- Pd - Power Dissipation
- 62.5W
- RDS(on)
- 4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 31.6nC@4.5V
- Vgs
- ±20V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.058 g
