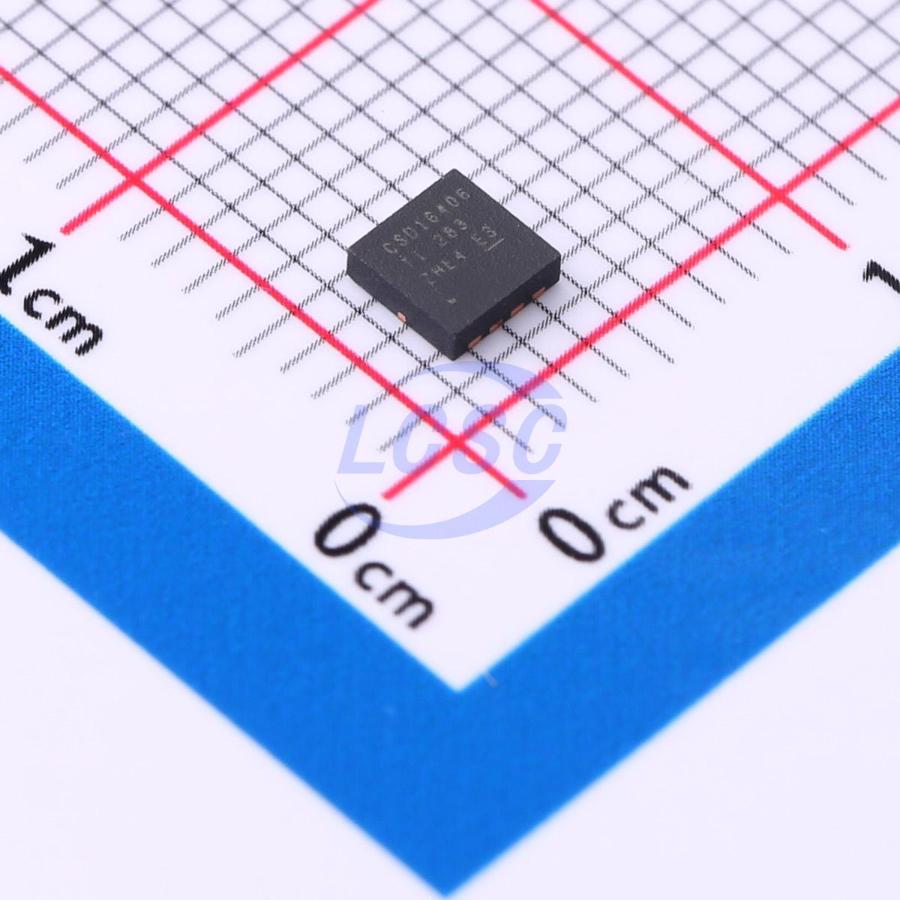

CSD16406Q3
N-Channel 25V 79A 46W Surface Mount VSON-8(3.3x3.3)
VSON-8(3.3x3.3)ROHS3 CompliantActive
MOSFET N-CH 25V 79A VSON-8(3.3x3.3)
- Manufacturer
- TI
- Manufacturer part #
- CSD16406Q3
- Store part #
- C2861720
- Package / case
- VSON-8(3.3x3.3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,604 in stock
#C2861720
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹107.55 | ₹107.55 |
| 10+ | ₹91.50 | ₹915.00 |
| 30+ | ₹80.23 | ₹2,406.90 |
| 100+ | ₹70.90 | ₹7,090.00 |
| 500+ | ₹67.87 | ₹33,935.00 |
| 1,000+ | ₹66.14 | ₹66,140.00 |
1 × ₹107.55
₹107.55
excl. GST
₹126.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CSD16406Q3
₹107.55 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 950pF
- Ciss-Input Capacitance
- 1.1nF
- Pd - Power Dissipation
- 46W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 25V
- Current - Continuous Drain(Id)
- 79A
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 7.4mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8.1nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
This 25 V, 4.2 mΩ, 3.3 mm × 3.3 mm SON NexFET power MOSFET has been designed to minimize losses in power conversion applications.
Applications
- Point-of-Load Synchronous Buck Converter for Applications in Networking, Telecom, and Computing Systems
- Optimized for Control or Synchronous FET Applications
Key features
- Ultra-Low Qg and Qgd
- Low Thermal Resistance
- Avalanche Rated
- Pb Free Terminal Plating
- RoHS Compliant
- Halogen Free SON 3.3 mm × 3.3 mm Plastic Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIS476DN-T1-GE3#C269267VISHAY · PowerPAK1212-8 | VISHAY | PowerPAK1212-8 | 8 | ₹455.46 · 8 in stock | View |
 | NTTFS1D8N02P1E#C894099onsemi · PQFN-8(3.3x3.3) | onsemi | PQFN-8(3.3x3.3) | 8 | ₹678.37 · 8 in stock | View |
 | CSD16323Q3#C248610TI · VSON-8(3.3x3.3) | TI | VSON-8(3.3x3.3) | 175 | ₹110.58 · 175 in stock | View |
 | CSD16327Q3#C2860421TI · VSON-CLIP-8(3.3x3.3) | TI | VSON-CLIP-8(3.3x3.3) | 1,419 | ₹105.23 · 1,419 in stock | View |
 | CMSC3050#C53896394Cmos · DFN-8(3.3x3.3) | Cmos | DFN-8(3.3x3.3) | 115 | ₹19.43 · 115 in stock | View |
