TIDatasheet (PDF)

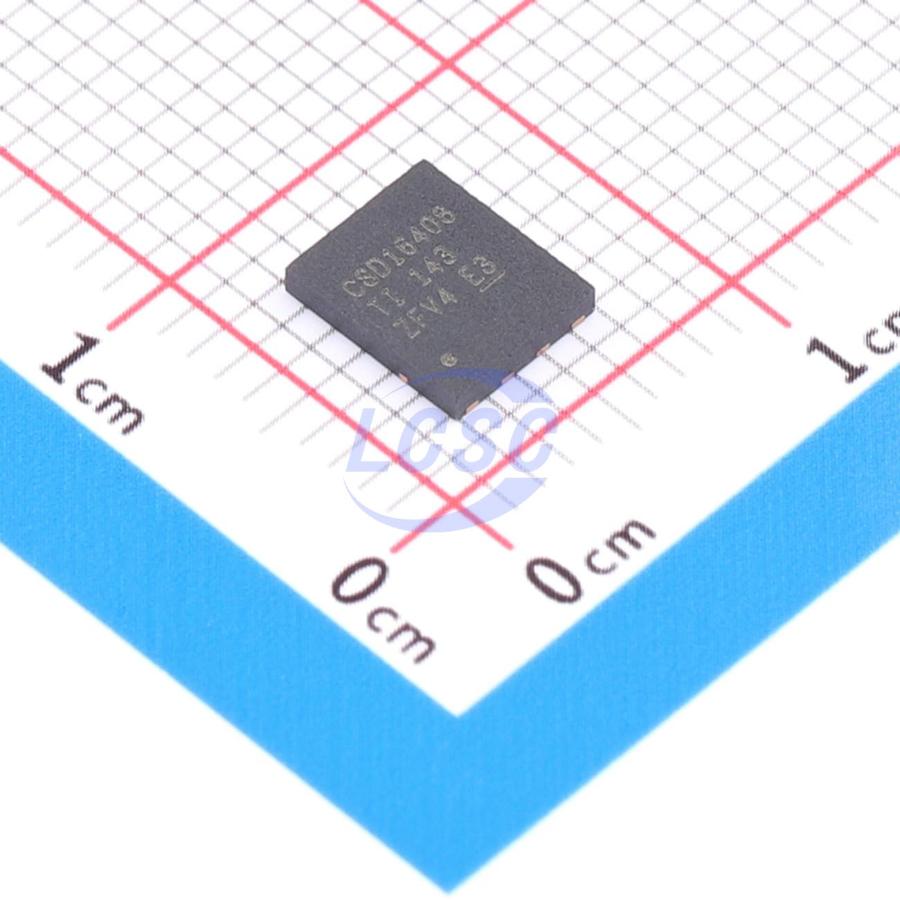

CSD16408Q5
3.1W 25V 113A 6.8mΩ@10V 1 N-channel N-Channel VSON-8(5x6) Single FETs, MOSFETs RoHS
VSON-8(5x6)ROHS3 CompliantActive
N-Channel, Current:113A, Voltage:25V
- Manufacturer
- TI
- Manufacturer part #
- CSD16408Q5
- Store part #
- C2760460
- Package / case
- VSON-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C2760460
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹229.39 | ₹229.39 |
| 10+ | ₹224.20 | ₹2,242.00 |
| 30+ | ₹220.73 | ₹6,621.90 |
| 100+ | ₹217.25 | ₹21,725.00 |
1 × ₹229.39
₹229.39
excl. GST
₹270.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CSD16408Q5
₹229.39 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1nF
- Ciss-Input Capacitance
- 1.3nF
- Pd - Power Dissipation
- 3.1W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 25V
- Current - Continuous Drain(Id)
- 113A
- Reverse Transfer Capacitance (Crss)
- 100pF
- RDS(on)
- 6.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6.7nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 2.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.46 g
Overview
NexFET power MOSFETs are designed to minimize losses in power conversion applications.
Applications
- Point-of-load synchronous buck conversion in networking, telecom, and computing systems
- Optimized for controlling FET applications
Key features
- Ultra-low Qg and Qgd
- Low thermal resistance
- Avalanche rated
- SON 5mm×6mm plastic package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NTMFS3D2N10MDT1G#C5209348onsemi · DFN-5(5x6)(SO-8FL) | onsemi | DFN-5(5x6)(SO-8FL) | 6 | ₹830.74 · 6 in stock | View |
 | BSC026N04LS#C3039672Infineon · TDSON-8(5x6) | Infineon | TDSON-8(5x6) | 27,370 | ₹94.30 · 27,370 in stock | View |
 | MS4004Y#C47361190MIRACLE POWER · PDFN-8(5x6) | MIRACLE POWER | PDFN-8(5x6) | 5,000 | ₹43.34 · 5,000 in stock | View |
| SQJ152ELP-T1_GE3#C3279539VISHAY · PowerPAK-SO-8 | VISHAY | PowerPAK-SO-8 | 30 | ₹112.85 · 30 in stock | View | |
 | NTMFS5H414NLT1G#C604448onsemi · SO-8FL | onsemi | SO-8FL | 10 | ₹844.58 · 10 in stock | View |
