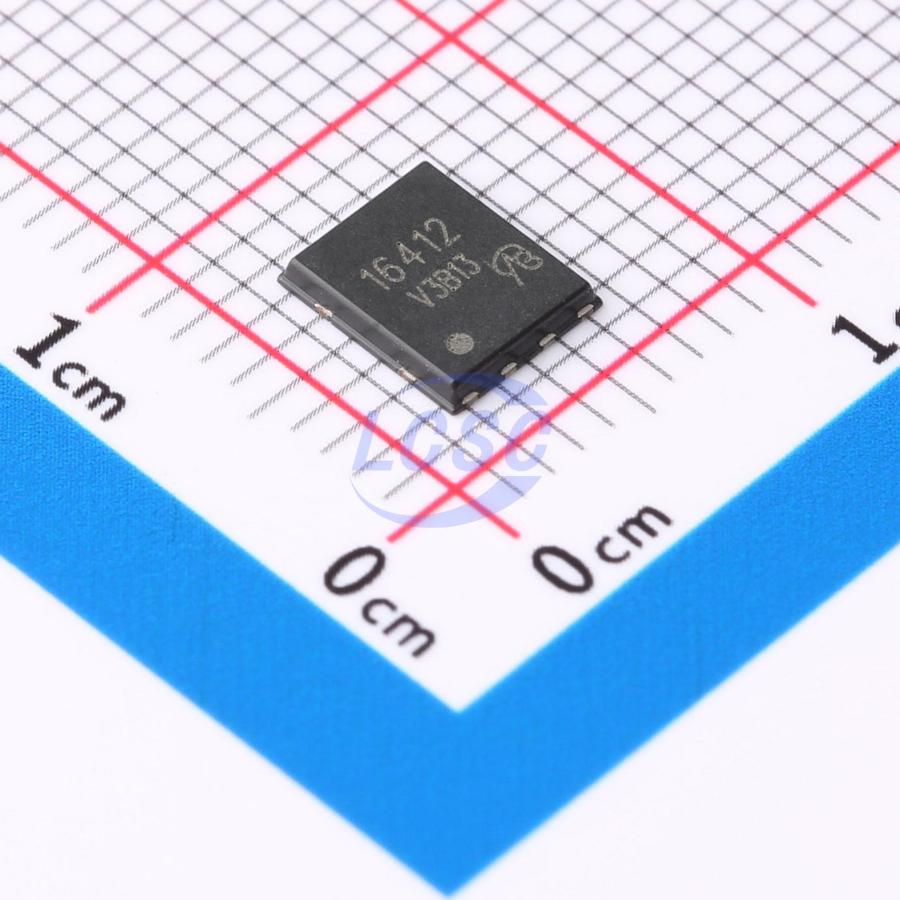

CSD16412Q5A-VB
N-Channel 30V 80A 155W Surface Mount DFN5x6-8
DFN5x6-8ROHS CompliantActive
MOSFET N-CH 30V 80A DFN5x6-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- CSD16412Q5A-VB
- Store part #
- C7525066
- Package / case
- DFN5x6-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
37 in stock
#C7525066
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹98.62 | ₹98.62 |
| 10+ | ₹82.08 | ₹820.80 |
| 30+ | ₹73.59 | ₹2,207.70 |
| 100+ | ₹65.32 | ₹6,532.00 |
| 500+ | ₹50.72 | ₹25,360.00 |
| 1,000+ | ₹48.33 | ₹48,330.00 |
1 × ₹98.62
₹98.62
excl. GST
₹116.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
CSD16412Q5A-VB
₹98.62 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 425pF
- Current - Continuous Drain(Id)
- 80A
- Ciss-Input Capacitance
- 1.18nF
- Pd - Power Dissipation
- 155W
- Reverse Transfer Capacitance (Crss)
- 170pF
- RDS(on)
- 7mΩ@10V;9mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 61nC@10V;31.5nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 500mV;2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.124 g
Overview
Applications
- OR-ing
- Server
- DC/DC
Key features
- Trench power MOSFET
- 100% gate resistance (Rg) and unclamped inductive switching (UIS) tested
- RoHS compliant per EU Directive 2011/65/EU
