VBsemi ElecDatasheet (PDF)

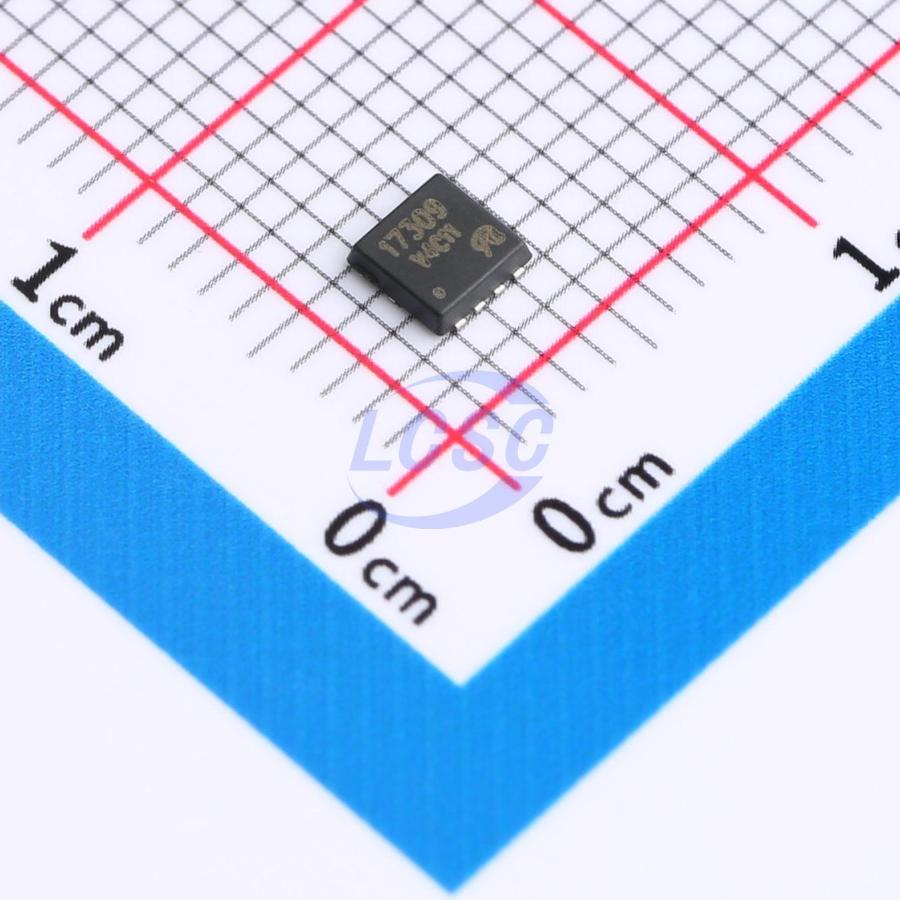

CSD17309Q3-VB
N-Channel 30V 60A 52W Surface Mount DFN3x3-8
DFN3x3-8RoHSActive
MOSFET N-CH 30V 60A DFN3x3-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- CSD17309Q3-VB
- Store part #
- C20755349
- Package / case
- DFN3x3-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C20755349
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹102.57 | ₹102.57 |
| 10+ | ₹84.54 | ₹845.40 |
| 30+ | ₹75.62 | ₹2,268.60 |
| 100+ | ₹66.72 | ₹6,672.00 |
| 500+ | ₹51.07 | ₹25,535.00 |
| 1,000+ | ₹48.25 | ₹48,250.00 |
1 × ₹102.57
₹102.57
excl. GST
₹121.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
CSD17309Q3-VB
₹102.57 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 406pF
- Current - Continuous Drain(Id)
- 60A
- Ciss-Input Capacitance
- 6nF
- Pd - Power Dissipation
- 52W
- Reverse Transfer Capacitance (Crss)
- 360pF
- RDS(on)
- 4mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 69nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.185 g
Overview
Applications
- Motor control
- Load switch
- OR-ing diode
Key features
- Halogen-free as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
