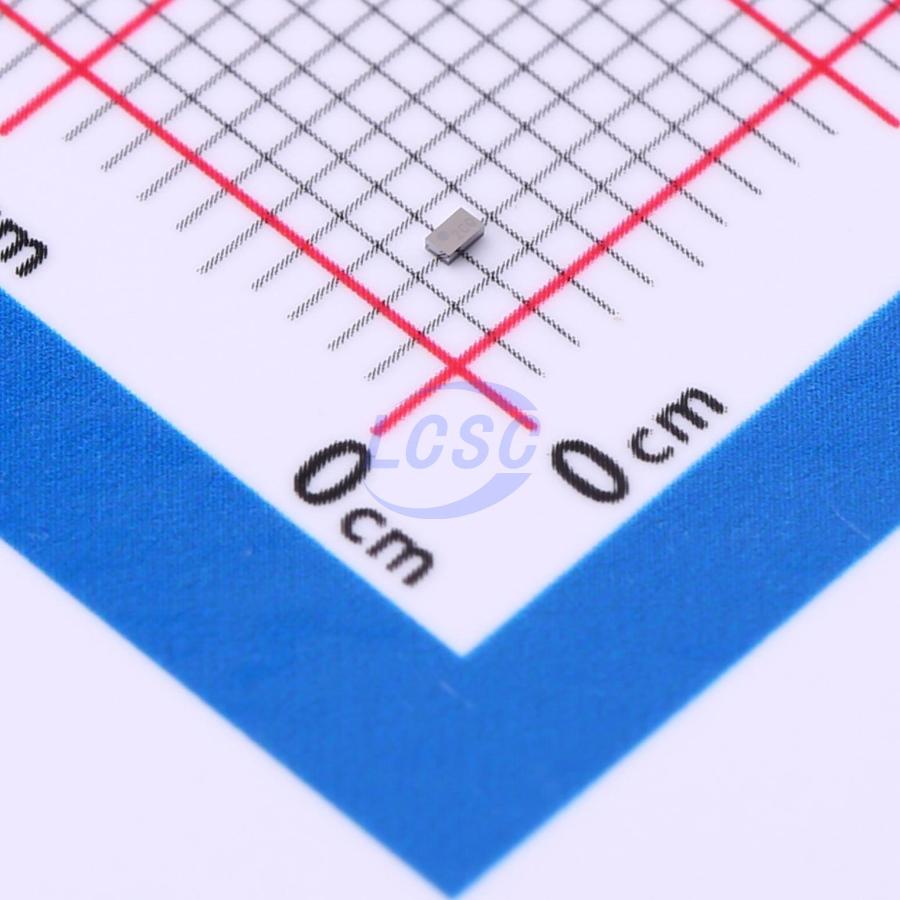

CSD17381F4
N-Channel 30V 3.1A 500mW Surface Mount PicoStar-3
PicoStar-3ROHS3 CompliantActive
MOSFET N-CH 30V 3.1A PicoStar-3
- Manufacturer
- TI
- Manufacturer part #
- CSD17381F4
- Store part #
- C2869182
- Package / case
- PicoStar-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
950 in stock
#C2869182
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.78 | ₹73.90 |
| 50+ | ₹12.11 | ₹605.50 |
| 150+ | ₹10.73 | ₹1,609.50 |
| 500+ | ₹9.60 | ₹4,800.00 |
| 3,000+ | ₹9.21 | ₹27,630.00 |
| 6,000+ | ₹8.94 | ₹53,640.00 |
5 × ₹14.78
₹73.90
excl. GST
₹87.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CSD17381F4
₹73.90 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 57pF
- Ciss-Input Capacitance
- 195pF
- Pd - Power Dissipation
- 500mW
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 3.1A
- Reverse Transfer Capacitance (Crss)
- 2.9pF
- RDS(on)
- 250mΩ@1.8V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 1.04nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.051 g
Overview
90 mΩ, 30V N-channel FemtoFET MOSFET technology is designed and optimized to minimize board space in handheld and mobile applications. This technology reduces package size by at least 60% compared to standard small-signal MOSFETs.
Applications
- Optimized for load switch applications
- Optimized for general-purpose switch applications
- Single-cell battery applications
- Handheld and mobile applications
Key features
- Ultra-low on-resistance
- Ultra-low Qg and Qgd
- Low threshold voltage
- Ultra-compact package (0402 case size)
- Ultra-thin package, 0.36 mm thickness
- Integrated ESD protection diode, rated >4 kV HBM
- Integrated ESD protection diode, rated >2 kV CDM
- Lead-free and halogen-free
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CSD17484F4#C2862245TI · PicoStar-3 | TI | PicoStar-3 | 11,665 | ₹48.10 · 11,665 in stock | View |
 | CSD17585F5T#C2865530TI · PicoStar-3 | TI | PicoStar-3 | 200 | ₹73.74 · 200 in stock | View |
 | CSD17585F5#C202314TI · PicoStar-3 | TI | PicoStar-3 | 2,950 | ₹38.87 · 2,950 in stock | View |
| CSD17381F4T#C2878963TI · PicoStar-3 | TI | PicoStar-3 | On request | ₹21.95 · 0 in stock | View | |
 | CSD17484F4T#C2872486TI · PicoStar-3 | TI | PicoStar-3 | On request | ₹40.13 · 0 in stock | View |
