VBsemi ElecDatasheet (PDF)

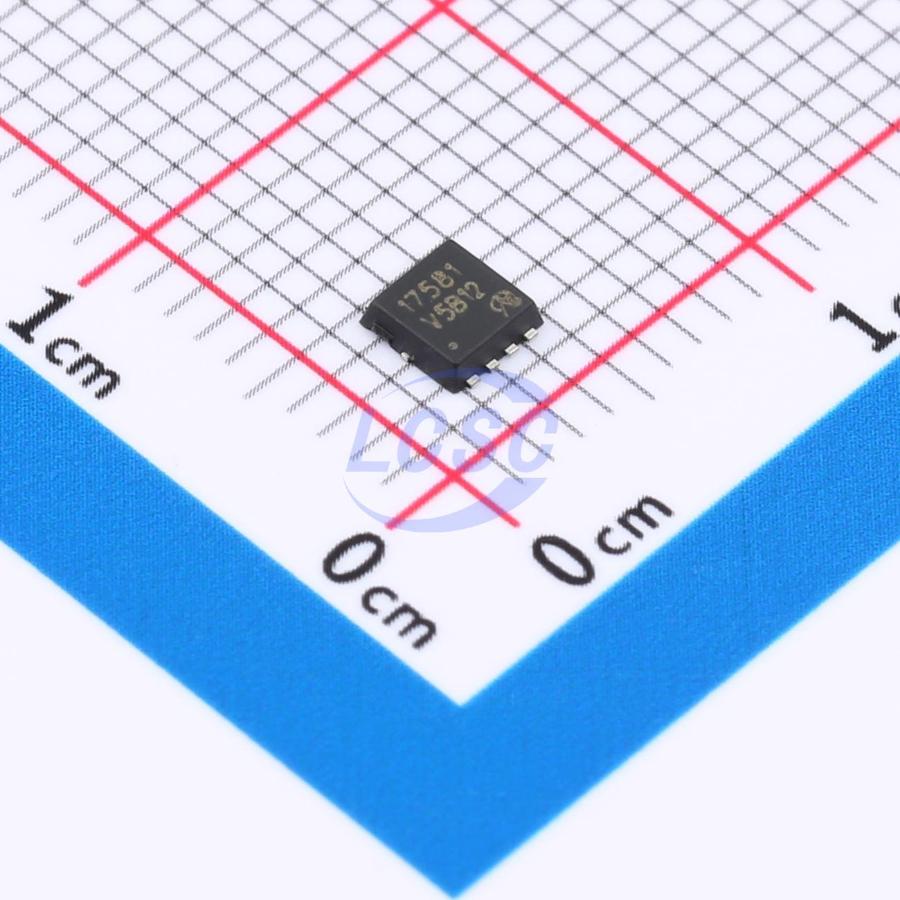

CSD17581Q3AT-VB
N-Channel 30V 60A 52W Surface Mount DFN-8(3x3)
DFN-8(3x3)RoHSActive
MOSFET N-CH 30V 60A DFN-8(3x3)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- CSD17581Q3AT-VB
- Store part #
- C45662506
- Package / case
- DFN-8(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C45662506
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹125.18 | ₹125.18 |
| 10+ | ₹107.33 | ₹1,073.30 |
| 30+ | ₹98.18 | ₹2,945.40 |
| 100+ | ₹89.47 | ₹8,947.00 |
| 500+ | ₹54.86 | ₹27,430.00 |
| 1,000+ | ₹52.03 | ₹52,030.00 |
1 × ₹125.18
₹125.18
excl. GST
₹147.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
CSD17581Q3AT-VB
₹125.18 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 60A
- Ciss-Input Capacitance
- 6nF
- Pd - Power Dissipation
- 52W
- Reverse Transfer Capacitance (Crss)
- 68pF
- RDS(on)
- 5mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 33.5nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.05 g
Overview
Applications
- Motor Control - Load Switch - OR Gate Circuit
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% tested for Rg and UIS
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDMC3020DC-VB#C19711239VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 10 | ₹89.06 · 10 in stock | View |
 | NTTFS4939NTAG-VB#C29779162VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 20 | ₹92.48 · 20 in stock | View |
| PXN4R7-30QLJ-VB#C52148626VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 10 | ₹102.55 · 10 in stock | View | |
 | AON7516-VB#C22389467VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 50 | ₹89.06 · 50 in stock | View |
 | SIS444DN-T1-GE3-VB#C29779675VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 16 | ₹89.06 · 16 in stock | View |
