TIDatasheet (PDF)

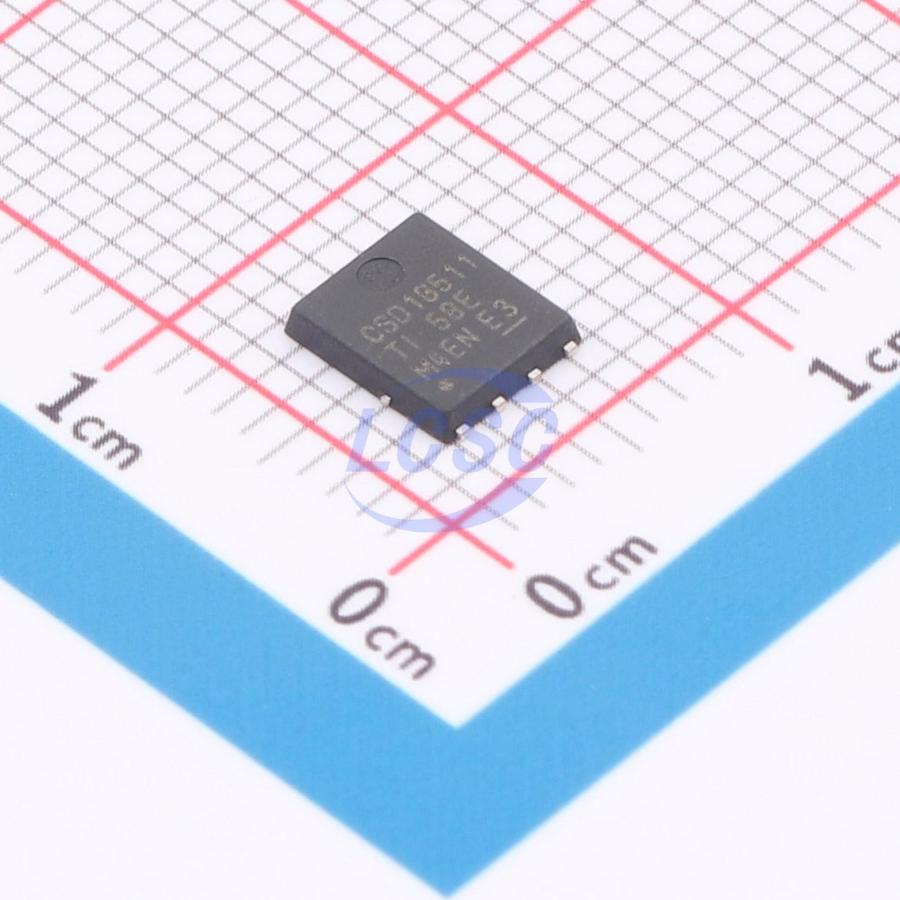

CSD18511Q5A
N-Channel 40V 100A 104W Surface Mount SON-8(5x6)
SON-8(5x6)ROHS3 CompliantActive
MOSFET N-CH 40V 159A SON-8(5x6)
- Manufacturer
- TI
- Manufacturer part #
- CSD18511Q5A
- Store part #
- C701747
- Package / case
- SON-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,271 in stock
#C701747
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹106.82 | ₹106.82 |
| 10+ | ₹85.55 | ₹855.50 |
| 30+ | ₹74.91 | ₹2,247.30 |
| 100+ | ₹64.27 | ₹6,427.00 |
| 500+ | ₹57.97 | ₹28,985.00 |
| 1,000+ | ₹54.72 | ₹54,720.00 |
1 × ₹106.82
₹106.82
excl. GST
₹126.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CSD18511Q5A
₹106.82 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 452pF
- Ciss-Input Capacitance
- 4.5nF
- Pd - Power Dissipation
- 104W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 159A
- Reverse Transfer Capacitance (Crss)
- 238pF
- RDS(on)
- 1.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 63nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.286 g
Overview
This 40V, 1.9mΩ, SON 5mm × 6mm NexFET power MOSFET is designed to minimize power loss in power conversion applications.
Applications
- DC-DC conversion
- Secondary-side synchronous rectification
- Battery motor control
Key features
- Low R<sub>DS(ON)</sub>
- Low thermal resistance
- Avalanche rated
- Logic level
- Lead-free lead finish
- RoHS compliant
- Halogen-free
- Small outline no-lead (SON) 5mm × 6mm plastic package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| CSD18511Q5AT#C2872102TI · VSONP-8(5x6) | TI | VSONP-8(5x6) | 99 | ₹166.30 · 99 in stock | View | |
| HSBA4018#C42376802HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 2,275 | ₹24.21 · 2,275 in stock | View | |
 | LWT4T015AD5#C54221188Lewa Micro · PDFN-8L(5x6) | Lewa Micro | PDFN-8L(5x6) | 4,997 | ₹94.93 · 4,997 in stock | View |
 | LWT4T02HD5#C54221191Lewa Micro · PDFN-8L(5x6) | Lewa Micro | PDFN-8L(5x6) | 4,659 | ₹66.35 · 4,659 in stock | View |
 | NTMFS5C628NLT1G-VB#C55251731VBsemi Elec · DFN-8(5x6) | VBsemi Elec | DFN-8(5x6) | 4 | ₹104.37 · 4 in stock | View |
