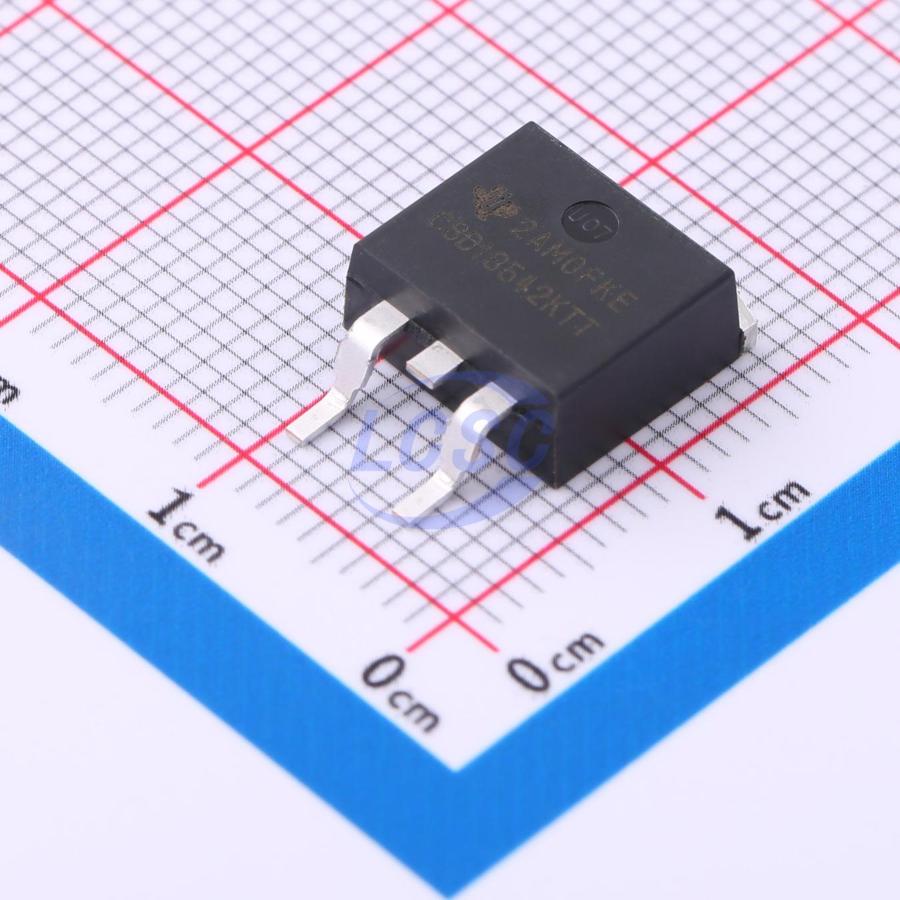

CSD18542KTT
N-Channel 60V 200A 250W Surface Mount TO-263-3
TO-263-3ROHS3 CompliantActive
MOSFET N-CH 60V 200A TO-263-3
- Manufacturer
- TI
- Manufacturer part #
- CSD18542KTT
- Store part #
- C2867559
- Package / case
- TO-263-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
217 in stock
#C2867559
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹269.57 | ₹269.57 |
| 10+ | ₹238.75 | ₹2,387.50 |
| 30+ | ₹216.83 | ₹6,504.90 |
| 100+ | ₹196.86 | ₹19,686.00 |
| 500+ | ₹187.54 | ₹93,770.00 |
| 1,000+ | ₹183.84 | ₹1,83,840.00 |
1 × ₹269.57
₹269.57
excl. GST
₹318.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per reel
CSD18542KTT
₹269.57 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 740pF
- Ciss-Input Capacitance
- 5.07nF
- Pd - Power Dissipation
- 250W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 200A
- Reverse Transfer Capacitance (Crss)
- 14pF
- RDS(on)
- 5.1mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 57nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.1 g
Overview
This 60V, 3.3mΩ, D2PAK (TO-263) power MOSFET is designed to significantly reduce losses in power conversion applications.
Applications
- DC-DC conversion
- Secondary-side synchronous rectifier
- Motor control
Key features
- Ultra-low Qg and Qgd
- Low thermal resistance
- Avalanche rated
- Logic level
- Lead-free lead finish
- RoHS compliant
- Halogen-free
- D2PAK plastic package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| CSD18542KTTT#C2877343TI · TO-263-3 | TI | TO-263-3 | 230 | ₹344.75 · 230 in stock | View | |
| CSD19532KTTT#C2877341TI · TO-263-3 | TI | TO-263-3 | 22 | ₹770.21 · 22 in stock | View | |
 | CSD18535KTT#C2877333TI · TO-263-3 | TI | TO-263-3 | 2 | ₹279.64 · 2 in stock | View |
 | CSD18535KTTT#C2877331TI · TO-263-3 | TI | TO-263-3 | 1 | ₹495.24 · 1 in stock | View |
 | CSD18536KTT#C2861901TI · TO-263-3 | TI | TO-263-3 | 64 | ₹756.16 · 64 in stock | View |
