VBsemi ElecDatasheet (PDF)

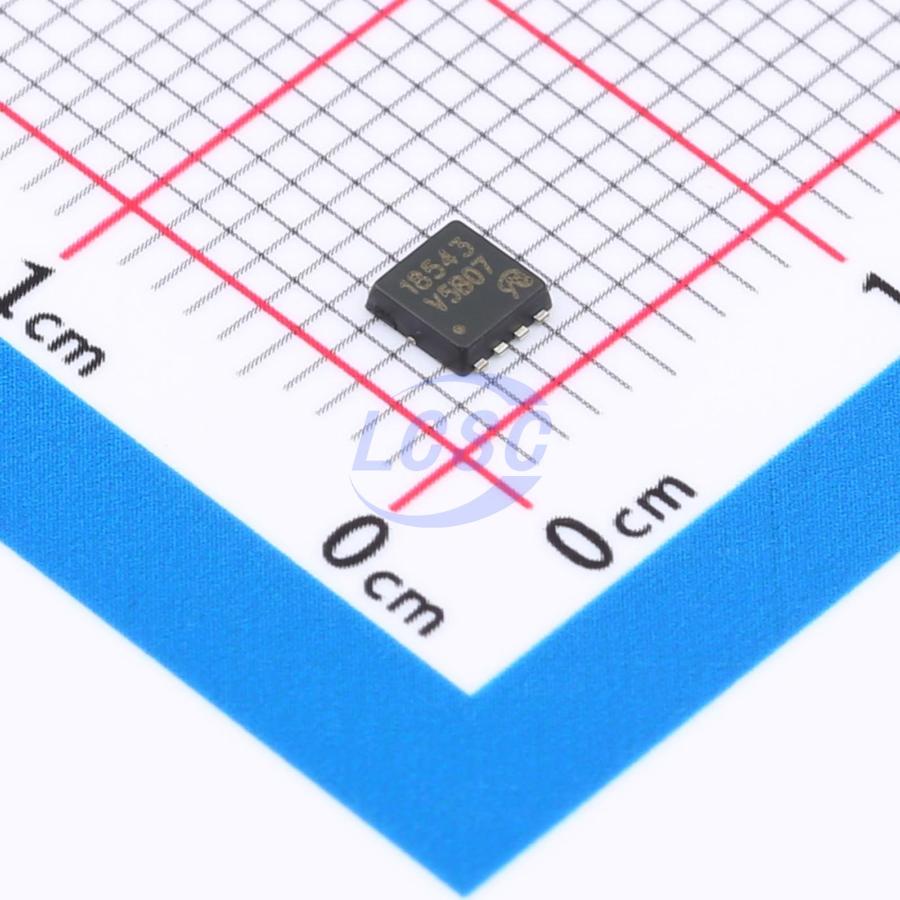

CSD18543Q3AT-VB
N-Channel 60V 15A Surface Mount DFN-8(3x3)
DFN-8(3x3)RoHSActive
MOSFET N-CH 60V 15A DFN-8(3x3)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- CSD18543Q3AT-VB
- Store part #
- C45662503
- Package / case
- DFN-8(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8 in stock
#C45662503
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹126.69 | ₹126.69 |
| 10+ | ₹104.53 | ₹1,045.30 |
| 30+ | ₹93.44 | ₹2,803.20 |
| 100+ | ₹82.36 | ₹8,236.00 |
| 500+ | ₹63.03 | ₹31,515.00 |
| 1,000+ | ₹59.55 | ₹59,550.00 |
1 × ₹126.69
₹126.69
excl. GST
₹149.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
CSD18543Q3AT-VB
₹126.69 for 1 + GST
Specifications
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 470pF
- Current - Continuous Drain(Id)
- 15A
- Ciss-Input Capacitance
- 2.65nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 13mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 70nC@0V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.036 g
Overview
Applications
- Switch Mode Power Supply (SMPS)
- Uninterruptible Power Supply
- High-Speed Power Switching
- Hard Switching and High-Frequency Circuits
Key features
- Junction temperature 175 °C
- Trench power MOSFET
- Material category: DFN 3x3 EP
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SQ7414CENW-T1_GE3-VB#C22395898VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 10 | ₹102.93 · 10 in stock | View |
 | SIS862DN-T1-GE3-VB#C22396008VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 8 | ₹123.00 · 8 in stock | View |
 | NVTFS5C673NLTAG-VB#C22396076VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 10 | ₹107.14 · 10 in stock | View |
 | NVTFS5C680NLTAG-VB#C22396077VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 10 | ₹85.92 · 10 in stock | View |
 | DMT6007LFG-7-VB#C45662504VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 50 | ₹147.17 · 50 in stock | View |
