TIDatasheet (PDF)

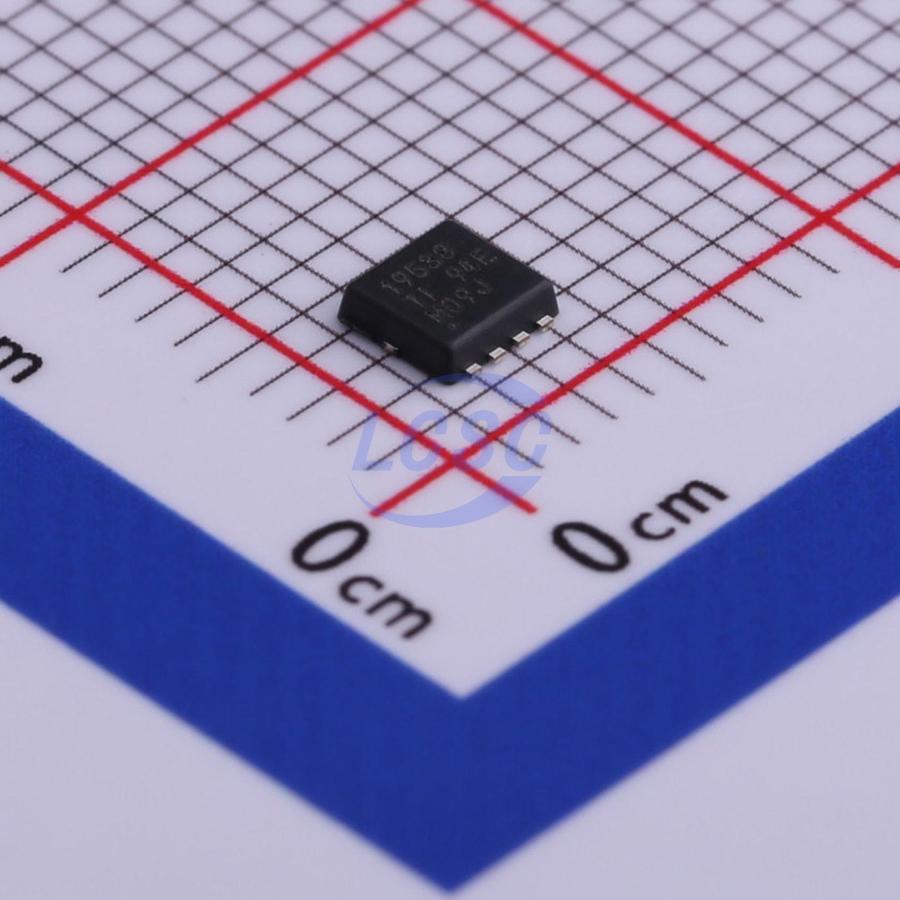

CSD19538Q3A
N-Channel 100V 15A 2.8W Surface Mount VSONP-8(3.3x3.3)
VSONP-8(3.3x3.3)ROHS3 CompliantActive
MOSFET N-CH 100V 15A VSONP-8(3.3x3.3)
- Manufacturer
- TI
- Manufacturer part #
- CSD19538Q3A
- Store part #
- C478471
- Package / case
- VSONP-8(3.3x3.3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
287 in stock
#C478471
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹163.81 | ₹163.81 |
| 10+ | ₹134.27 | ₹1,342.70 |
| 30+ | ₹117.97 | ₹3,539.10 |
| 100+ | ₹99.73 | ₹9,973.00 |
| 500+ | ₹91.47 | ₹45,735.00 |
| 1,000+ | ₹87.78 | ₹87,780.00 |
1 × ₹163.81
₹163.81
excl. GST
₹193.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CSD19538Q3A
₹163.81 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 69pF
- Ciss-Input Capacitance
- 454pF
- Pd - Power Dissipation
- 2.8W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 15A
- Reverse Transfer Capacitance (Crss)
- 16.4pF
- RDS(on)
- 49mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 4.3nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.182 g
Overview
This 100-V, 49-mΩ, SON 3.3-mm×3.3-mm NexFET power MOSFET is designed to minimize conduction losses and reduce board footprint in PoE applications.
Applications
- Power Over Ethernet (PoE)
- Power Sourcing Equipment (PSE)
- Motor Control
Key features
- Ultra-Low Qg and Qgd
- Low-Thermal Resistance
- Avalanche Rated
- Lead Free
- RoHS Compliant
- Halogen Free
- SON 3.3-mm×3.3-mm Plastic Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WSD14N10DN33#C719096Winsok Semicon · DFN3X3-8L | Winsok Semicon | DFN3X3-8L | 7,020 | ₹41.90 · 7,020 in stock | View |
 | CSD19538Q3AT#C2861556TI · VSONP-8(3.3x3.3) | TI | VSONP-8(3.3x3.3) | 221 | ₹164.36 · 221 in stock | View |
 | AON7254#C131418AOS · DFN-8(3.3x3.3) | AOS | DFN-8(3.3x3.3) | 23,600 | ₹113.87 · 23,600 in stock | View |
 | CMSC045N15#C41410548Cmos · DFN-8(3.3x3.3) | Cmos | DFN-8(3.3x3.3) | 5,233 | ₹57.92 · 5,233 in stock | View |
 | CSD19537Q3T#C134143TI · VSONP-8(3.3x3.3) | TI | VSONP-8(3.3x3.3) | 465 | ₹296.29 · 465 in stock | View |
