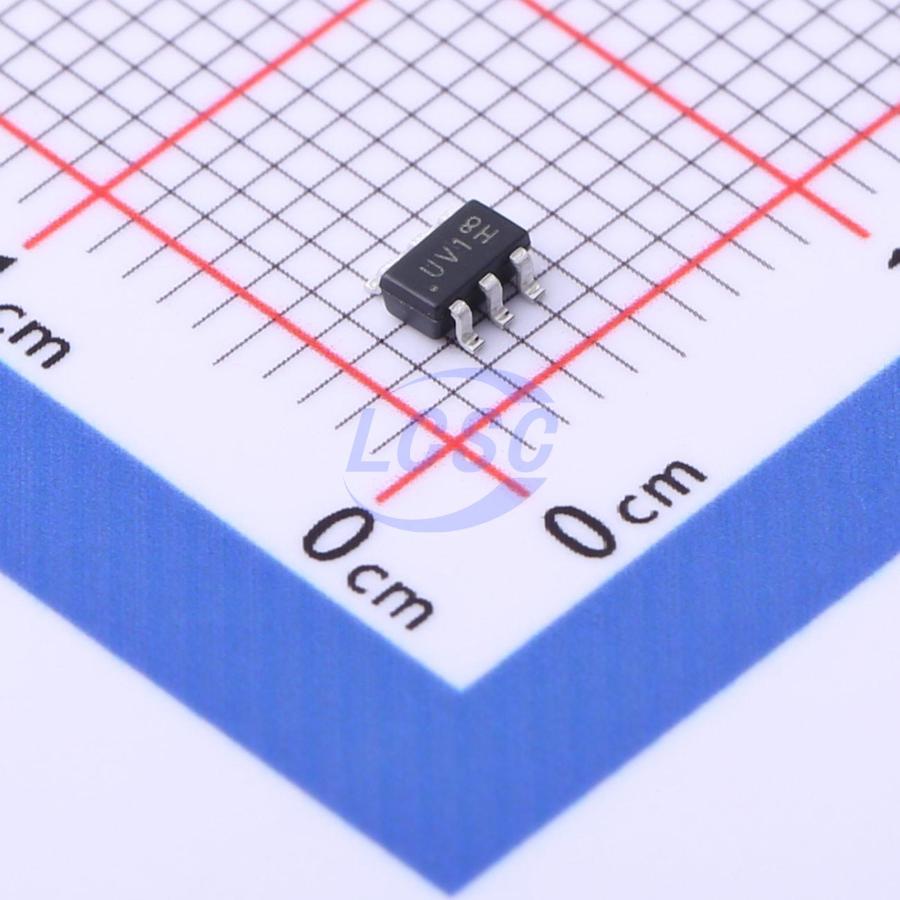

DIODES

D1213A-02SO-7

10VC Clamp 5A@200us Ipp ESD DIODE SOT-26

SOT-26ROHS3 CompliantActive

ESD DIODE 10VC SOT-26

Manufacturer: DIODES
Manufacturer part #: D1213A-02SO-7
Store part #: C2759895
Package / case: SOT-26
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,175 in stock

#C2759895

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹29.86	₹149.30
50+	₹24.69	₹1,234.50
150+	₹22.46	₹3,369.00
500+	₹19.70	₹9,850.00
3,000+	₹18.47	₹55,410.00
6,000+	₹17.74	₹1,06,440.00

Quantity (min 5, multiples of 5)

5 × ₹29.86

₹149.30

excl. GST

₹176.17 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

D1213A-02SO-7

₹149.30 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 10V
Operating Temperature: -65℃~+150℃
Peak Pulse Current (Ipp): 5A
Number of Channels: 2
Voltage - Breakdown: 6V
type: ESD
Polarity: Unidirectional
Reverse Leakage Current (Ir): 100nA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.043 g

Overview

Key features

IEC 61000 - 4 - 2 (ESD): Air - ±15kV, Contact - ±8kV
2 Channels of ESD Protection
Low Channel Input Capacitance of 0.85pF Typical
Totally Lead - Free & Fully RoHS Compliant
Halogen and Antimony Free. "Green" Device
Qualified to AEC - Q101 Standards for High Reliability
