TECH PUBLICDatasheet (PDF)

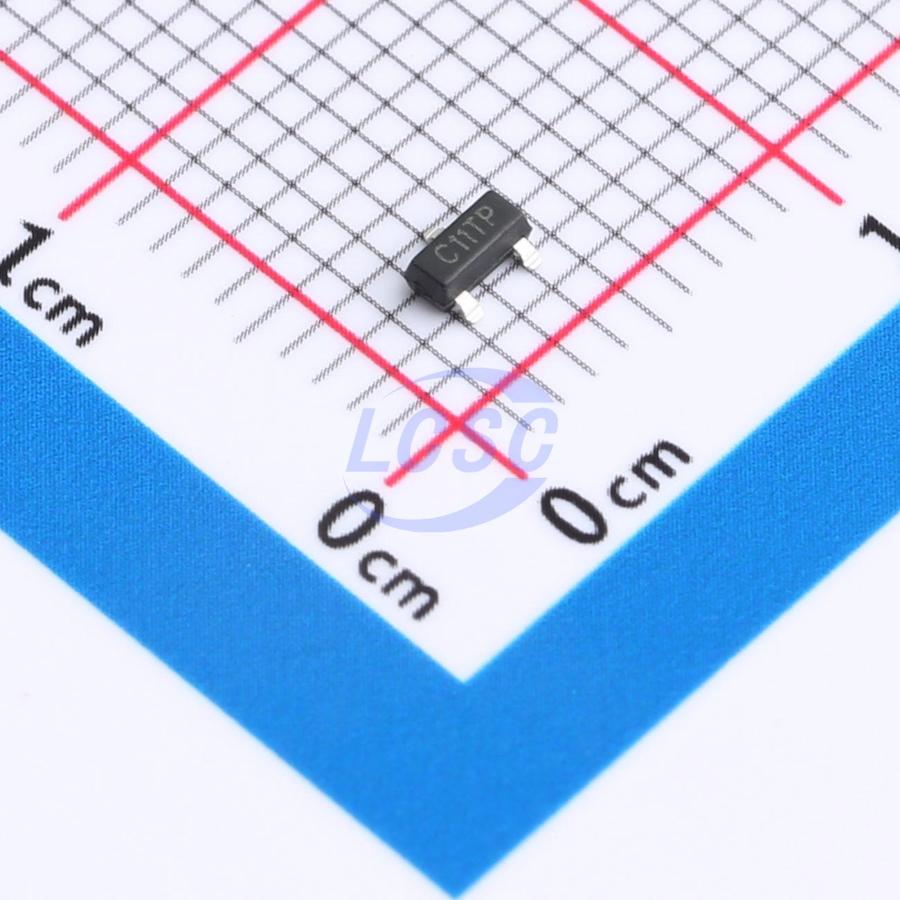

D1213A-02SOL-TP
23VC Clamp 4A@8/20us Ipp SOT-23-3
SOT-23-3RoHSActive
3.3VWM 23VC SOT-23-3
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- D1213A-02SOL-TP
- Store part #
- C47117523
- Package / case
- SOT-23-3
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,910 in stock
#C47117523
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.84 | ₹88.40 |
| 100+ | ₹7.12 | ₹712.00 |
| 300+ | ₹6.26 | ₹1,878.00 |
| 3,000+ | ₹5.61 | ₹16,830.00 |
| 6,000+ | ₹5.09 | ₹30,540.00 |
| 9,000+ | ₹4.84 | ₹43,560.00 |
10 × ₹8.84
₹88.40
excl. GST
₹104.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
D1213A-02SOL-TP
₹88.40 for 10 + GST
Specifications
- Clamping Voltage
- 23V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Voltage - Breakdown
- 6V
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
Applications
- Cellular Handsets and Accessories
- Notebooks and Handhelds
- Portable Instrumentation
- Set Top Box
- Industrial Controls
Key features
- Ultra low capacitance: 0.35pF typical
- Ultra low leakage: nA level
- Low operating voltage: 3.3V
- Low clamping voltage
- 2-pin leadless package
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV
- IEC61000-4-5 (Lightning) 4A (8/20μs)
- RoHS Compliant Lead Finish: NiPdAu
