DIODESDatasheet (PDF)

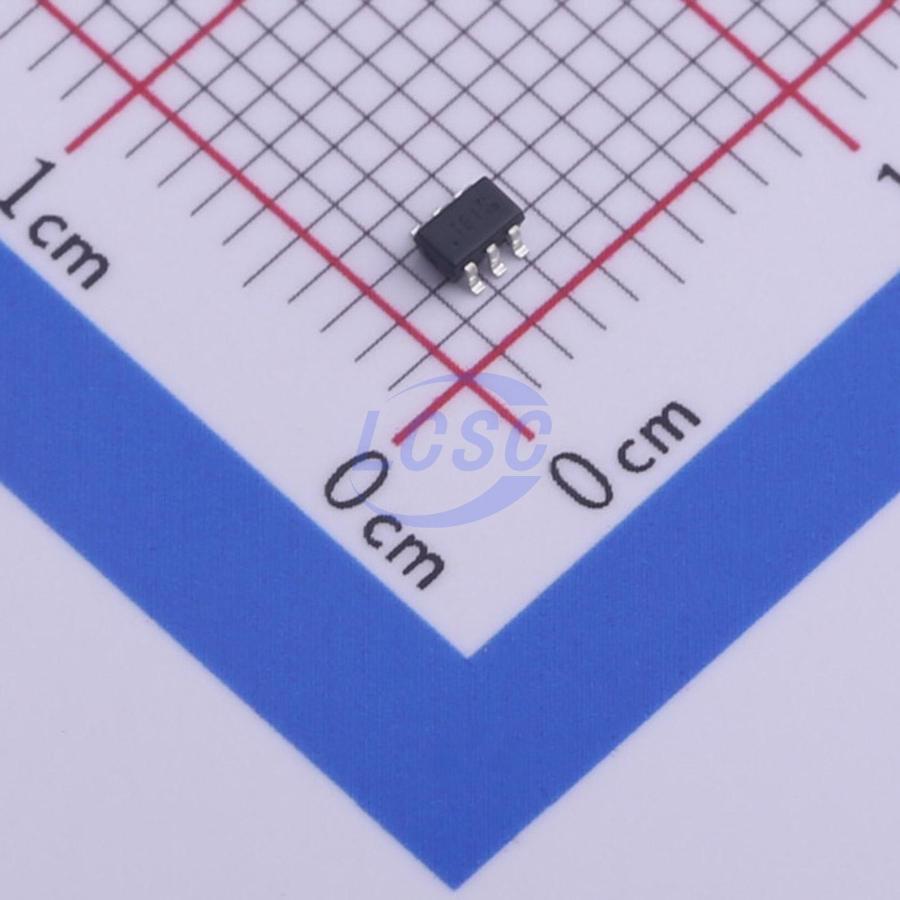

D1213A-04S-7
10VC Clamp 1A@8/20us Ipp ESD DIODE SOT-363
SOT-363ROHS3 CompliantActive
ESD DIODE 3.3VWM 10VC SOT-363
- Manufacturer
- DIODES
- Manufacturer part #
- D1213A-04S-7
- Store part #
- C460587
- Package / case
- SOT-363
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,001 in stock
#C460587
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.12 | ₹71.12 |
| 10+ | ₹56.81 | ₹568.10 |
| 30+ | ₹50.53 | ₹1,515.90 |
| 100+ | ₹42.93 | ₹4,293.00 |
| 500+ | ₹39.47 | ₹19,735.00 |
| 1,000+ | ₹37.30 | ₹37,300.00 |
1 × ₹71.12
₹71.12
excl. GST
₹83.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
D1213A-04S-7
₹71.12 for 1 + GST
Specifications
- Clamping Voltage
- 10V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 1A@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.016 g
Overview
Key features
- IEC 61000 - 4 - 2 (ESD): Air ±15 kV, Contact ±8 kV
- 4 Channels of ESD Protection
- Low Channel Input Capacitance of 0.85 pF Typical
- Totally Lead - Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- This part is qualified to JEDEC standards (as references in AEC - Q101) for High Reliability
