DIODESDatasheet (PDF)

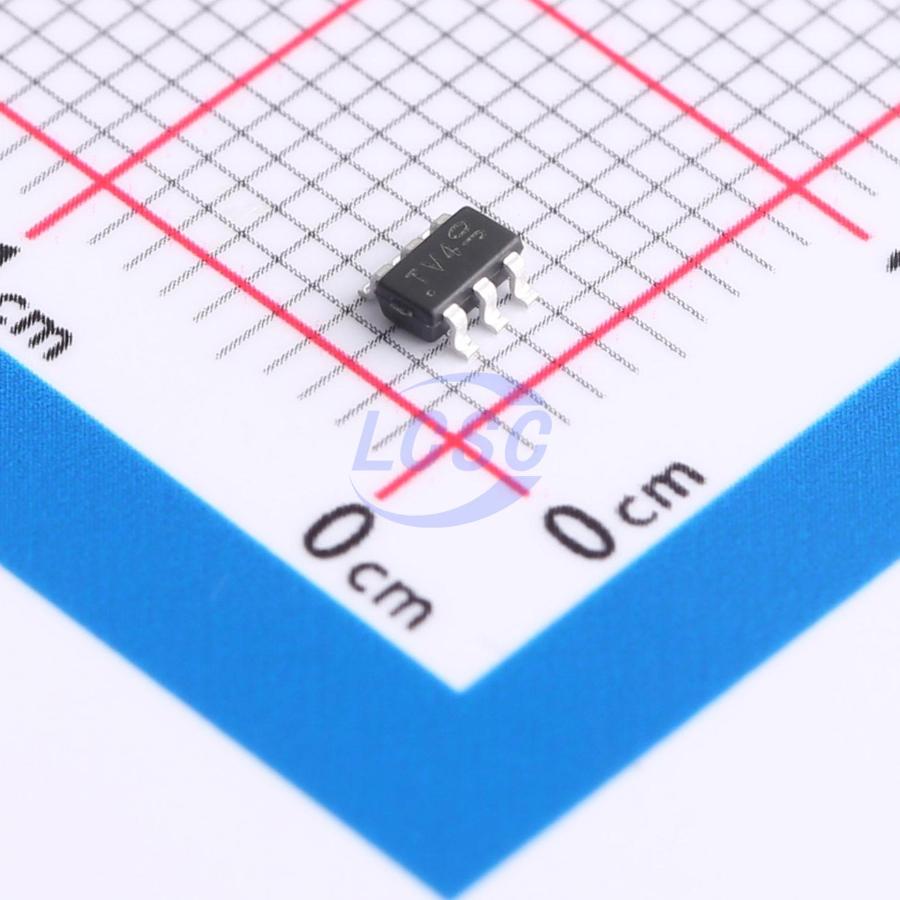

D1213A-04SO-7
10VC -1.7VC Clamp 5A@8/20us Ipp ESD DIODE SOT-26
SOT-26ROHS3 CompliantActive
ESD DIODE 3.3VWM 10VC -1.7VC SOT-26
- Manufacturer
- DIODES
- Manufacturer part #
- D1213A-04SO-7
- Store part #
- C1973108
- Package / case
- SOT-26
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
444 in stock
#C1973108
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹31.18 | ₹31.18 |
| 10+ | ₹30.31 | ₹303.10 |
| 30+ | ₹29.87 | ₹896.10 |
| 100+ | ₹29.44 | ₹2,944.00 |
1 × ₹31.18
₹31.18
excl. GST
₹36.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
D1213A-04SO-7
₹31.18 for 1 + GST
Specifications
- Clamping Voltage
- 10V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.044 g
Overview
Key features
- IEC 61000-4-2 (ESD): Air – ±15kV, Contact – ±8kV
- 4 Channels of ESD protection Low Channel Input Capacitance of 0.85pF Typical
- Typically Used at High Speed Ports such as USB 2.0, IEEE1394, Serial ATA, DVI, HDMI, PCI
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPESD0514S6#C708746TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 3,100 | ₹9.34 · 3,100 in stock | View |
