DIODESDatasheet (PDF)

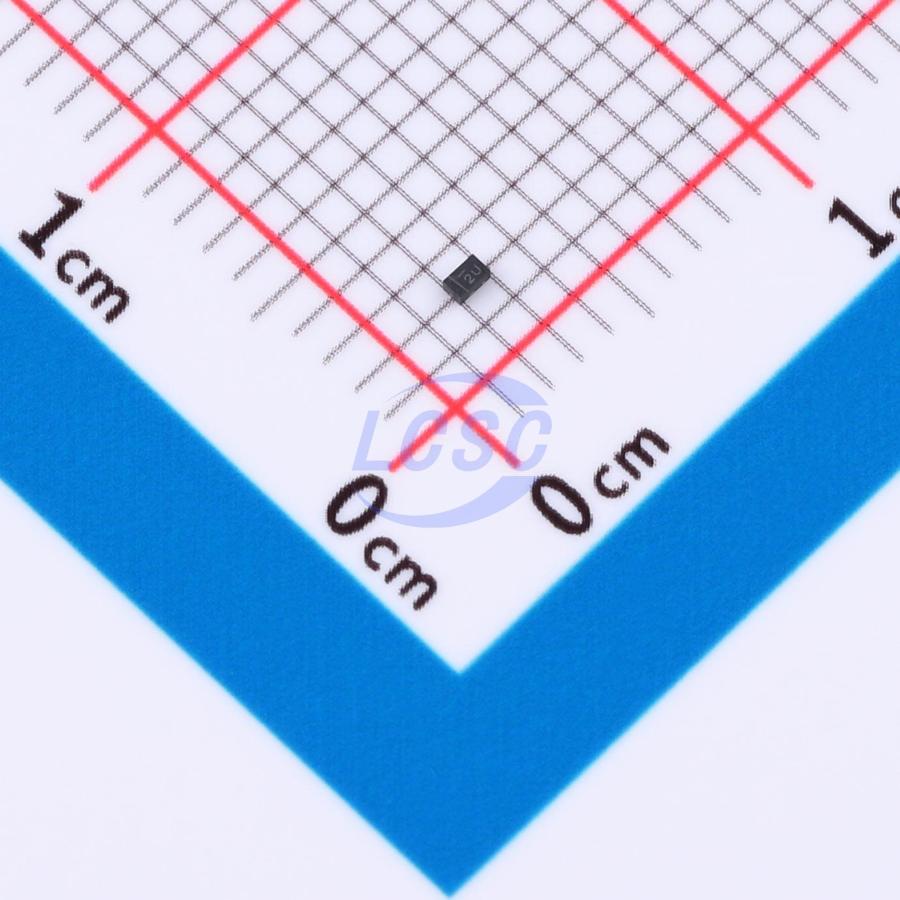

D12V0HA1U2LPQ-7B
20VC Clamp 25A@8/20us Ipp TVS DIODE X1-DFN1006-2
X1-DFN1006-2ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- D12V0HA1U2LPQ-7B
- Store part #
- C19949173
- Package / case
- X1-DFN1006-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
345 in stock
#C19949173
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.21 | ₹156.05 |
| 50+ | ₹24.91 | ₹1,245.50 |
| 150+ | ₹22.21 | ₹3,331.50 |
| 500+ | ₹18.84 | ₹9,420.00 |
| 2,500+ | ₹17.34 | ₹43,350.00 |
| 5,000+ | ₹16.44 | ₹82,200.00 |
5 × ₹31.21
₹156.05
excl. GST
₹184.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
D12V0HA1U2LPQ-7B
₹156.05 for 5 + GST
Specifications
- Clamping Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 25A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 500W@8/20us
- Voltage - Breakdown
- 16.5V
- Number of Channels
- 1
- type
- TVS
- Reverse Leakage Current (Ir)
- 20nA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
This new generation TVS is designed to protect sensitive electronics from the damage due to ESD and Surge. The combination of small size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras, and MP3 players.
Applications
- Cellular handsets
- Portable electronics
- Computers and peripherals
Key features
- Low Profile Package (0.50 mm Typical) and Ultra-Small PCB Footprint Area (1.1 mm×0.7 mm Max) Suitable for Compact Portable Electronics
- One Channel of ESD and Surge Protection
- Provides ESD Protection per IEC 61000 - 4 - 2 Standard: Air ±30 kV, Contact ±30 kV
- Provides Surge and Lightning Protection per IEC 61000 - 4 - 5 Standard: IPP Max 25A
- Totally Lead - Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- The DIODESTM D12V0HA1U2LPQ is suitable for automotive applications requiring specific change control; this part is AEC - Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities.
