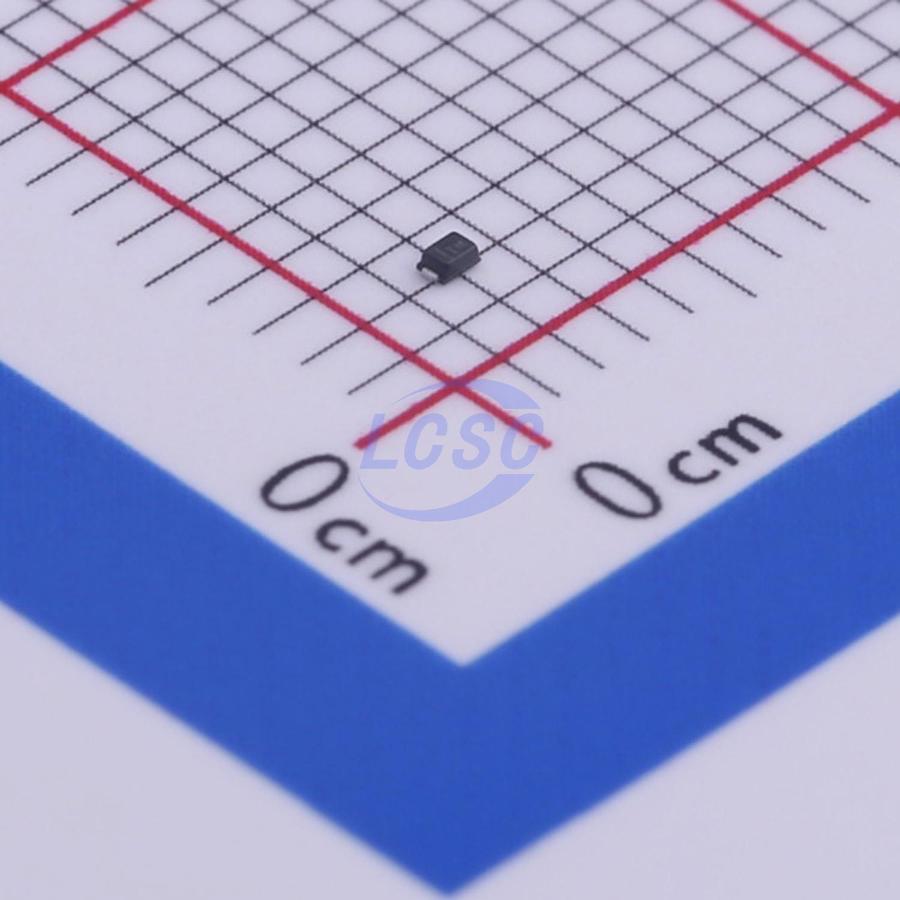

DIODES

D12V0M1U2S9-7

25VC Clamp 4A@8/20us Ipp TVS DIODE SOD-923

SOD-923ROHS3 CompliantActive

TVS DIODE 12VWM 25VC SOD-923

Manufacturer: DIODES
Manufacturer part #: D12V0M1U2S9-7
Store part #: C445497
Package / case: SOD-923
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

370 in stock

#C445497

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
10+	₹5.48	₹54.80
100+	₹5.36	₹536.00
300+	₹5.28	₹1,584.00
1,000+	₹5.20	₹5,200.00

Quantity (min 10, multiples of 10)

10 × ₹5.48

₹54.80

excl. GST

₹64.66 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 10,000 per reel

D12V0M1U2S9-7

₹54.80 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 25V
Operating Temperature: -65℃~+150℃
Peak Pulse Current (Ipp): 4A@8/20us
Peak Pulse Power Dissipation (Ppp): 100W
Number of Channels: 1
Voltage - Breakdown: 13V
type: TVS
Reverse Leakage Current (Ir): 1nA
Reverse Stand-Off Voltage (Vrwm): 12V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 10,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.005 g

Overview

This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras and MP3 players.

Applications

Cellular Handsets
Portable Electronics
Computers and Peripheral

Key features

Provides ESD Protection per IEC 61000-4-2 Standard: Air ±30kV, Contact ±30kV
1 Channel of ESD Protection
Low Channel Input Capacitance
Totally Lead-Free & Fully RoHS Compliant, Halogen and Antimony Free. “Green” Device
