DIODESDatasheet (PDF)

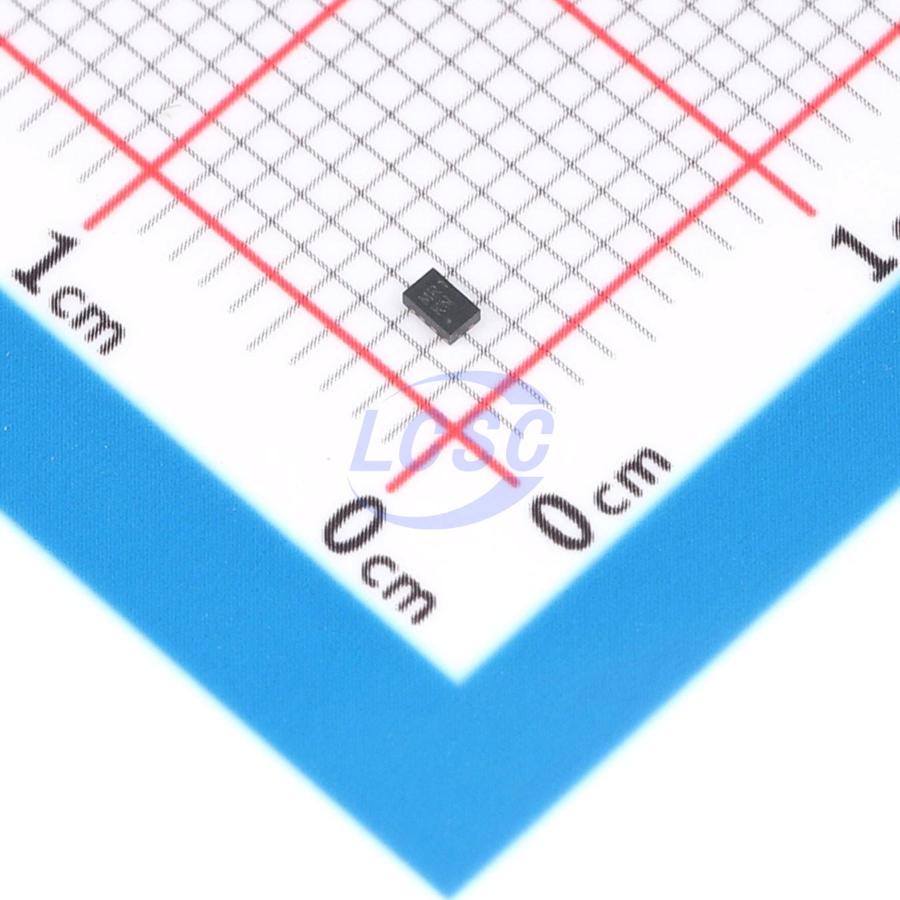

D14V0H1U2LP1610-7
23.5VC Clamp 50A@8/20us Ipp ESD DIODE DFN1610-2
DFN1610-2ROHS3 CompliantActive
ESD DIODE 14VWM 23.5VC DFN1610-2
- Manufacturer
- DIODES
- Manufacturer part #
- D14V0H1U2LP1610-7
- Store part #
- C1974680
- Package / case
- DFN1610-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C1974680
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.70 | ₹48.50 |
| 50+ | ₹9.49 | ₹474.50 |
| 150+ | ₹9.34 | ₹1,401.00 |
| 500+ | ₹9.21 | ₹4,605.00 |
5 × ₹9.70
₹48.50
excl. GST
₹57.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
D14V0H1U2LP1610-7
₹48.50 for 5 + GST
Specifications
- Clamping Voltage
- 23.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 50A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 1.12kW
- Voltage - Breakdown
- 15V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 300nA
- Reverse Stand-Off Voltage (Vrwm)
- 14V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.014 g
Overview
This next-generation TVS is designed to protect sensitive electronics from ESD damage. The combination of small size and high ESD surge capability makes it ideal for portable applications such as mobile phones, digital cameras, and MP3 players.
Applications
- Mobile phones
- Portable electronic devices
- Computers and peripherals
Key features
- ESD protection per IEC 61000-4-2: air discharge ±30kV, contact discharge ±30kV
- Single-channel ESD protection
- Low channel input capacitance
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free, "green" device
