DIODESDatasheet (PDF)

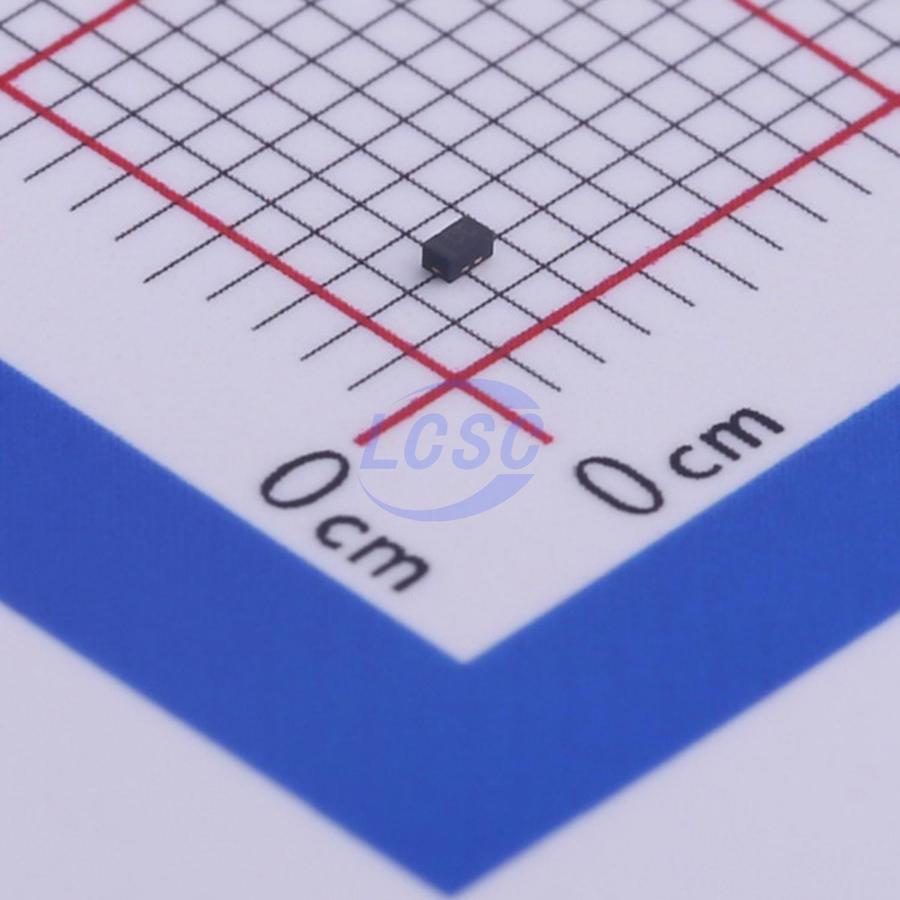

D20V0L1B2LP-7B
34VC Clamp 2A@8/20us Ipp TVS DIODE X1-DFN1006-2
X1-DFN1006-2ROHS3 CompliantActive
TVS DIODE 20VWM 34VC X1-DFN1006-2
- Manufacturer
- DIODES
- Manufacturer part #
- D20V0L1B2LP-7B
- Store part #
- C445555
- Package / case
- X1-DFN1006-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,760 in stock
#C445555
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.64 | ₹193.20 |
| 50+ | ₹32.73 | ₹1,636.50 |
| 150+ | ₹30.19 | ₹4,528.50 |
| 500+ | ₹27.03 | ₹13,515.00 |
| 2,500+ | ₹25.61 | ₹64,025.00 |
| 5,000+ | ₹24.78 | ₹1,23,900.00 |
5 × ₹38.64
₹193.20
excl. GST
₹227.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
D20V0L1B2LP-7B
₹193.20 for 5 + GST
Specifications
- Clamping Voltage
- 34V
- Peak Pulse Current (Ipp)
- 2A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 68W
- Number of Channels
- 1
- Voltage - Breakdown
- 21V
- type
- TVS
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 20V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.005 g
Overview
This new generation TVS is designed to protect sensitive electronics from damage due to ESD. The combination of small-size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras, and MP3 players.
Applications
- Cellular Handsets
- Portable Electronics
- Computers and Peripherals
Key features
- Low Profile Package (0.53mm Max) and Ultra-Small PCB Footprin Area {1.08×0.68mm | Max} Suitable for Compact Portable Electronics
- Provides ESD Protection per IEC 61000 - 4 - 2 Standard: Air ±20kV, Contact ±15kV
- One Channel of ESD Protection
- Low Channel Input Capacitance
- Totally Lead - Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC - Q101 Standards for High Reliability
