DIODESDatasheet (PDF)

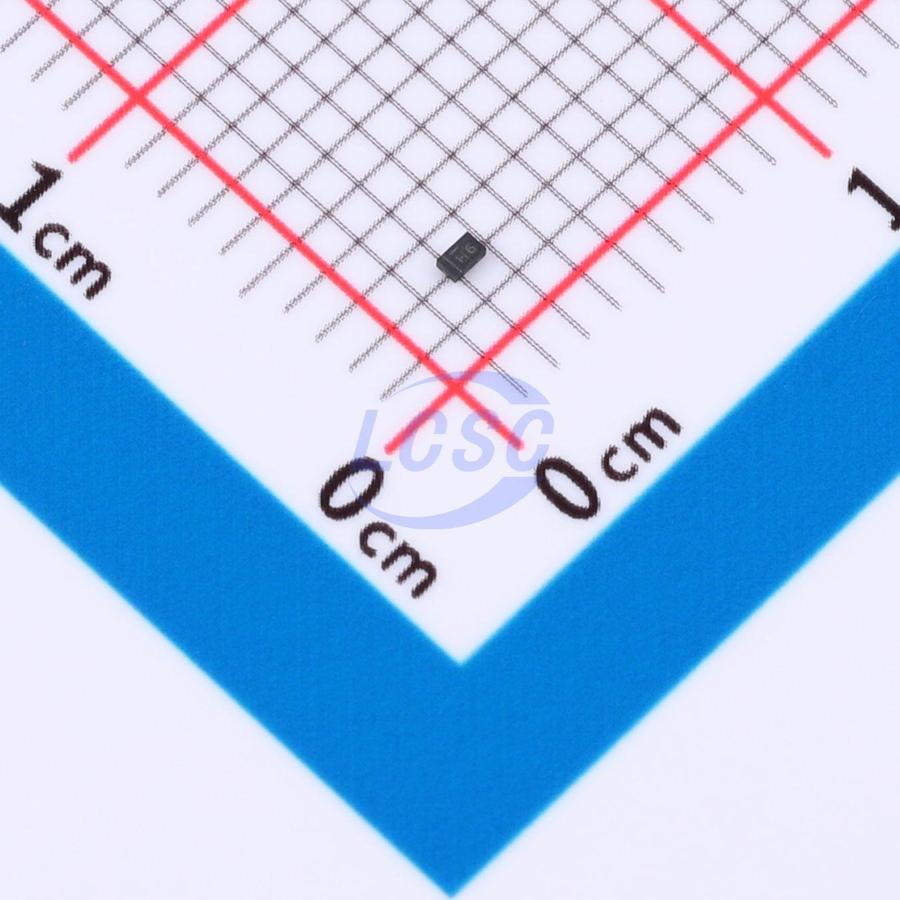

D2V5H1BS2LP4-7B
3.3VC 3.5VC 3.7VC 5.2VC 7VC Clamp 85A@8/20us Ipp TVS DIODE X2-DFN1006-2
X2-DFN1006-2ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- D2V5H1BS2LP4-7B
- Store part #
- C19949184
- Package / case
- X2-DFN1006-2
- Category
- TVS Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
125 in stock
#C19949184
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.57 | ₹217.85 |
| 50+ | ₹42.96 | ₹2,148.00 |
| 150+ | ₹42.55 | ₹6,382.50 |
| 500+ | ₹42.14 | ₹21,070.00 |
5 × ₹43.57
₹217.85
excl. GST
₹257.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per bag
D2V5H1BS2LP4-7B
₹217.85 for 5 + GST
Specifications
- Clamping Voltage
- 3.3V;3.5V;3.7V;5.2V;7V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 85A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 595W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 2.6V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 2.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 10,000 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
This next-generation TVS is designed to protect sensitive electronics from damage caused by ESD and surge events. The combination of small size and high ESD surge capability makes it ideal for portable applications such as mobile phones, digital cameras, and MP3 players.
Applications
- Mobile phones
- Portable electronic devices
- Computers and peripherals
Key features
- Low-profile package (0.4mm max) with ultra-small PCB footprint for compact portable electronics
- Single-channel ESD and surge protection
- ESD protection per IEC 61000-4-2: air discharge ±30kV, contact discharge ±30kV
- Surge and lightning protection per IEC 61000-4-5: peak pulse current 85A max
- Fully lead-free and RoHS compliant
- Halogen- and antimony-free, "green" device
