DIODESDatasheet (PDF)

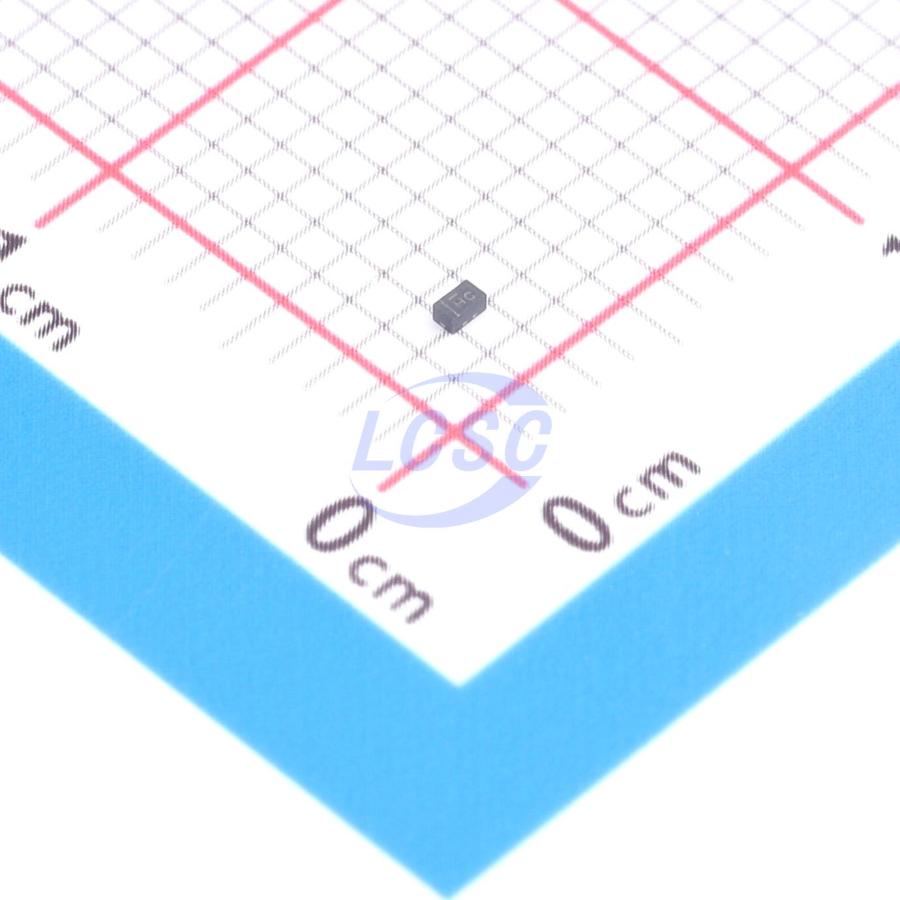

D36V0L1B2LP-7B
60VC Clamp TVS DIODE X1-DFN1006-2
X1-DFN1006-2ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- D36V0L1B2LP-7B
- Store part #
- C6010562
- Package / case
- X1-DFN1006-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C6010562
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.39 | ₹166.95 |
| 50+ | ₹33.00 | ₹1,650.00 |
| 150+ | ₹32.73 | ₹4,909.50 |
| 500+ | ₹32.47 | ₹16,235.00 |
5 × ₹33.39
₹166.95
excl. GST
₹197.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
D36V0L1B2LP-7B
₹166.95 for 5 + GST
Specifications
- Clamping Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 2A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 120W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 40V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.088 g
Overview
This new generation TVS is designed to protect sensitive electronics from the damage due to ESD and surge. The combination of small size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras, and MP3 players.
Applications
- Cellular Handsets
- Portable Electronics
- Computers and Peripheral
Key features
- Low Profile Package (0.50mm Typical) and Ultra-Small PCB Footprint Area (1.1mm × 0.7mm Max)
- Suitable for Compact Portable Electronics
- Provides ESD Protection per IEC 61000 - 4 - 2 Standard: Air ±25kV, Contact ±25kV
- Provides Surge and Lightning Protection per IEC 61000 - 4 - 5 Standard: IPP Max 2A
- One Channel of ESD and Surge Protection
- Totally Lead - Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
