DIODES

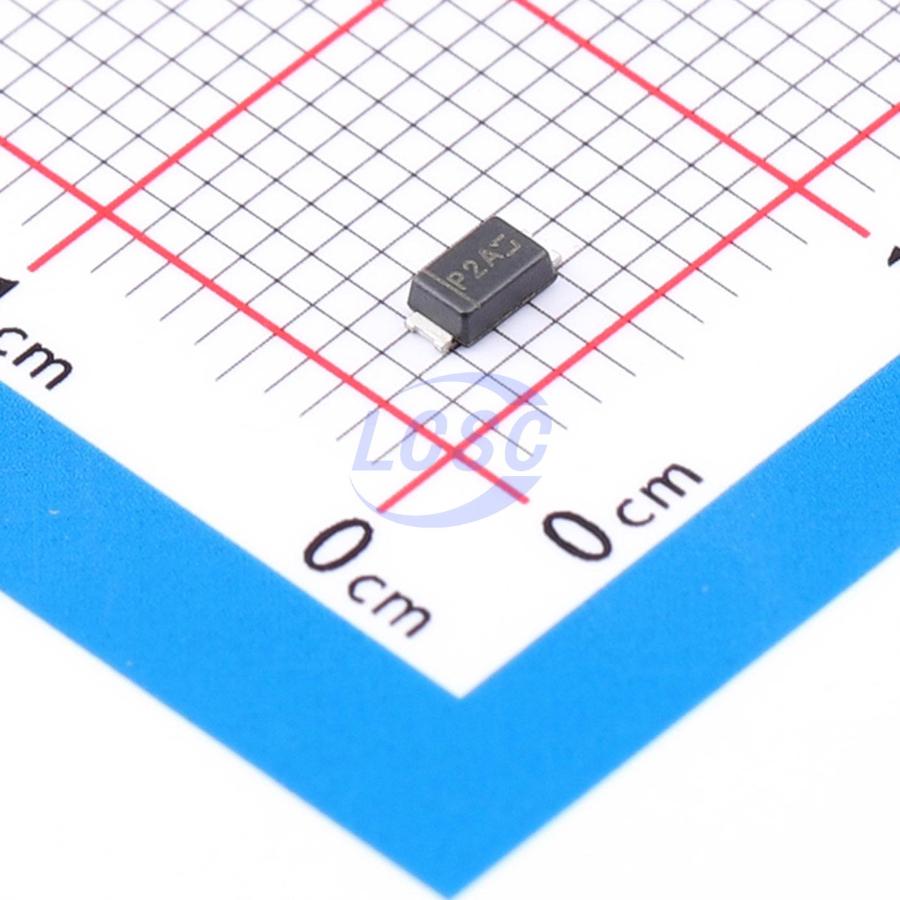

D3V3AP2WF-7

8VC Clamp TVS DIODE SOD-123F

SOD-123FROHS CompliantActive

Manufacturer: DIODES
Manufacturer part #: D3V3AP2WF-7
Store part #: C5244617
Package / case: SOD-123F
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

225 in stock

#C5244617

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
5+	₹28.19	₹140.95
50+	₹23.60	₹1,180.00
150+	₹21.64	₹3,246.00
500+	₹19.18	₹9,590.00
3,000+	₹18.10	₹54,300.00
6,000+	₹17.44	₹1,04,640.00

Quantity (min 5, multiples of 5)

5 × ₹28.19

₹140.95

excl. GST

₹166.32 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

D3V3AP2WF-7

₹140.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 8V
Operating Temperature: -55℃~+150℃
Peak Pulse Current (Ipp): 28.2A
Peak Pulse Power Dissipation (Ppp): 1.125kW@8/20us
Voltage - Breakdown: 5.2V
type: TVS
Reverse Leakage Current (Ir): 1mA
Polarity: Unidirectional
Reverse Stand-Off Voltage (Vrwm): 3.3V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.132 g

Overview

This new generation TVS is designed for transient overvoltage protection. The combination of small size and high ESD surge capability makes it ideal for use in power management and battery contact.

Applications

Power Management
Battery Contacts

Key features

225W Peak Pulse Power Dissipation (10μs×1000μs Waveform)
3.3V Standoff Voltage Provides ESD Protection per IEC 61000 - 4 - 2 Standard: Air ±30kV, Contact ±30kV
Excellent Clamping Capability
Lead - Free Finish; RoHS Compliant
Halogen and Antimony Free. “Green” Device
