TECH PUBLICDatasheet (PDF)

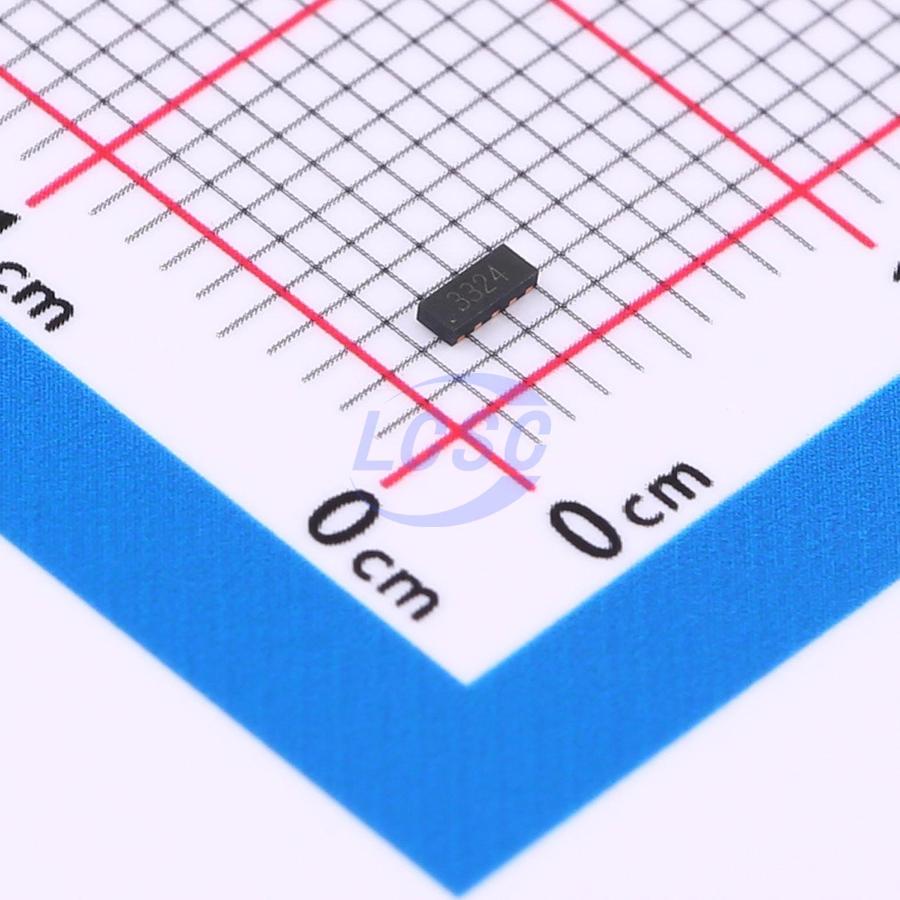

D3V3F4U10LP-TP
nan
DFN2510-10RoHSActive
3.3VWM 15VC DFN2510-10
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- D3V3F4U10LP-TP
- Store part #
- C46472767
- Package / case
- DFN2510-10
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,750 in stock
#C46472767
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.29 | ₹56.45 |
| 50+ | ₹8.98 | ₹449.00 |
| 150+ | ₹7.85 | ₹1,177.50 |
| 500+ | ₹6.99 | ₹3,495.00 |
| 3,000+ | ₹6.30 | ₹18,900.00 |
| 6,000+ | ₹5.94 | ₹35,640.00 |
5 × ₹11.29
₹56.45
excl. GST
₹66.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
D3V3F4U10LP-TP
₹56.45 for 5 + GST
Specifications
- Clamping Voltage
- 15V
- Peak Pulse Power Dissipation (Ppp)
- 70W@8/20us
- Voltage - Breakdown
- 4V
- Number of Channels
- Four channels
- Reverse Leakage Current (Ir)
- 60nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Applications
- High Definition Multimedia Interface (HDMI)
- Digital Visual Interface (DVI)
- Unified Display Interface (UDI)
- MDDI Ports PCI Express
- Serial ATA
Key features
- Ultra low capacitance: 0.3 pF typical (I/O to I/O)
- Ultra low leakage: nA level
- Low operating voltage: 3.3V
- Low clamping voltage
- Up to 4 data lines and one power line protects
- Complies with following standards: - IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV -IEC61000-4-4 (EFT) 40A (5/50ns) - IEC61000-4-5 (Lightning) : 4 A(8/20μs)
- ROHS Compliant
