DIODESDatasheet (PDF)

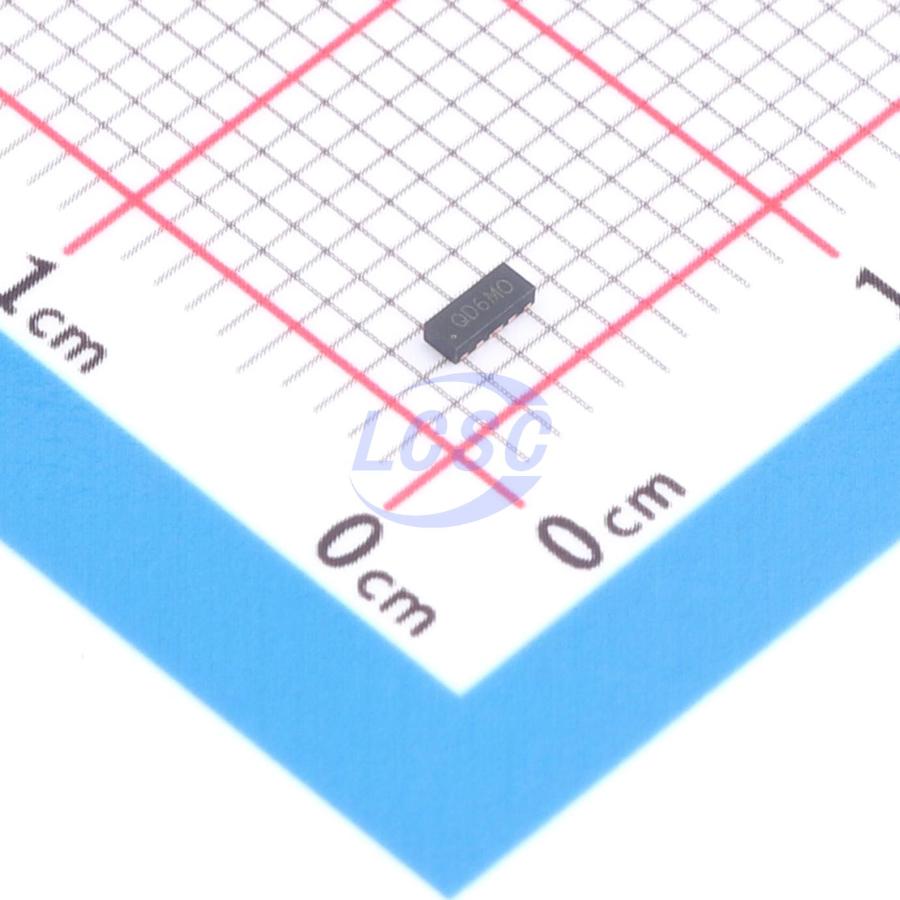

D3V3F4U10LPQ-7
3.5VC Clamp TVS DIODE UDFN2510-10
UDFN2510-10ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- D3V3F4U10LPQ-7
- Store part #
- C6019119
- Package / case
- UDFN2510-10
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
271 in stock
#C6019119
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹90.53 | ₹90.53 |
| 10+ | ₹72.08 | ₹720.80 |
| 30+ | ₹62.96 | ₹1,888.80 |
| 100+ | ₹53.62 | ₹5,362.00 |
| 500+ | ₹48.20 | ₹24,100.00 |
| 1,000+ | ₹45.38 | ₹45,380.00 |
1 × ₹90.53
₹90.53
excl. GST
₹106.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
D3V3F4U10LPQ-7
₹90.53 for 1 + GST
Specifications
- Clamping Voltage
- 3.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 30W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 5.5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.055 g
Overview
Applications
- Typically used at high-speed ports such as USB 3.0, USB 3.1, serial ATA, display ports.
Key features
- The D3V3F4U10LPQ is a high-performance device suitable for protecting four high speed I/Os. These devices are assembled in UDFN2510-10 package and have high ESD surge capability, low ESD clamping voltage and ultra-low capacitance.
- Clamping Voltage: 5V at 16A IEC61000-4-2
- IEC61000-4-2 (ESD): Air — ±12kV, Contact — ±12kV
- IEC61000-4-5 (Lightning): 5A (8/20µs)
- 4 Channels of ESD Protection
- Ultra-Low Chanel Input Capacitance of 0.5pF Typical
- TLP Dynamic Resistance: 0.25Ω
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- The D3V3F4U10LPQ is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities.
