DIODESDatasheet (PDF)

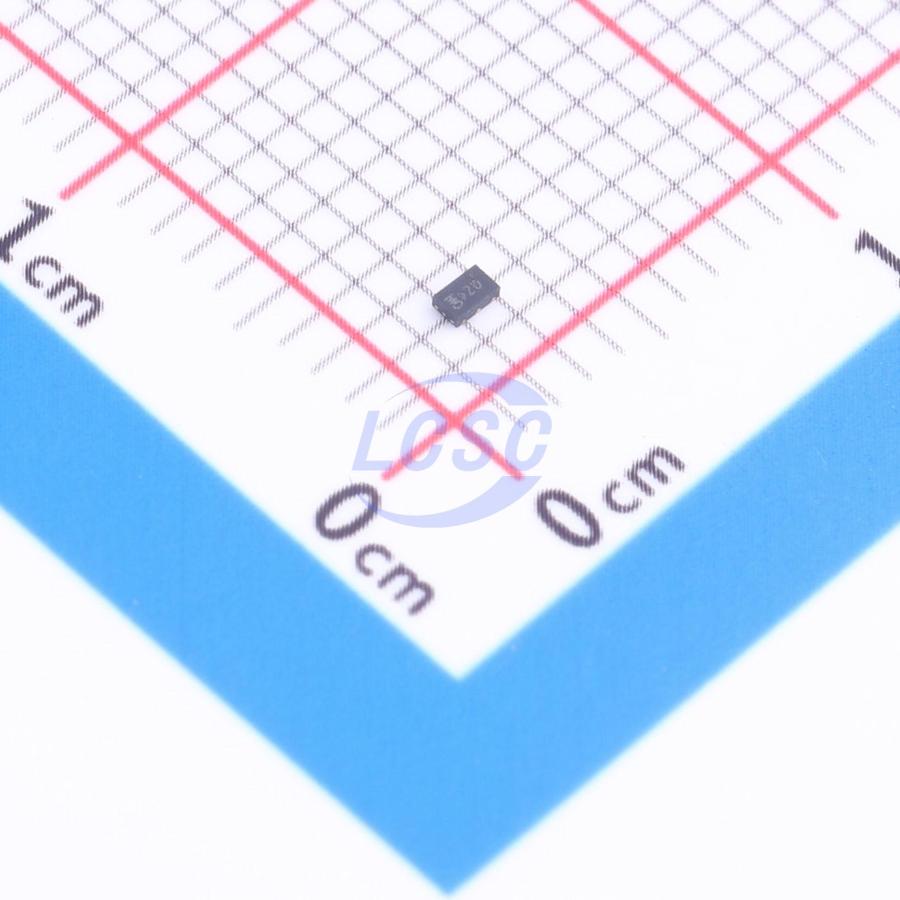

D3V3L4BS4LP1308-7
10.5V 11A@8/20us 6.8V 3.3V X1-DFN1308-6 TVS Diodes RoHS
X1-DFN1308-6ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- D3V3L4BS4LP1308-7
- Store part #
- C19723582
- Package / case
- X1-DFN1308-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
75 in stock
#C19723582
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.19 | ₹110.95 |
| 50+ | ₹21.67 | ₹1,083.50 |
| 150+ | ₹21.31 | ₹3,196.50 |
| 500+ | ₹20.97 | ₹10,485.00 |
5 × ₹22.19
₹110.95
excl. GST
₹130.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
D3V3L4BS4LP1308-7
₹110.95 for 5 + GST
Specifications
- Clamping Voltage
- 10.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 11A@8/20us
- Voltage - Breakdown
- 6.8V
- Number of Channels
- Four channels
- type
- TVS
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.152 g
Overview
This next-generation TVS is designed to protect sensitive electronic equipment from damage caused by ESD and surges. The combination of small form factor and high ESD surge capability makes it ideal for portable applications such as mobile phones, digital cameras, and MP3 players.
Applications
- Mobile phones
- Portable electronic devices
- Computers and peripherals
Key features
- 4-channel ESD and surge protection
- ESD protection per IEC 61000-4-2: air discharge ±30kV, contact discharge ±30kV
- Surge and lightning strike protection per IEC 61000-4-5: peak pulse current up to 11A
- Fully lead-free and RoHS compliant
- Halogen- and antimony-free "green" device
