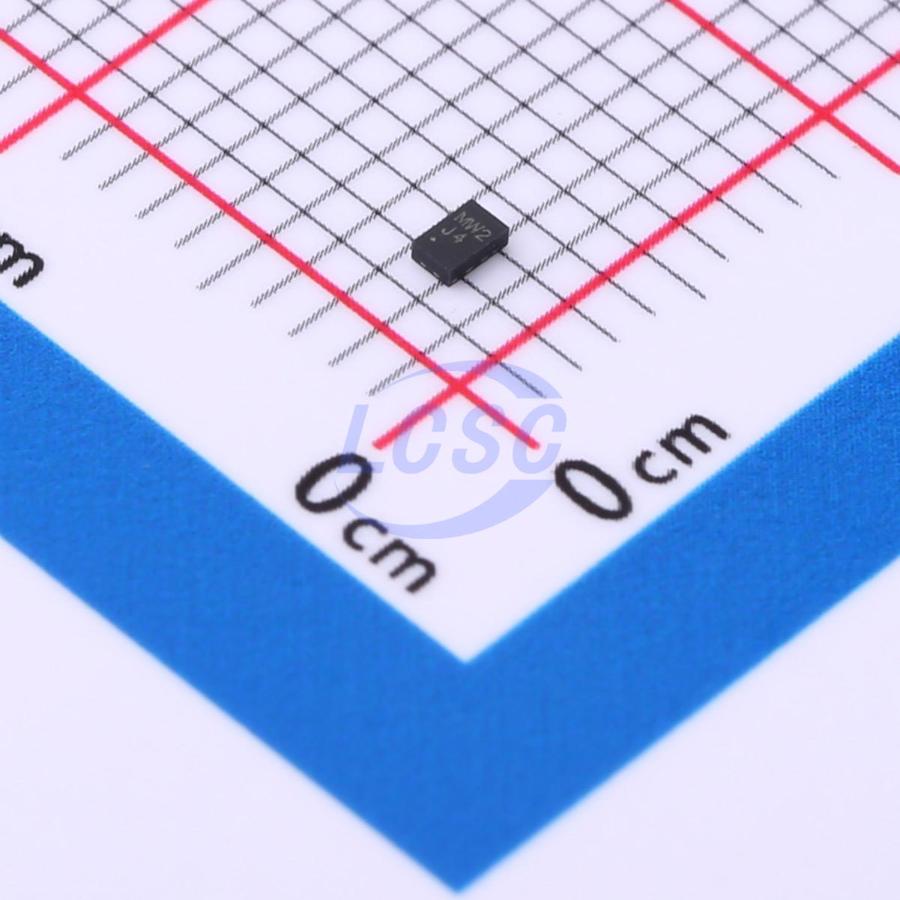

D4V5H1U2LP1610-7
11.5VC Clamp 90A@8/20us Ipp ESD DIODE UDFN1610-2
ESD DIODE 4.5VWM 11.5VC UDFN1610-2
- Manufacturer
- DIODES
- Manufacturer part #
- D4V5H1U2LP1610-7
- Store part #
- C5157834
- Package / case
- UDFN1610-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
310 in stock
#C5157834
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.04 | ₹145.20 |
| 50+ | ₹22.74 | ₹1,137.00 |
| 150+ | ₹20.04 | ₹3,006.00 |
| 500+ | ₹16.67 | ₹8,335.00 |
| 2,500+ | ₹14.42 | ₹36,050.00 |
| 5,000+ | ₹13.51 | ₹67,550.00 |
5 × ₹29.04
₹145.20
excl. GST
₹171.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
D4V5H1U2LP1610-7
₹145.20 for 5 + GST
Specifications
- Clamping Voltage
- 11.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 90A@8/20us
- Voltage - Breakdown
- 5.5V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 4.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.012 g
Overview
This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for protecting one line against high surge current and other transients. These robust diodes can safely absorb repetitive ESD strikes at ±30kV without performance degradation. Additionally, it can safely dissipate 90A of 8 / 20μs surge current (IEC 61000 - 4 - 5) with very low clamping voltages.
Applications
- Power line protections
- Touch panels
- Small panel modules
Key features
- Provides ESD Protection per IEC 61000 - 4 - 2 Standard: Air ±30kV, Contact ±30kV
- One Channel of ESD Protection
- Low Channel Input Capacitance
- Totally Lead - Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
