DIODESDatasheet (PDF)

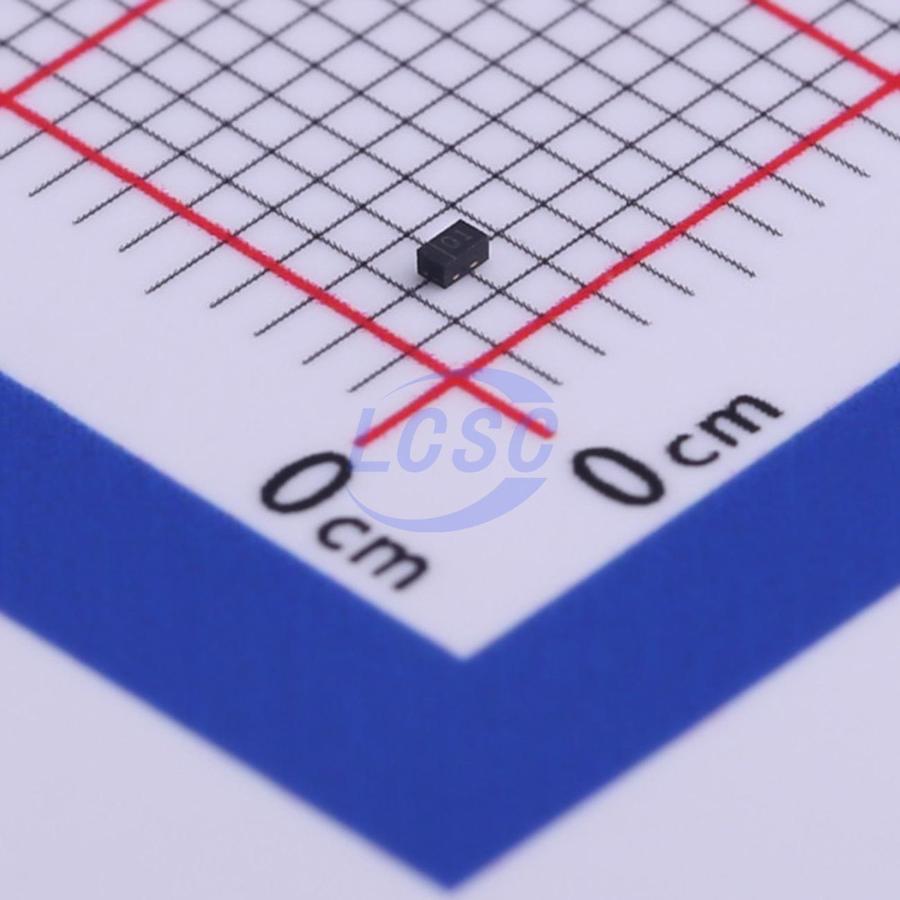

D5V0F2U3LP-7B
12VC Clamp 1.5A@8/20us Ipp TVS DIODE DFN1006-3
DFN1006-3ROHS3 CompliantActive
TVS DIODE 5.5VWM 12VC DFN1006-3
- Manufacturer
- DIODES
- Manufacturer part #
- D5V0F2U3LP-7B
- Store part #
- C481694
- Package / case
- DFN1006-3
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
190 in stock
#C481694
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.16 | ₹110.80 |
| 50+ | ₹17.65 | ₹882.50 |
| 150+ | ₹15.70 | ₹2,355.00 |
| 500+ | ₹13.30 | ₹6,650.00 |
| 2,500+ | ₹12.22 | ₹30,550.00 |
| 5,000+ | ₹11.58 | ₹57,900.00 |
5 × ₹22.16
₹110.80
excl. GST
₹130.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
D5V0F2U3LP-7B
₹110.80 for 5 + GST
Specifications
- Clamping Voltage
- 12V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 1.5A@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 6V
- type
- TVS
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.01 g
Overview
This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras, and MP3 players.
Applications
- Cellular Handsets
- Portable Electronics
- Computers and Peripheral
Key features
- Low Profile Package (0.53mm max) and Ultra- small PCB- Footprint Area (1.08 x 0.68mm max) Suitable for Compact Portable Electronics
- Provides ESD Protection per IEC 61000- 4- 2 Standard: Air ±15kV, Contact ±15kV
- 2 Channels of ESD Protection
- Low Channel Input Capacitance
- Totally Lead Free & Fully Rolar 3 compliant
- Halogen and Antimony Free. "Green" Device
