DIODESDatasheet (PDF)

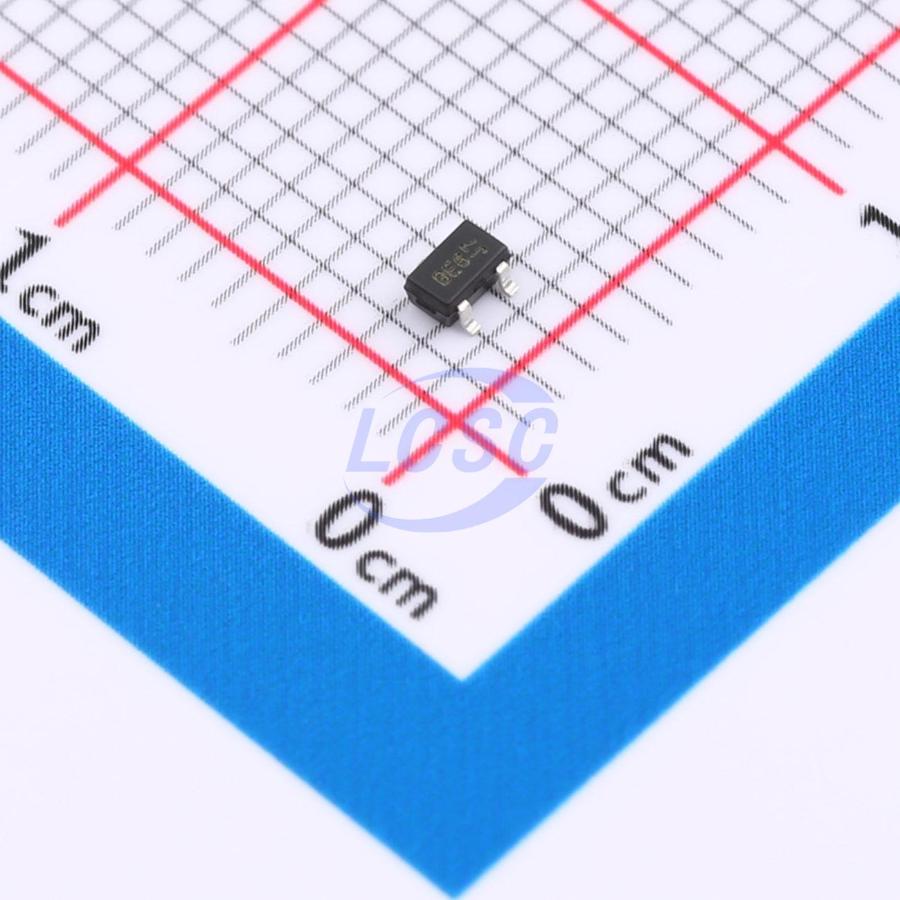

D5V0F2U3WQ-7
12VC Clamp 3.3A@8/20us Ipp TVS DIODE SOT-323
SOT-323ROHS3 CompliantActive
TVS DIODE 5VWM 12VC SOT-323
- Manufacturer
- DIODES
- Manufacturer part #
- D5V0F2U3WQ-7
- Store part #
- C5244625
- Package / case
- SOT-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,145 in stock
#C5244625
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.72 | ₹78.60 |
| 50+ | ₹12.57 | ₹628.50 |
| 150+ | ₹11.01 | ₹1,651.50 |
| 500+ | ₹9.83 | ₹4,915.00 |
| 3,000+ | ₹8.88 | ₹26,640.00 |
| 6,000+ | ₹8.41 | ₹50,460.00 |
5 × ₹15.72
₹78.60
excl. GST
₹92.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
D5V0F2U3WQ-7
₹78.60 for 5 + GST
Specifications
- Clamping Voltage
- 12V
- Peak Pulse Current (Ipp)
- 3.3A@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 7V
- type
- TVS
- Reverse Leakage Current (Ir)
- 10nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.056 g
Overview
This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for use in automotive infotainment applications.
Applications
- USB Modules
- HDMI Inputs
- Infotainment Consoles
Key features
- Provides ESD Protection per IEC 61000-4-2 Standard: Air ±25kV, Contact ±25kV
- 2 Channels of ESD Protection
- Low Channel Input Capacitance
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities
