DIODESDatasheet (PDF)

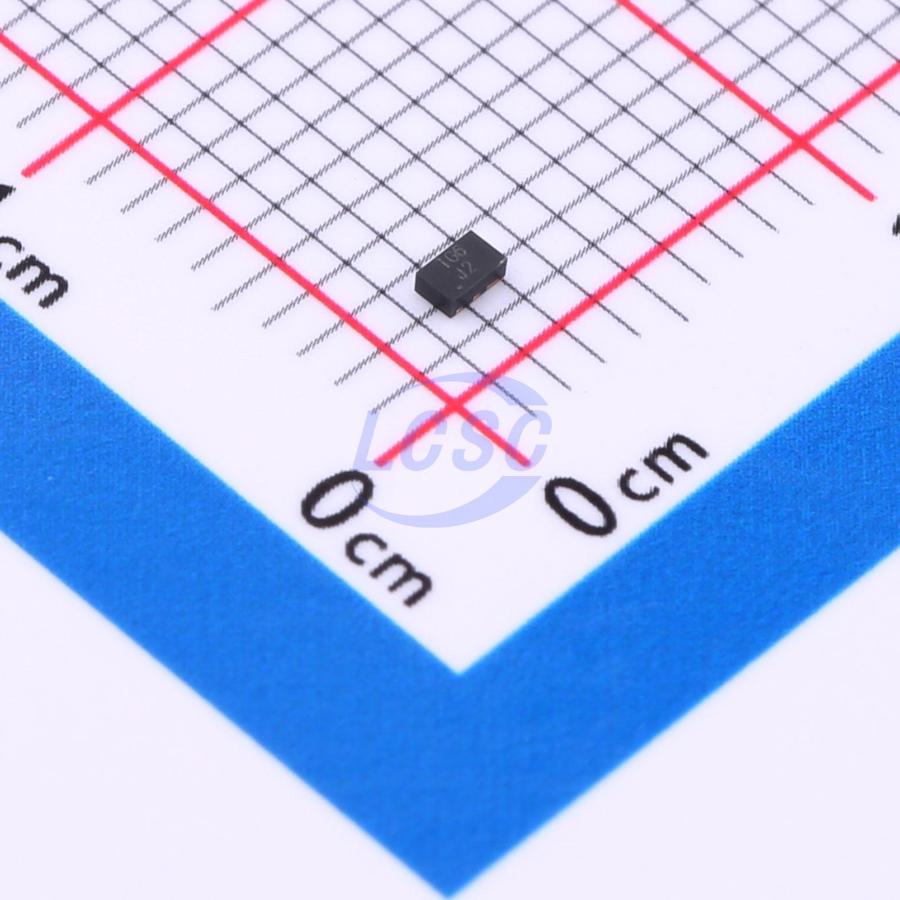

D5V0F2U6LP-7
12VC Clamp 1.5A@8/20us Ipp TVS DIODE UDFN1610-6
UDFN1610-6ROHS3 CompliantActive
TVS DIODE 5.5VWM 12VC UDFN1610-6
- Manufacturer
- DIODES
- Manufacturer part #
- D5V0F2U6LP-7
- Store part #
- C1973607
- Package / case
- UDFN1610-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,280 in stock
#C1973607
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.92 | ₹119.60 |
| 50+ | ₹19.83 | ₹991.50 |
| 150+ | ₹17.79 | ₹2,668.50 |
| 500+ | ₹16.26 | ₹8,130.00 |
| 3,000+ | ₹15.03 | ₹45,090.00 |
| 6,000+ | ₹14.42 | ₹86,520.00 |
5 × ₹23.92
₹119.60
excl. GST
₹141.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
D5V0F2U6LP-7
₹119.60 for 5 + GST
Specifications
- Clamping Voltage
- 12V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 1.5A@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 6V
- type
- TVS
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
This next-generation TVS is designed to protect sensitive electronic equipment from damage caused by ESD. The combination of compact size and high ESD surge capability makes it ideal for portable applications such as mobile phones, digital cameras, and MP3 players.
Applications
- Mobile phones
- Portable electronic devices
- Computers and peripherals
Key features
- Low-profile package (0.61mm max) and ultra-small PCB footprint (1.68x1.08mm max) for compact portable electronics
- ESD protection per IEC 61000-4-2: ±15kV air discharge, ±15kV contact discharge
- 2-channel ESD protection
- Low per-channel input capacitance
- Fully lead-free and RoHS compliant
- Halogen- and antimony-free, "green" device
