DIODESDatasheet (PDF)

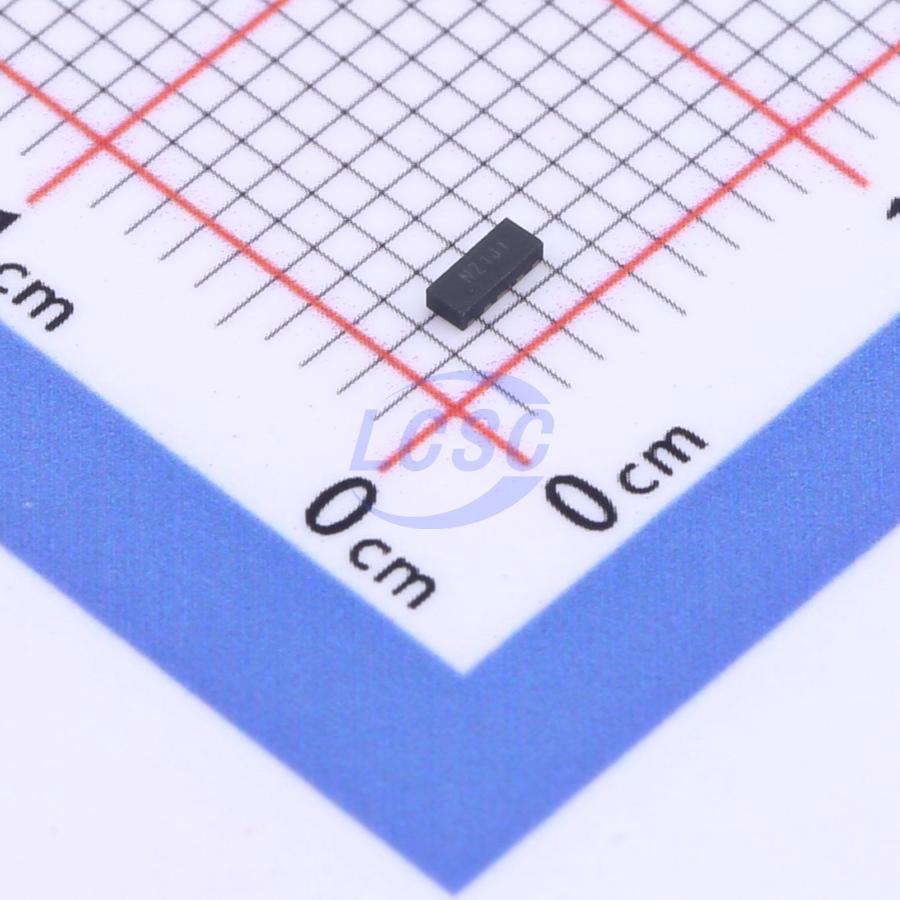

D5V0FS4U10LP-7
3VC Clamp 3.5A@8/20us Ipp ESD DIODE UDFN2510-10
UDFN2510-10ROHS3 CompliantActive
ESD DIODE 5VWM 3VC UDFN2510-10
- Manufacturer
- DIODES
- Manufacturer part #
- D5V0FS4U10LP-7
- Store part #
- C1869337
- Package / case
- UDFN2510-10
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
165 in stock
#C1869337
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.68 | ₹163.40 |
| 50+ | ₹25.81 | ₹1,290.50 |
| 150+ | ₹22.87 | ₹3,430.50 |
| 500+ | ₹19.21 | ₹9,605.00 |
| 3,000+ | ₹17.58 | ₹52,740.00 |
| 6,000+ | ₹16.60 | ₹99,600.00 |
5 × ₹32.68
₹163.40
excl. GST
₹192.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
D5V0FS4U10LP-7
₹163.40 for 5 + GST
Specifications
- Clamping Voltage
- 3V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 3.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 20W@8/20us
- Voltage - Breakdown
- 7V
- Number of Channels
- Four channels
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
The D5V0FS4U10LP is a high-performance device suitable for protecting four high speed I/Os. These devices are assembled in UDFN2510-10 package and have high ESD surge capability, low ESD clamping voltage and ultra-low capacitance.
Applications
- Typically used at high-speed ports such as USB 3.0, USB 3.1, Serial ATA, Display port.
Key features
- High ESD surge capability
- Low ESD clamping voltage
- Ultra-low capacitance
- 4 Channels of ESD Protection
- Ultra-Low Channel Input Capacitance of 0.45pF Typical
- TLP Dynamic Resistance: 0.25Ω
- Totally Lead-Free & Fully RoHS Compliant, Halogen and Antimony Free, “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPESD4USB5B-TTSX#C51939646TECH PUBLIC · DFN2510-10 | TECH PUBLIC | DFN2510-10 | 2,970 | ₹10.72 · 2,970 in stock | View |
