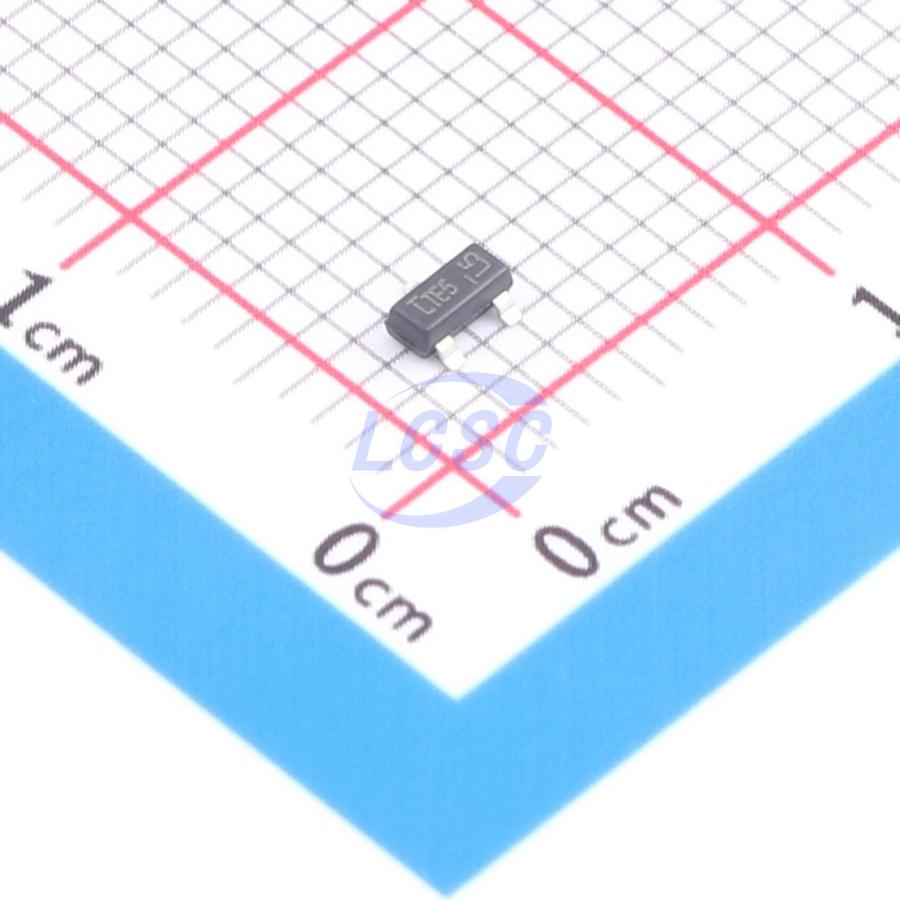

D5V0H2U3SO-7
20VC Clamp 15A@8/20us Ipp ESD DIODE SOT-23-3
- Manufacturer
- DIODES
- Manufacturer part #
- D5V0H2U3SO-7
- Store part #
- C19949196
- Package / case
- SOT-23-3
- Category
- TVS Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C19949196
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.30 | ₹121.50 |
| 50+ | ₹23.73 | ₹1,186.50 |
| 150+ | ₹23.35 | ₹3,502.50 |
| 500+ | ₹22.95 | ₹11,475.00 |
5 × ₹24.30
₹121.50
excl. GST
₹143.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per bag
D5V0H2U3SO-7
₹121.50 for 5 + GST
Specifications
- Clamping Voltage
- 20V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 15A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 300W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 7.2V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 3,000 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
The DIODES D5V0H2U3SO is a dual-voltage suppressor designed to protect components connected to data and transmission lines against electron static discharge (ESD). The device clamps the voltage just above the logic level supply for positive transients and to a diode drop below ground for negative transients. It may also work as a bidirectional suppressor by connecting only pin 1 to pin 2.
Applications
- Computers and peripherals
- Communication system
- Portable electronics
- Cellular handset and accessories
Key features
- 300W Peak Power Dissipation per Line (8/20µs Waveform)
- Provides ESD Protection per IEC 61000 - 4 - 2 Standard: Air ±30kV, Contact ±30kV
- 2 Channels Unidirectional of ESD Protection
- Ultra - Low Leakage Current: lRM < 1uA @VBR
- Totally Lead - Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
