DIODESDatasheet (PDF)

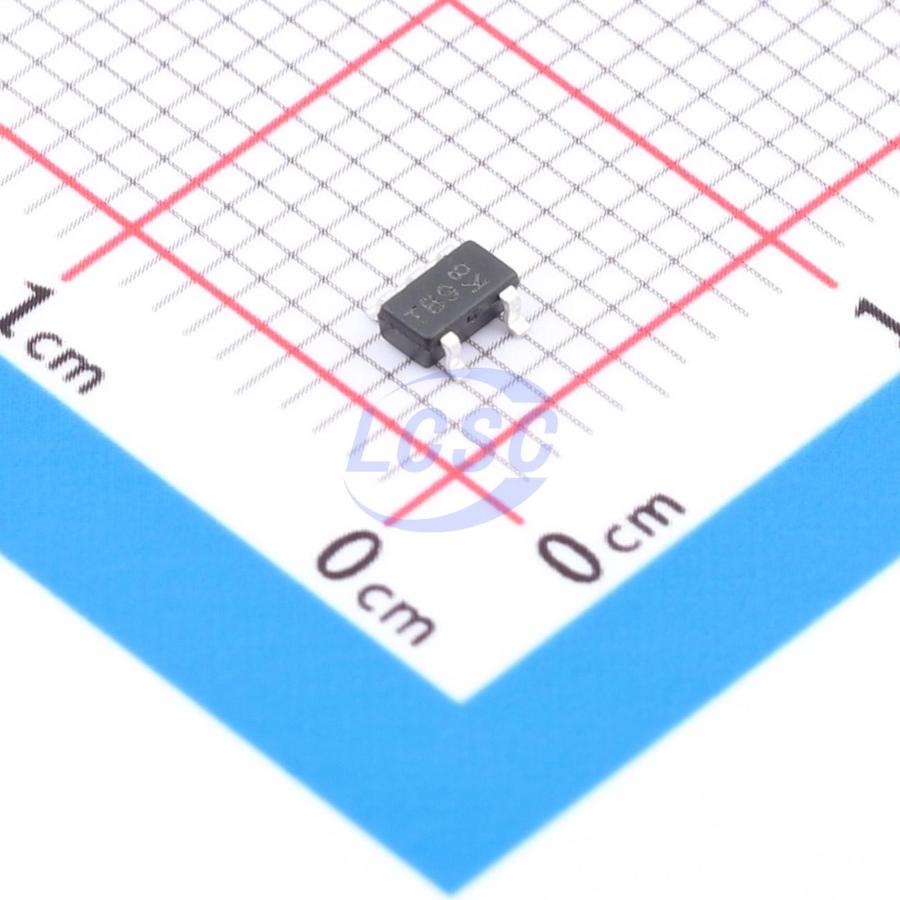

D5V0L4B5SOQ-7
14VC Clamp 6A@8/20us Ipp ESD DIODE SOT-25
SOT-25ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- D5V0L4B5SOQ-7
- Store part #
- C19949199
- Package / case
- SOT-25
- Category
- TVS Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
335 in stock
#C19949199
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.15 | ₹170.75 |
| 50+ | ₹33.67 | ₹1,683.50 |
| 150+ | ₹33.34 | ₹5,001.00 |
| 500+ | ₹33.02 | ₹16,510.00 |
5 × ₹34.15
₹170.75
excl. GST
₹201.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per bag
D5V0L4B5SOQ-7
₹170.75 for 5 + GST
Specifications
- Clamping Voltage
- 14V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 6A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 84W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 7V
- type
- ESD
- Reverse Leakage Current (Ir)
- 10nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 3,000 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.147 g
Overview
Key features
- Provides ESD Protection per IEC 61000-4-2 Standard: Air – ±30kV, Contact – ±30kV
- 4 Channels of Bi-Directional ESD Protection
- Low Channel Input Capacitance
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | D5V0L4B5TS-7#C1973060DIODES · TSOT-25 | DIODES | TSOT-25 | On request | ₹39.00 · 0 in stock | View |
