DIODESDatasheet (PDF)

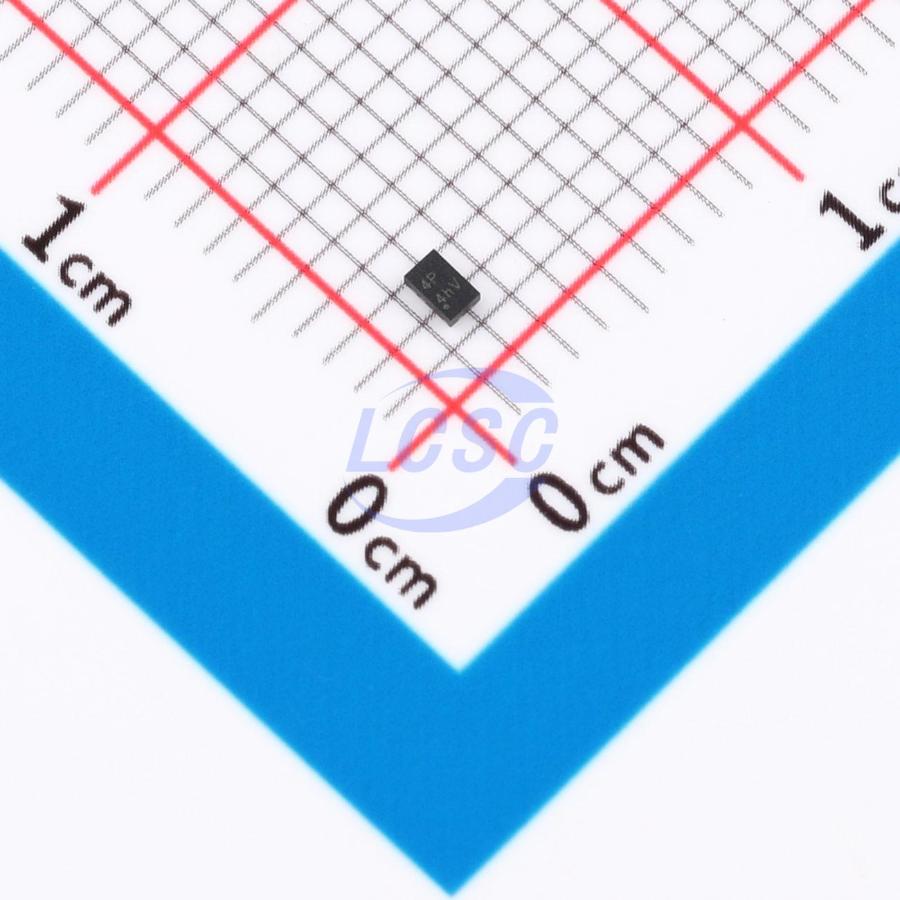

D5V0S1U2LP1610Q-7
12VC Clamp 150A@8/20us Ipp TVS DIODE UDFN1610-2
UDFN1610-2ROHS3 CompliantActive
TVS DIODE 5VWM 12VC UDFN1610-2
- Manufacturer
- DIODES
- Manufacturer part #
- D5V0S1U2LP1610Q-7
- Store part #
- C19949202
- Package / case
- UDFN1610-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
312 in stock
#C19949202
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.69 | ₹61.69 |
| 10+ | ₹60.83 | ₹608.30 |
| 30+ | ₹60.18 | ₹1,805.40 |
| 100+ | ₹59.55 | ₹5,955.00 |
1 × ₹61.69
₹61.69
excl. GST
₹72.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
D5V0S1U2LP1610Q-7
₹61.69 for 1 + GST
Specifications
- Clamping Voltage
- 12V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 150A@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 9V
- type
- TVS
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.063 g
Overview
This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for protecting one line against high surge current and other transients.
Applications
- Power line protection
- Mobile device applications
- Touch panels
- Small panel modules
- Type-C “CC” Vdd protection
Key features
- Provides ESD Protection per IEC 61000-4-2 Standard: Air ±30kV, Contact ±30kV
- One Channel of ESD Protection
- Low Channel Input Capacitance
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- The DIODESTM D5V0S1U2LP1610Q is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities
