DIODESDatasheet (PDF)

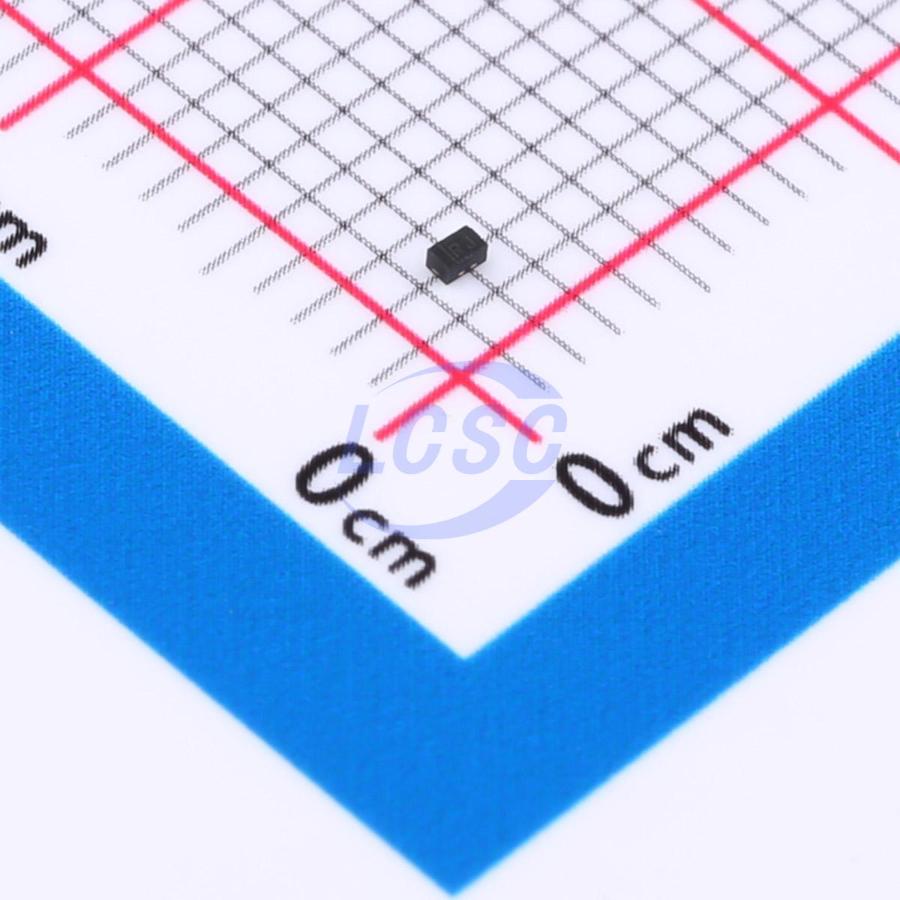

D5V0X1B2LPQ-7B
14VC Clamp 1.5A@8/20us Ipp TVS DIODE X1-DFN1006-2
X1-DFN1006-2ROHS3 CompliantActive
TVS DIODE 5.5VWM 14VC X1-DFN1006-2
- Manufacturer
- DIODES
- Manufacturer part #
- D5V0X1B2LPQ-7B
- Store part #
- C5157835
- Package / case
- X1-DFN1006-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
125 in stock
#C5157835
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.42 | ₹63.42 |
| 10+ | ₹49.10 | ₹491.00 |
| 30+ | ₹43.01 | ₹1,290.30 |
| 100+ | ₹35.40 | ₹3,540.00 |
| 500+ | ₹31.94 | ₹15,970.00 |
| 1,000+ | ₹29.98 | ₹29,980.00 |
1 × ₹63.42
₹63.42
excl. GST
₹74.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
D5V0X1B2LPQ-7B
₹63.42 for 1 + GST
Specifications
- Clamping Voltage
- 14V
- Peak Pulse Current (Ipp)
- 1.5A@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 7V
- type
- TVS
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.012 g
Overview
This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for use in automotive infotainment applications.
Applications
- USB modules
- HDMI inputs
- Infotainment consoles
Key features
- Low Profile Package (0.53mm Max) and Ultra-Small PCB Footprint Area (1.08mm×0.68mm Max)
- Suitable for Compact Portable Electronics
- Provides ESD Protection per IEC 61000 - 4 - 2 Standard: Air ±15kV, Contact ±15kV
- Provides ESD Protection per ISO10605 Standard: Air ±10kV, Contact ±10kV
- 1 Channel of ESD Protection
- Low Channel Input Capacitance
- Totally Lead - Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- The D5V0X1B2LPQ is suitable for automotive applications requiring specific change control; this part is AEC - Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities
