DIODESDatasheet (PDF)

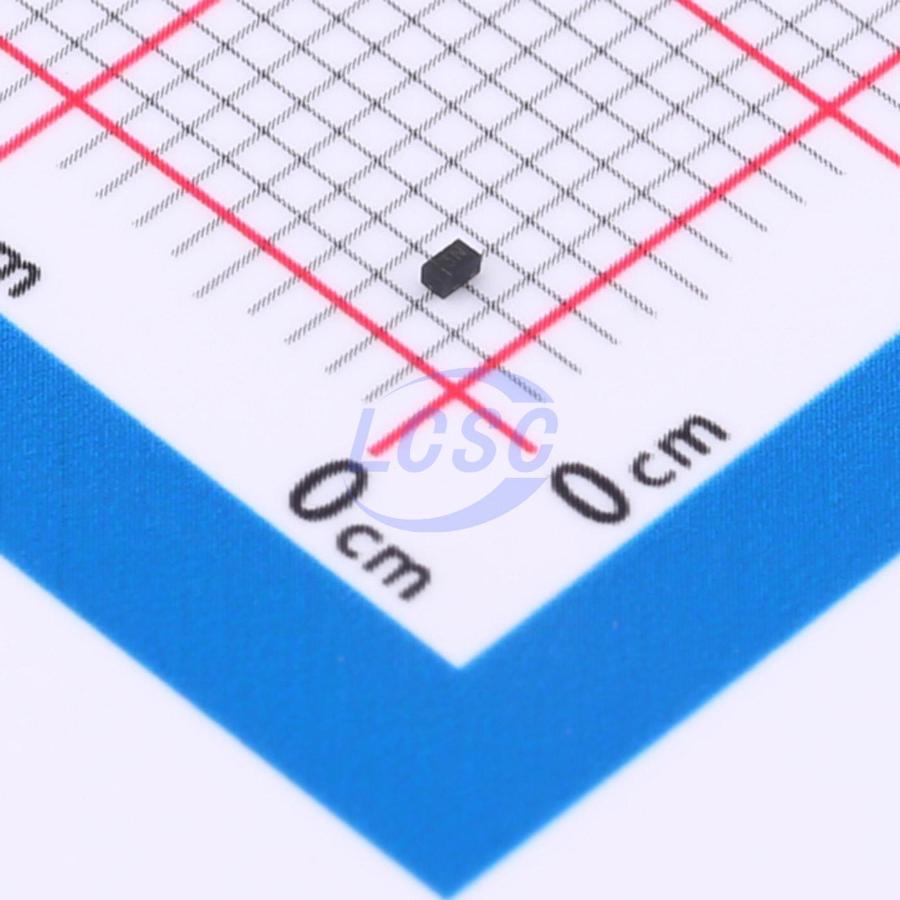

D6V3S1U2LP-7B
11.5VC Clamp TVS DIODE X1-DFN1006-2
X1-DFN1006-2ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- D6V3S1U2LP-7B
- Store part #
- C5244628
- Package / case
- X1-DFN1006-2
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C5244628
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.39 | ₹111.95 |
| 50+ | ₹17.77 | ₹888.50 |
| 150+ | ₹15.80 | ₹2,370.00 |
| 500+ | ₹13.32 | ₹6,660.00 |
| 2,500+ | ₹12.24 | ₹30,600.00 |
| 5,000+ | ₹11.58 | ₹57,900.00 |
5 × ₹22.39
₹111.95
excl. GST
₹132.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
D6V3S1U2LP-7B
₹111.95 for 5 + GST
Specifications
- Clamping Voltage
- 11.5V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 50A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 575W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 6.5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 6.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.019 g
Overview
This new generation TVS is designed to protect sensitive electronics from the damage due to ESD and Surge. The combination of small size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras, and MP3 players.
Applications
- Cellular Handsets
- Portable Electronics
- Computers and Peripheral
Key features
- Low Profile Package (0.50 mm Typical) and Ultra-Small PCB Footprint Area (1.1 mm × 0.7 mm Max) Suitable for Compact Portable Electronics
- One Channel of ESD and Surge Protection
- Provides ESD Protection per IEC 61000 - 4 - 2 Standard: Air ±30 kV, Contact ±30 kV
- Provides Surge and Lightning Protection per IEC 61000 - 4 - 5 Standard: IPP Max 50A
- Totally Lead - Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
