TECH PUBLICDatasheet (PDF)

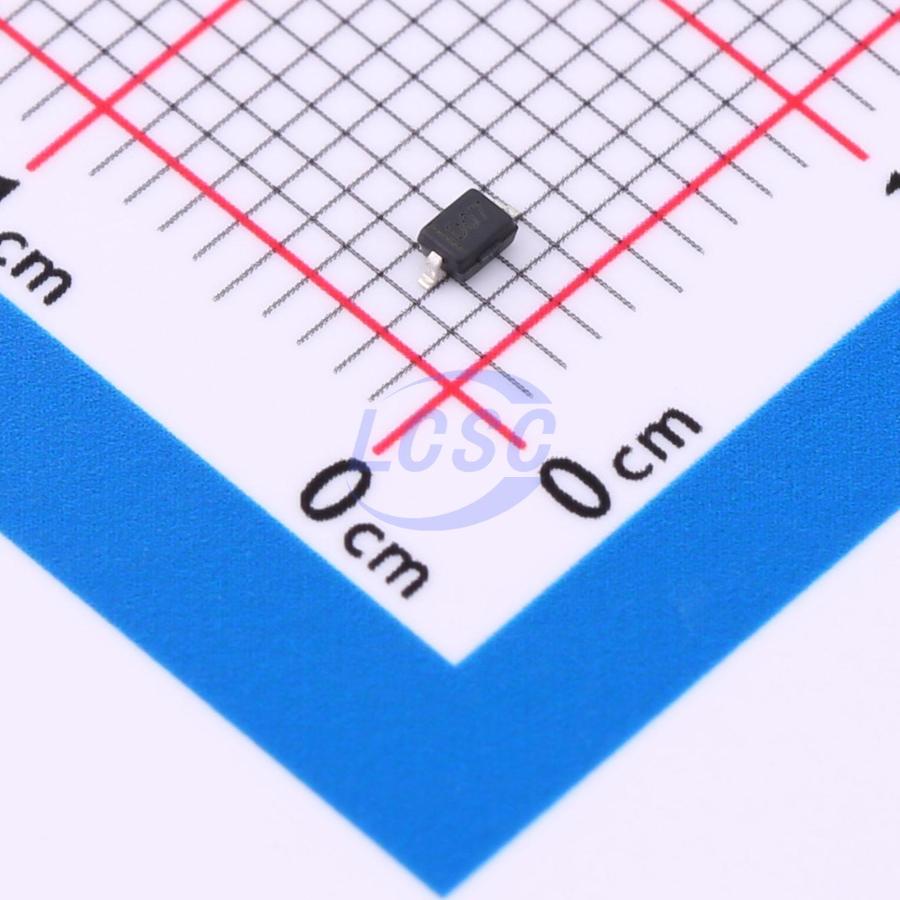

D7V0S1U2WS-TP
18VC Clamp 40A@8/20us Ipp SOD-323
SOD-323RoHSActive
7VWM 18VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- D7V0S1U2WS-TP
- Store part #
- C41407951
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,945 in stock
#C41407951
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.74 | ₹48.70 |
| 50+ | ₹7.63 | ₹381.50 |
| 150+ | ₹6.58 | ₹987.00 |
| 500+ | ₹5.78 | ₹2,890.00 |
| 3,000+ | ₹5.16 | ₹15,480.00 |
| 6,000+ | ₹4.84 | ₹29,040.00 |
5 × ₹9.74
₹48.70
excl. GST
₹57.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
D7V0S1U2WS-TP
₹48.70 for 5 + GST
Specifications
- Clamping Voltage
- 18V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 40A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 720W@8/20us
- Voltage - Breakdown
- 9.5V
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 7V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Applications
- Laptop Computers
- Cellular Phones
- Digital Cameras
- Personal Digital Assistants(PDAs)
Key features
- 2-pin lead-less package
- Junction capacitance (Max value: 350pF)
- Peak Pulse current (8/20μs) MAX : 40A
- IEC61000-4-2 (ESD) ±30kV (air), ±30kV (contact)
- Low leakage current
- Working voltages: 7V
- RoHS Compliant
