DIODES

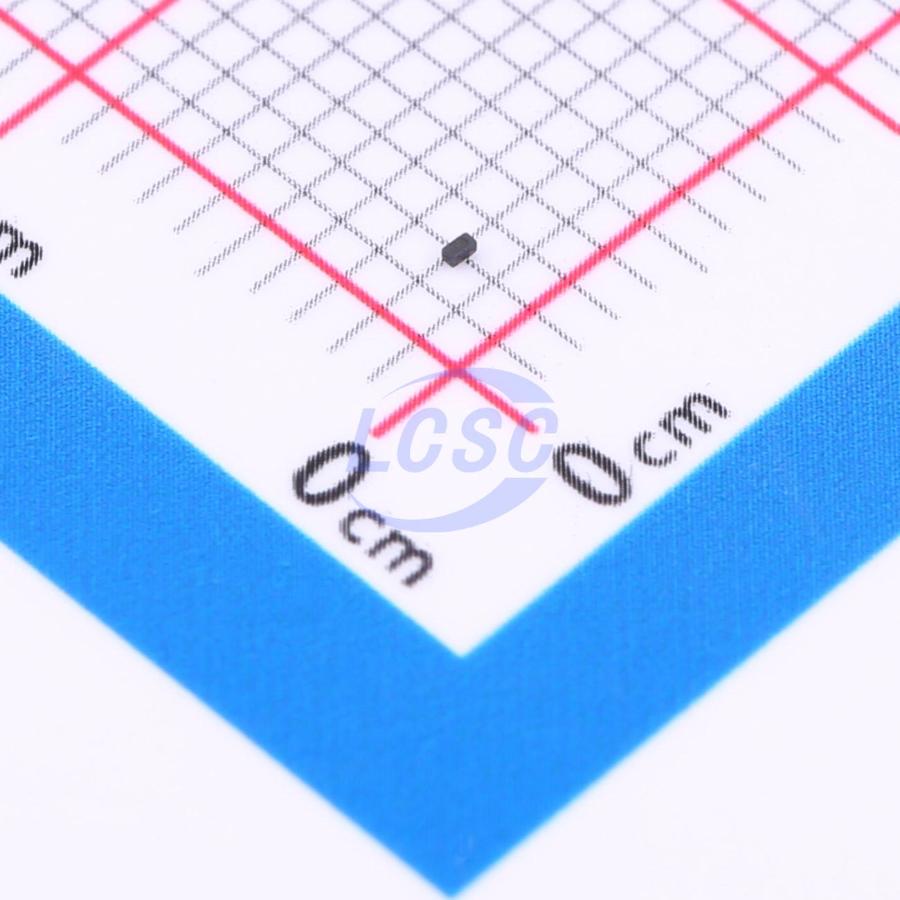

D8V0L1B2LP3-7

16.5VC Clamp 4A@8/20us Ipp ESD DIODE X3-DFN0603-2

X3-DFN0603-2ROHS3 CompliantActive

ESD DIODE 8VWM 16.5VC X3-DFN0603-2

Manufacturer: DIODES
Manufacturer part #: D8V0L1B2LP3-7
Store part #: C526519
Package / case: X3-DFN0603-2
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

90 in stock

#C526519

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
10+	₹3.90	₹39.00
100+	₹3.81	₹381.00
300+	₹3.74	₹1,122.00
1,000+	₹3.69	₹3,690.00

Quantity (min 10, multiples of 10)

10 × ₹3.90

₹39.00

excl. GST

₹46.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 10,000 per reel

D8V0L1B2LP3-7

₹39.00 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 16.5V
Operating Temperature: -65℃~+150℃
Peak Pulse Current (Ipp): 4A@8/20us
Peak Pulse Power Dissipation (Ppp): 66W
Voltage - Breakdown: 8.5V
Number of Channels: 1
type: ESD
Reverse Leakage Current (Ir): 50nA
Reverse Stand-Off Voltage (Vrwm): 8V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 10,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.01 g

Overview

This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The combination of small size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras, and MP3 players.
