DIODESDatasheet (PDF)

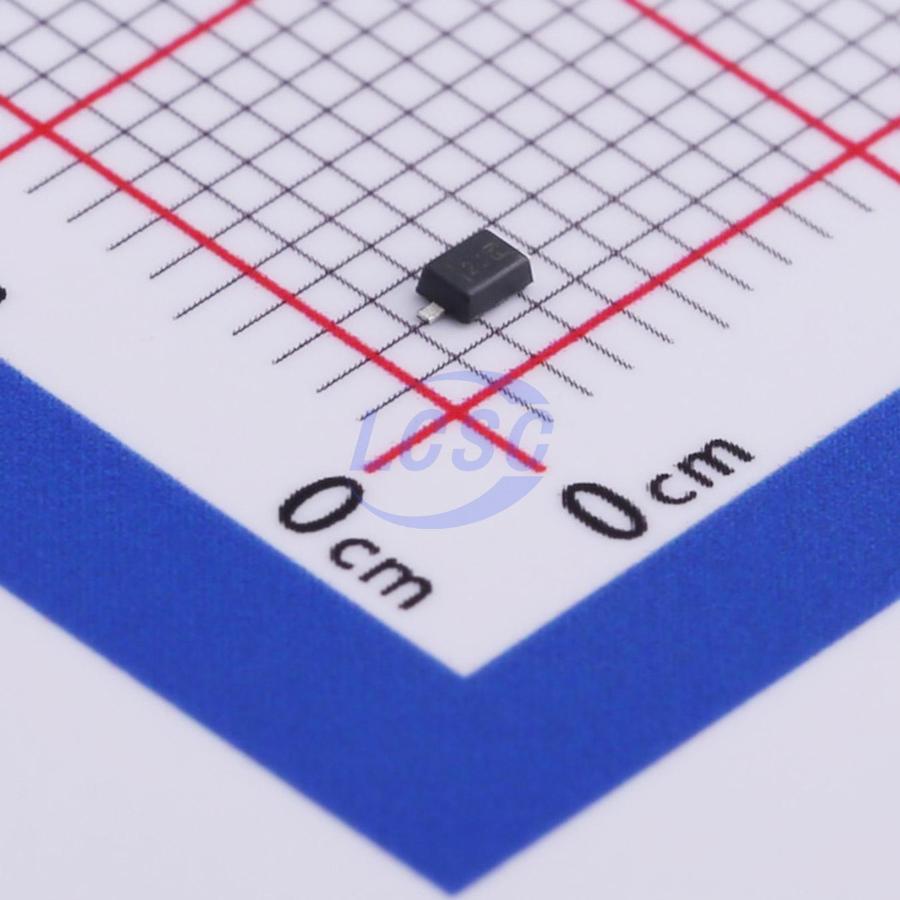

DDZ20DSF-7
Zener Diode Independent 20.22V 500mW Surface Mount SOD-323F
SOD-323FROHS3 CompliantActive
DIODE ZENER 20.22V 500mW SOD-323F
- Manufacturer
- DIODES
- Manufacturer part #
- DDZ20DSF-7
- Store part #
- C508186
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C508186
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.44 | ₹54.40 |
| 100+ | ₹4.31 | ₹431.00 |
| 300+ | ₹3.76 | ₹1,128.00 |
| 3,000+ | ₹3.33 | ₹9,990.00 |
| 6,000+ | ₹2.99 | ₹17,940.00 |
| 9,000+ | ₹2.82 | ₹25,380.00 |
| 21,000+ | ₹2.79 | ₹58,590.00 |
| 39,000+ | ₹2.77 | ₹1,08,030.00 |
10 × ₹5.44
₹54.40
excl. GST
₹64.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DDZ20DSF-7
₹54.40 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 70nA
- Impedance(Zzt)
- 50Ω
- Zener Voltage(Range)
- 19.72V~20.72V
- Zener Voltage(Nom)
- 20.22V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
Key features
- 500mW Power Dissipation on FR-4 PCB
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DDZ20CSF-7#C5248776DIODES · SOD-323F | DIODES | SOD-323F | 20 | ₹5.11 · 20 in stock | View |
 | BZT52B20S#C968117YANGJIE · SOD-323(SC-90) | YANGJIE | SOD-323(SC-90) | 2,420 | ₹3.65 · 2,420 in stock | View |
 | TDZ20J,115#C553822Nexperia · SOD-323F | Nexperia | SOD-323F | 2,780 | ₹3.89 · 2,780 in stock | View |
 | BZT52-B20S_R1_00001#C268467PANJIT · SOD-323 | PANJIT | SOD-323 | 5,820 | ₹3.94 · 5,820 in stock | View |
 | MM3Z20BW#C2857019JSMSEMI · SOD-323 | JSMSEMI | SOD-323 | 1,300 | ₹2.65 · 1,300 in stock | View |
