NexperiaDatasheet (PDF)

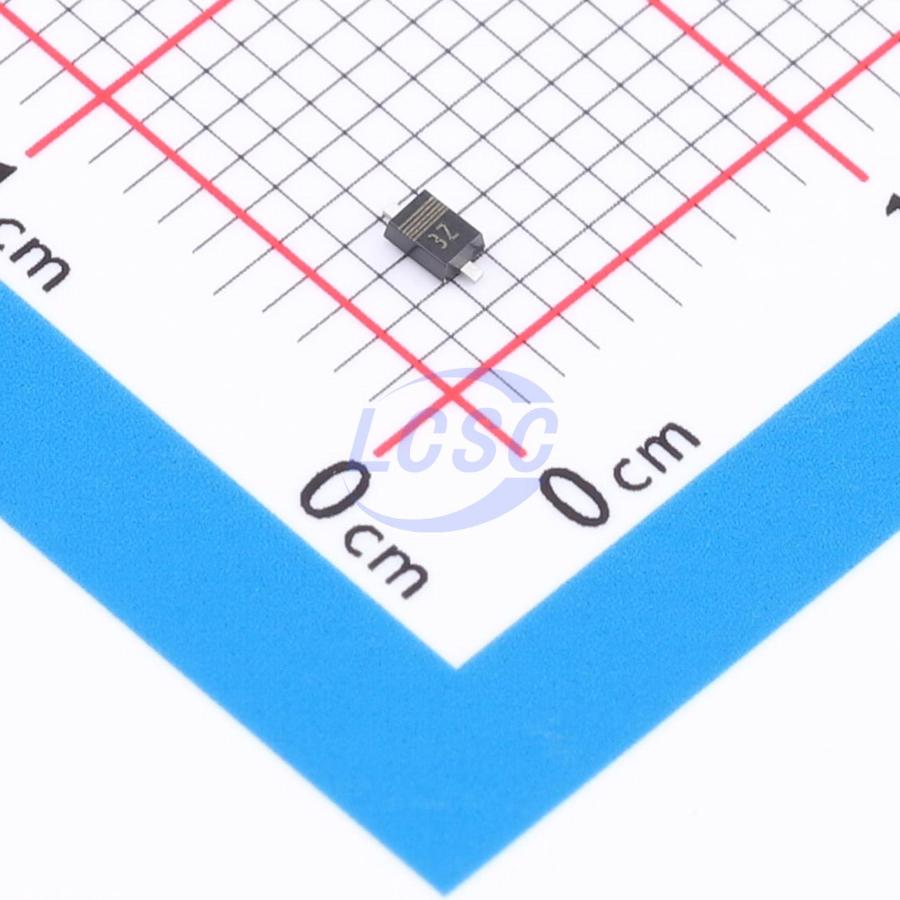

TDZ20J,115
1 Independent 19.6V~20.4V 20V SOD-323F Single Zener Diodes RoHS
SOD-323FROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- TDZ20J,115
- Store part #
- C553822
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,780 in stock
#C553822
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.89 | ₹77.80 |
| 200+ | ₹3.00 | ₹600.00 |
| 600+ | ₹2.51 | ₹1,506.00 |
| 3,000+ | ₹2.22 | ₹6,660.00 |
| 9,000+ | ₹1.97 | ₹17,730.00 |
| 21,000+ | ₹1.83 | ₹38,430.00 |
20 × ₹3.89
₹77.80
excl. GST
₹91.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TDZ20J,115
₹77.80 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 50nA@14V
- Impedance(Zzt)
- 20Ω
- Zener Voltage(Range)
- 19.6V~20.4V
- Zener Voltage(Nom)
- 20V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.023 g
Overview
General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 180W
- Low differential resistance
- Total power dissipation: ≤ 500mW
- AEC-Q101 qualified
- Very small plastic package suitable for surface-mounted design
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52B20S#C968117YANGJIE · SOD-323(SC-90) | YANGJIE | SOD-323(SC-90) | 2,420 | ₹3.65 · 2,420 in stock | View |
 | BZX84J-B20,115#C550972Nexperia · SOD-323F | Nexperia | SOD-323F | 2,750 | ₹7.05 · 2,750 in stock | View |
 | PDZ20B_R1_00001#C2912881PANJIT · SOD-323 | PANJIT | SOD-323 | 4,660 | ₹5.40 · 4,660 in stock | View |
 | DDZ20DSF-7#C508186DIODES · SOD-323F | DIODES | SOD-323F | 40 | ₹5.44 · 40 in stock | View |
 | DDZ20CSF-7#C5248776DIODES · SOD-323F | DIODES | SOD-323F | 20 | ₹5.11 · 20 in stock | View |
