BZX84J-B20,115

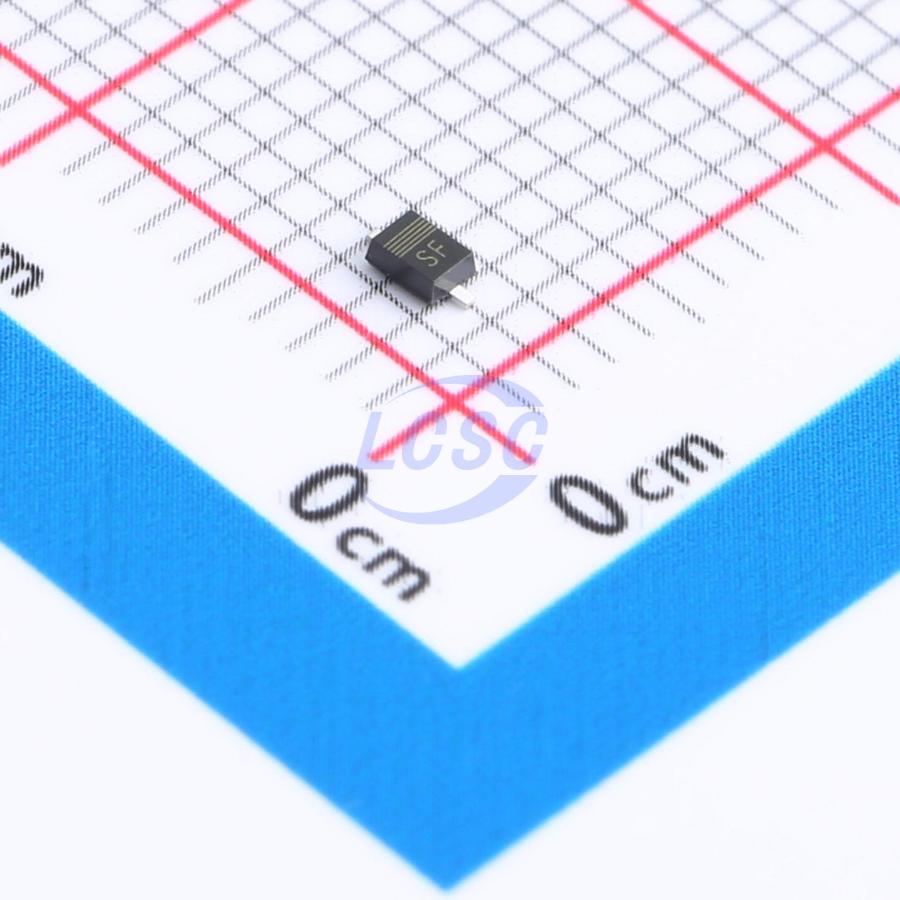

Zener Diode Independent 20V 550mW Surface Mount SOD-323F
SOD-323FROHS3 CompliantActive
DIODE ZENER 20V 550mW SOD-323F
- Manufacturer
- Nexperia
- Manufacturer part #
- BZX84J-B20,115
- Store part #
- C550972
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,750 in stock
#C550972
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.05 | ₹70.50 |
| 100+ | ₹5.54 | ₹554.00 |
| 300+ | ₹4.79 | ₹1,437.00 |
| 3,000+ | ₹4.22 | ₹12,660.00 |
| 6,000+ | ₹3.77 | ₹22,620.00 |
| 9,000+ | ₹3.53 | ₹31,770.00 |
10 × ₹7.05
₹70.50
excl. GST
₹83.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
BZX84J-B20,115
₹70.50 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 550mW
- Reverse Leakage Current (Ir)
- 50nA@14V
- Impedance(Zzt)
- 20Ω
- Zener Voltage(Range)
- 19.6V~20.4V
- Zener Voltage(Nom)
- 20V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.022 g
Overview
General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: ≤ 40W
- Total power dissipation: ≤ 550mW
- AEC-Q101 qualified
- Small plastic package suitable for surface-mounted design
- Wide working voltage range: nominal 2.4V to 75V E24 range
- Two tolerance series: ± 2% and ± 5%
- Low differential resistance
Alternatives
Similar parts — check the datasheet before substituting.
