NexperiaDatasheet (PDF)
PZU20B2,115

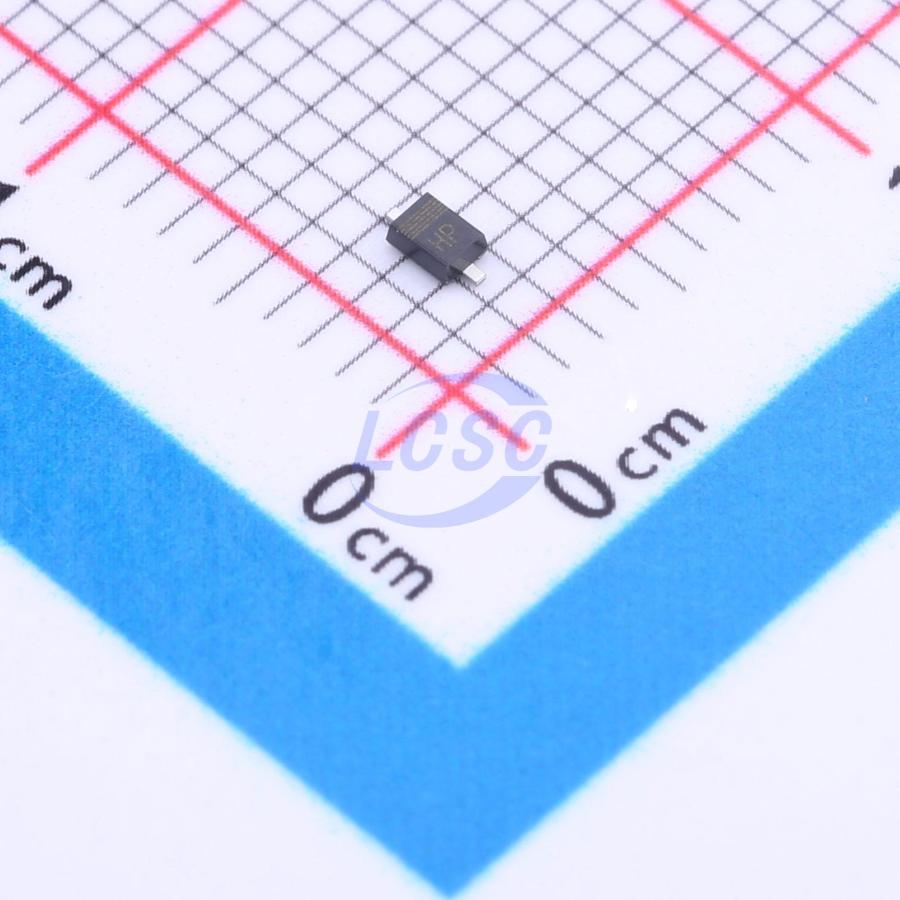

Zener Diode 20V 550mW Surface Mount SOD-323F
SOD-323FROHS3 CompliantActive
DIODE ZENER 20V 550mW SOD-323F
- Manufacturer
- Nexperia
- Manufacturer part #
- PZU20B2,115
- Store part #
- C553653
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,040 in stock
#C553653
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.74 | ₹48.70 |
| 50+ | ₹7.65 | ₹382.50 |
| 150+ | ₹6.60 | ₹990.00 |
| 500+ | ₹5.82 | ₹2,910.00 |
| 3,000+ | ₹5.20 | ₹15,600.00 |
| 6,000+ | ₹4.88 | ₹29,280.00 |
5 × ₹9.74
₹48.70
excl. GST
₹57.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PZU20B2,115
₹48.70 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 550mW
- Reverse Leakage Current (Ir)
- 50nA@15V
- Impedance(Zzt)
- 20Ω
- Zener Voltage(Range)
- 19.5V~20.4V
- Zener Voltage(Nom)
- 20V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
General- purpose Zener diodes in a SOD323F (SC- 90) very small and flat lead Surface Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: 550 mW
- Tolerance series: B: approximately 5%; B1, B2, B3: sequential, approximately 2%
- Small plastic package suitable for surface mounted design
- Wide working voltage range: nominal 2.4 V to 36 V
- Very low leakage current for a given reverse voltage for types PZU5.1B, PZU10B
- AEC-Q101 qualified
