DIODESDatasheet (PDF)

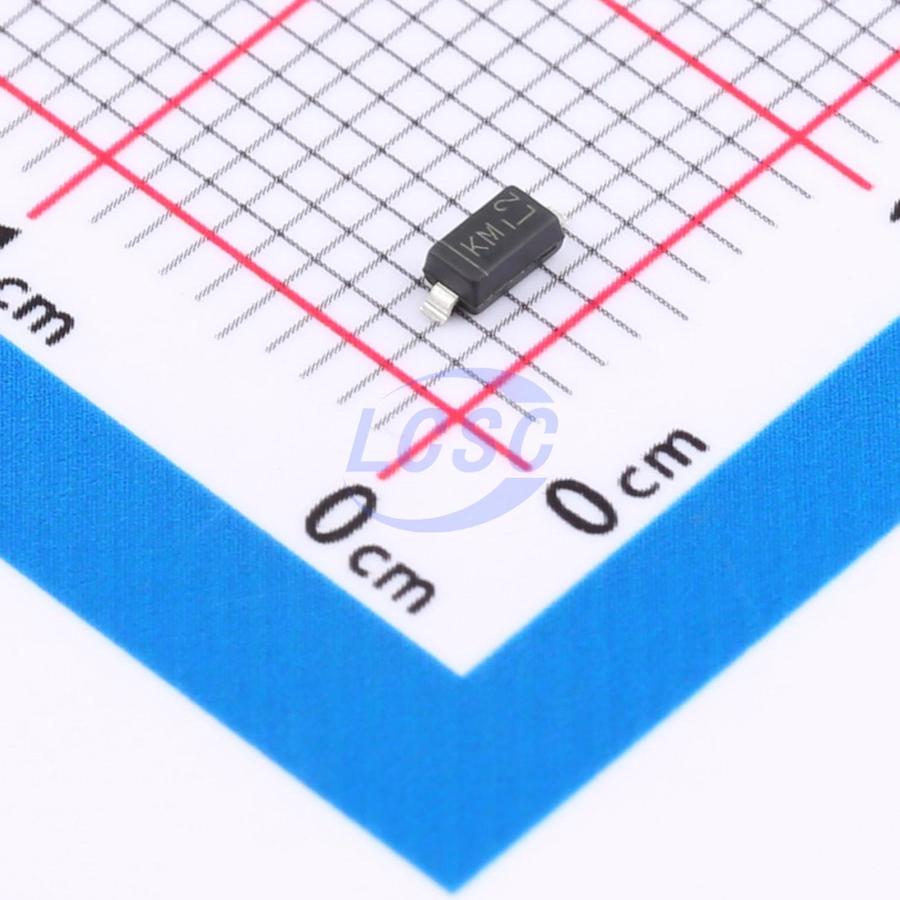

DDZ5V1B-7
Zener Diode Independent 5.1V 470mW Surface Mount SOD-123
SOD-123ROHS CompliantActive
DIODE ZENER 5.1V 470mW SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- DDZ5V1B-7
- Store part #
- C151576
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,105 in stock
#C151576
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.55 | ₹142.75 |
| 50+ | ₹23.40 | ₹1,170.00 |
| 150+ | ₹21.19 | ₹3,178.50 |
| 500+ | ₹18.44 | ₹9,220.00 |
| 3,000+ | ₹17.21 | ₹51,630.00 |
| 6,000+ | ₹16.48 | ₹98,880.00 |
5 × ₹28.55
₹142.75
excl. GST
₹168.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DDZ5V1B-7
₹142.75 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 470mW
- Reverse Leakage Current (Ir)
- 5uA@1.5V
- Impedance(Zzt)
- 17Ω
- Zener Voltage(Range)
- 4.94V~5.2V
- Zener Voltage(Nom)
- 5.1V
- Impedance(Zzk)
- 480Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
Key features
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5231CT1G#C891724onsemi · SOD-123 | onsemi | SOD-123 | 55 | ₹21.83 · 55 in stock | View |
 | MMSZ5231A_R1_00001#C268590PANJIT · SOD-123 | PANJIT | SOD-123 | 680 | ₹4.21 · 680 in stock | View |
 | BZT52B5V1#C19077393R+O · SOD-123 | R+O | SOD-123 | 12,45,300 | ₹2.59 · 12,45,300 in stock | View |
 | MM1Z5V1B#C22466343R+O · SOD-123 | R+O | SOD-123 | 1,12,580 | ₹3.04 · 1,12,580 in stock | View |
 | MMSZ5231B#C49238170Guangdong Hottech · SOD-123 | Guangdong Hottech | SOD-123 | 160 | ₹3.19 · 160 in stock | View |
