DIODESDatasheet (PDF)

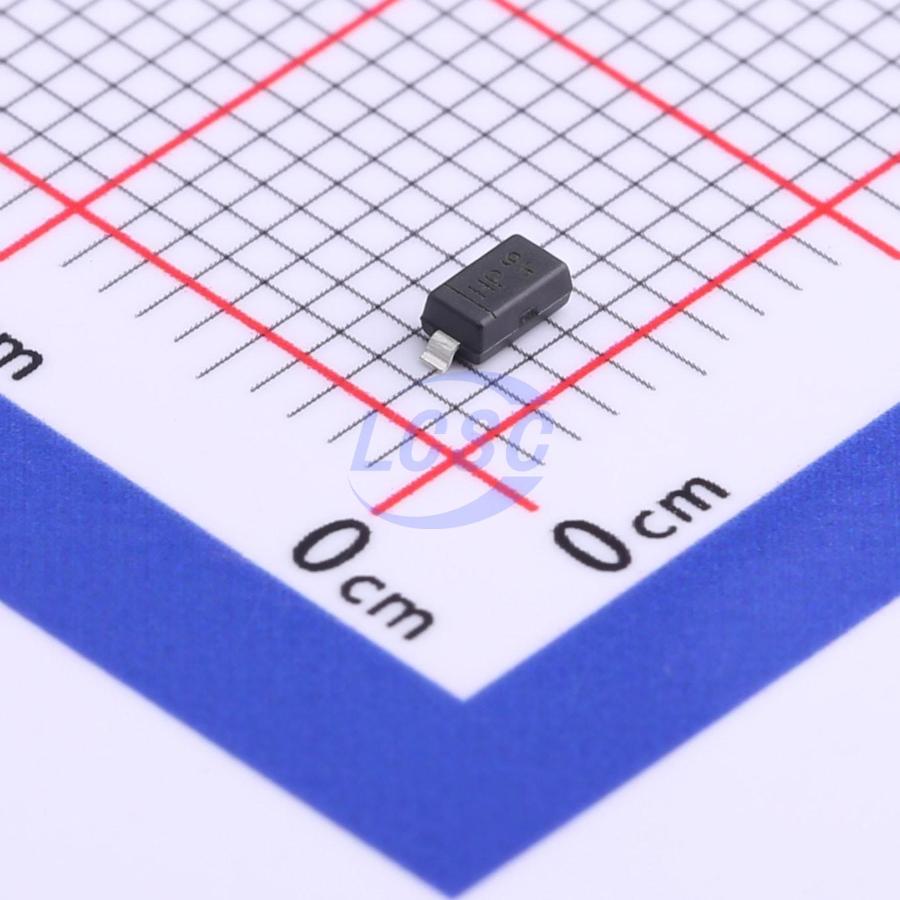

DDZ9696-7
Zener Diode 9.1V 500mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 9.1V 500mW SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- DDZ9696-7
- Store part #
- C780810
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C780810
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.72 | ₹114.40 |
| 200+ | ₹4.63 | ₹926.00 |
| 600+ | ₹4.04 | ₹2,424.00 |
| 3,000+ | ₹3.66 | ₹10,980.00 |
| 9,000+ | ₹3.36 | ₹30,240.00 |
| 21,000+ | ₹3.19 | ₹66,990.00 |
20 × ₹5.72
₹114.40
excl. GST
₹134.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DDZ9696-7
₹114.40 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 100nA
- Zener Voltage(Range)
- 8.65V~9.56V
- Zener Voltage(Nom)
- 9.1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.04 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C9V1-HE3 A-08#C25006777VISHAY · SOD-123 | VISHAY | SOD-123 | 845 | ₹33.51 · 845 in stock | View |
 | MMSZ5239B#C3742224DIOTEC · SOD-123F | DIOTEC | SOD-123F | 2,480 | ₹7.17 · 2,480 in stock | View |
 | LMSZ5239BT1G#C131746LRC · SOD-123 | LRC | SOD-123 | 22,000 | ₹3.52 · 22,000 in stock | View |
 | MMSZ9V1T1G#C132795onsemi · SOD-123 | onsemi | SOD-123 | 5,975 | ₹11.18 · 5,975 in stock | View |
 | BZT52C9V1#C19267773HXY MOSFET · SOD-123 | HXY MOSFET | SOD-123 | 2,700 | ₹1.71 · 2,700 in stock | View |
