DIODESDatasheet (PDF)

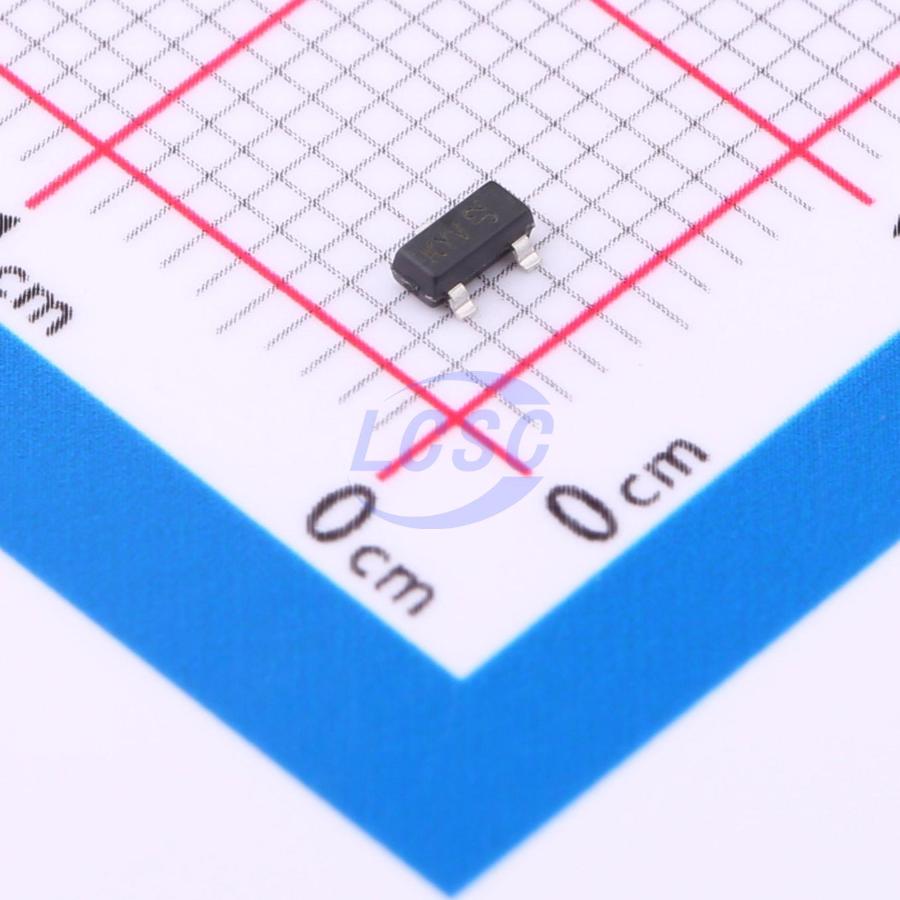

DDZX12C-7
Zener Diode Independent 12V 300mW Surface Mount SOT-23
SOT-23ROHS CompliantSold out at source
DIODE ZENER 12V 300mW SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DDZX12C-7
- Store part #
- C5244857
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
150 in stock
#C5244857
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.34 | ₹73.40 |
| 100+ | ₹7.24 | ₹724.00 |
| 300+ | ₹7.17 | ₹2,151.00 |
| 1,000+ | ₹7.10 | ₹7,100.00 |
10 × ₹7.34
₹73.40
excl. GST
₹86.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DDZX12C-7
₹73.40 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 100nA
- Impedance(Zzt)
- 12Ω
- Zener Voltage(Range)
- 11.74V~12.35V
- Zener Voltage(Nom)
- 12V
- Impedance(Zzk)
- 110Ω
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Key features
- Very Sharp Breakdown Characteristics
- 300mW Power Dissipation on FR-4 PCB
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Very Low Leakage Current
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free
- "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
- An Automotive-Compliant Part is Available Under Separate Datasheet (DDZX5V1BQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DDZX12C-7#C3730708DIODES · SOT-23 | DIODES | SOT-23 | 1,860 | ₹8.73 · 1,860 in stock | View |
 | TPZ12VCS3#C46472812TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,000 | ₹2.80 · 1,000 in stock | View |
 | BZX84C12#C22400503BLUE ROCKET · SOT-23 | BLUE ROCKET | SOT-23 | 1,800 | ₹2.25 · 1,800 in stock | View |
 | BZX84C12-HE3_A-08#C20568187VISHAY · SOT-23(TO-236) | VISHAY | SOT-23(TO-236) | 3,000 | ₹31.84 · 3,000 in stock | View |
 | LBZX84C12LT1G#C12773LRC · SOT-23 | LRC | SOT-23 | 6,400 | ₹2.54 · 6,400 in stock | View |
