DIODESDatasheet (PDF)

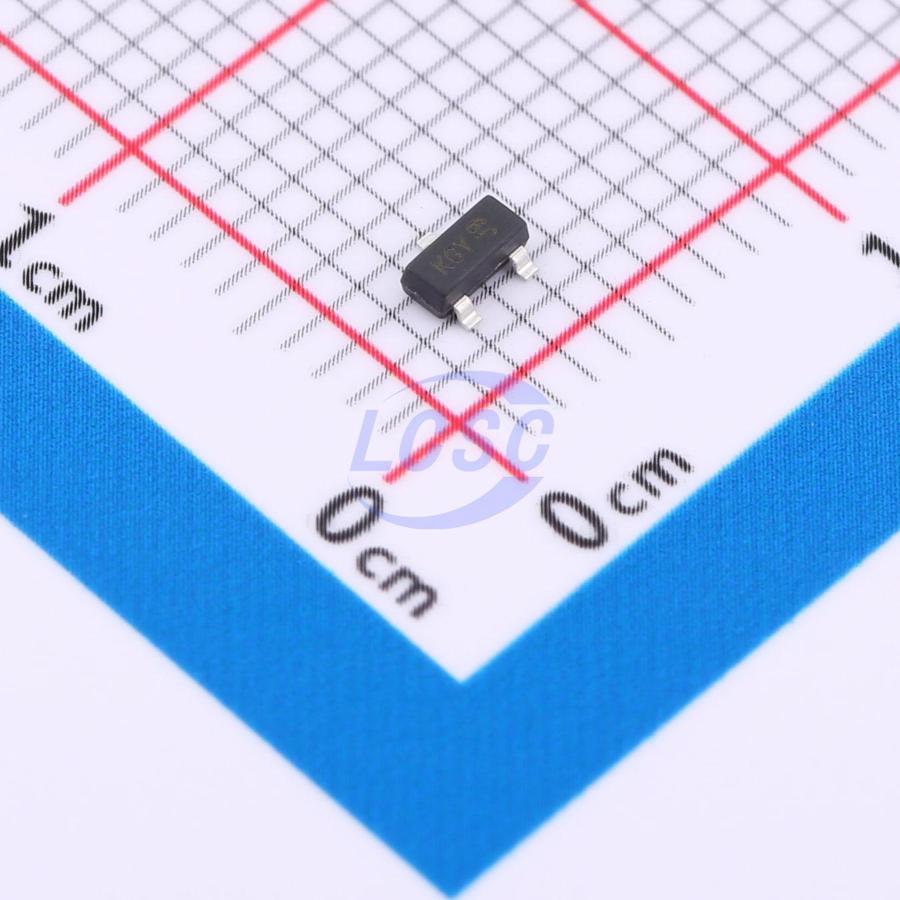

DDZX15-13
Zener Diode 15V 300mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 15V 300mW SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DDZX15-13
- Store part #
- C6601301
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
150 in stock
#C6601301
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.77 | ₹77.70 |
| 100+ | ₹7.66 | ₹766.00 |
| 300+ | ₹7.59 | ₹2,277.00 |
| 1,000+ | ₹7.51 | ₹7,510.00 |
10 × ₹7.77
₹77.70
excl. GST
₹91.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DDZX15-13
₹77.70 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 50nA@12V
- Impedance(Zzt)
- 18Ω
- Zener Voltage(Range)
- 14.8V~15.57V
- Zener Voltage(Nom)
- 15V
- Impedance(Zzk)
- 150Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.016 g
Overview
Key features
- Very Sharp Breakdown Characteristics
- 300mW Power Dissipation on FR-4 PCB
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Very Low Leakage Current
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free
- "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
- An Automotive-Compliant Part is Available Under Separate Datasheet (DDZX5V1BQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| DDZX15-7#C2760565DIODES · SOT-23 | DIODES | SOT-23 | 500 | ₹7.47 · 500 in stock | View | |
 | BZX84C15-G3-08#C3734320VISHAY · SOT-23 | VISHAY | SOT-23 | 875 | ₹7.22 · 875 in stock | View |
 | BZX84C15#C2910160JSCJ · SOT-23 | JSCJ | SOT-23 | 13,440 | ₹4.33 · 13,440 in stock | View |
 | AD-BZX84B15#C2975637JSCJ · SOT-23 | JSCJ | SOT-23 | 10 | ₹6.68 · 10 in stock | View |
 | LBZX84C15LT1G#C12764LRC · SOT-23 | LRC | SOT-23 | 6,050 | ₹2.83 · 6,050 in stock | View |
