DIODESDatasheet (PDF)

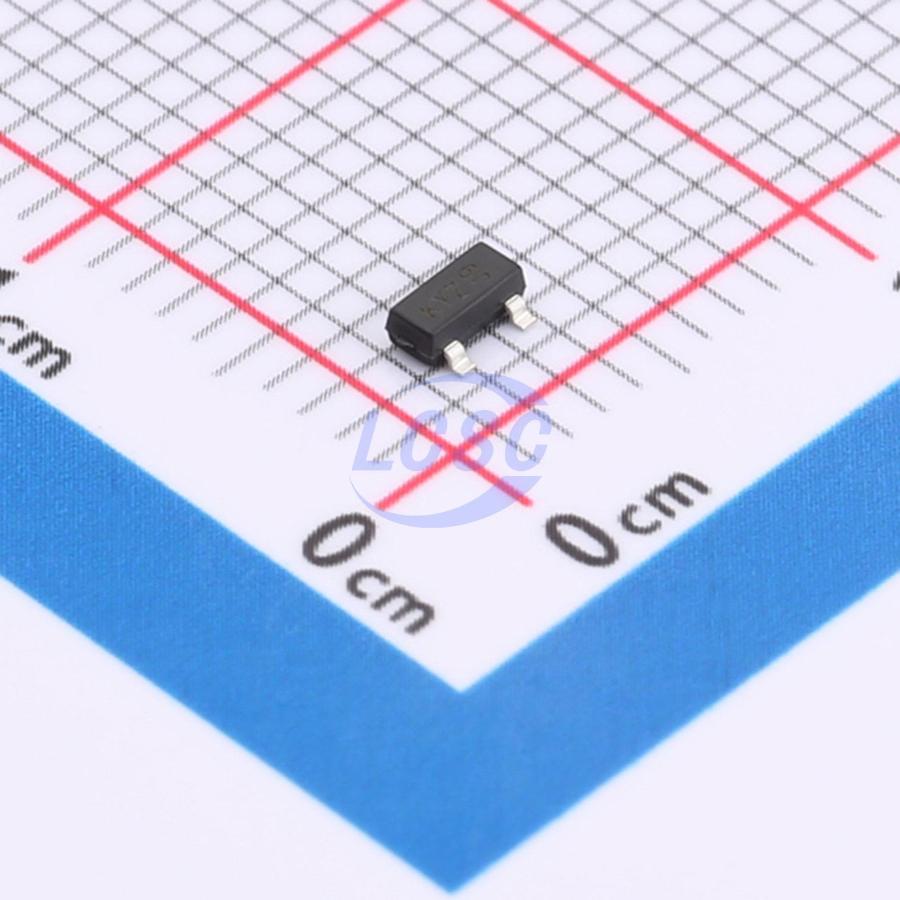

DDZX18C-13
Zener Diode 18V 300mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 18V 300mW SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DDZX18C-13
- Store part #
- C6932151
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
120 in stock
#C6932151
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.61 | ₹76.10 |
| 100+ | ₹7.50 | ₹750.00 |
| 300+ | ₹7.42 | ₹2,226.00 |
| 1,000+ | ₹7.36 | ₹7,360.00 |
10 × ₹7.61
₹76.10
excl. GST
₹89.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DDZX18C-13
₹76.10 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 50nA
- Impedance(Zzt)
- 23Ω
- Zener Voltage(Range)
- 17.42V~18.33V
- Zener Voltage(Nom)
- 18V
- Impedance(Zzk)
- 150Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.017 g
Overview
Key features
- Very Sharp Breakdown Characteristics
- 300mW Power Dissipation on FR-4 PCB
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Very Low Leakage Current
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free
- "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
- An Automotive-Compliant Part is Available Under Separate Datasheet (DDZX5V1BQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZX84C18-HE3_A-08#C20570194VISHAY · SOT-23(TO-236) | VISHAY | SOT-23(TO-236) | 477 | ₹63.97 · 477 in stock | View |
 | BZX84B18#C49296787LGE · SOT-23 | LGE | SOT-23 | 2,400 | ₹2.66 · 2,400 in stock | View |
 | LBZX84C18LT1G#C35678LRC · SOT-23 | LRC | SOT-23 | 13,020 | ₹3.68 · 13,020 in stock | View |
 | MMBZ5248B#C193739JSCJ · SOT-23 | JSCJ | SOT-23 | 1,480 | ₹3.73 · 1,480 in stock | View |
 | BZX84C18#C328580BLUE ROCKET · SOT-23 | BLUE ROCKET | SOT-23 | 250 | ₹2.62 · 250 in stock | View |
