DIODESDatasheet (PDF)

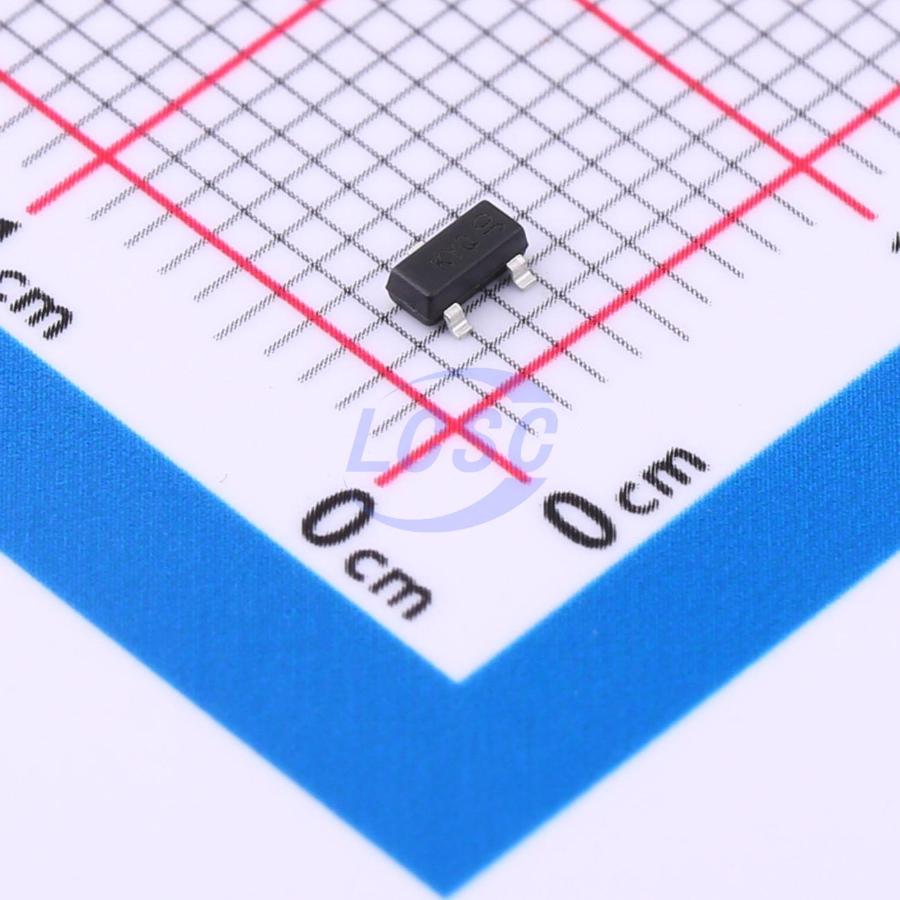

DDZX7V5C-13
Zener Diode 7.5V 300mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 7.5V 300mW SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DDZX7V5C-13
- Store part #
- C5378688
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
690 in stock
#C5378688
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.57 | ₹75.70 |
| 100+ | ₹6.06 | ₹606.00 |
| 300+ | ₹5.29 | ₹1,587.00 |
| 1,000+ | ₹4.74 | ₹4,740.00 |
| 5,000+ | ₹4.27 | ₹21,350.00 |
| 10,000+ | ₹4.05 | ₹40,500.00 |
10 × ₹7.57
₹75.70
excl. GST
₹89.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
DDZX7V5C-13
₹75.70 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 500nA@6V
- Impedance(Zzt)
- 6Ω
- Zener Voltage(Range)
- 7.29V~7.67V
- Zener Voltage(Nom)
- 7.5V
- Impedance(Zzk)
- 120Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.047 g
Overview
Key features
- Very Sharp Breakdown Characteristics
- 300mW Power Dissipation on FR-4 PCB
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Very Low Leakage Current
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free
- "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
- An Automotive-Compliant Part is Available Under Separate Datasheet (DDZX5V1BQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DDZX7V5C-7#C5205160DIODES · SOT-23 | DIODES | SOT-23 | 130 | ₹6.69 · 130 in stock | View |
 | BZX84C7V5#C2926234FOSAN · SOT-23 | FOSAN | SOT-23 | 50 | ₹1.24 · 50 in stock | View |
 | BZX84B7V5#C55259755luJing · SOT-23 | luJing | SOT-23 | 3,000 | ₹1.40 · 3,000 in stock | View |
 | BZX84C7V5#C22435014BLUE ROCKET · SOT-23 | BLUE ROCKET | SOT-23 | 2,950 | ₹2.32 · 2,950 in stock | View |
 | BZX84C7V5 RFG#C410853Taiwan Semiconductor · SOT-23 | Taiwan Semiconductor | SOT-23 | 40 | ₹4.67 · 40 in stock | View |
