DIODESDatasheet (PDF)

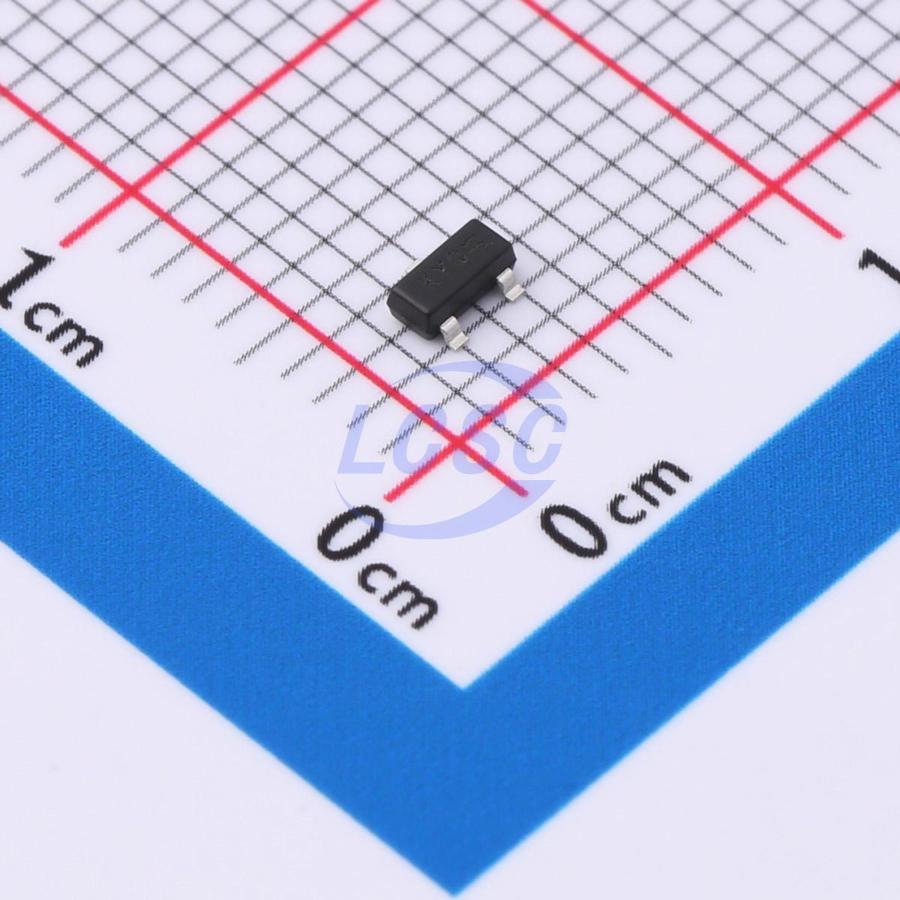

DDZX7V5C-7
Zener Diode 7.5V 300mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
DIODE ZENER 7.5V 300mW SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- DDZX7V5C-7
- Store part #
- C5205160
- Package / case
- SOT-23
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
130 in stock
#C5205160
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹6.69 | ₹33.45 |
| 50+ | ₹6.56 | ₹328.00 |
| 150+ | ₹6.47 | ₹970.50 |
| 500+ | ₹6.38 | ₹3,190.00 |
5 × ₹6.69
₹33.45
excl. GST
₹39.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DDZX7V5C-7
₹33.45 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 300mW
- Reverse Leakage Current (Ir)
- 500nA@6V
- Impedance(Zzt)
- 6Ω
- Zener Voltage(Range)
- 7.29V~7.67V
- Zener Voltage(Nom)
- 7.5V
- Impedance(Zzk)
- 120Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
Key features
- Very Sharp Breakdown Characteristics
- 300mW Power Dissipation on FR-4 PCB
- Very Tight Tolerance on Vz
- Ideally Suited for Automated Assembly Processes
- Very Low Leakage Current
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free
- "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
- An Automotive-Compliant Part is Available Under Separate Datasheet (DDZX5V1BQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DDZX7V5C-13#C5378688DIODES · SOT-23 | DIODES | SOT-23 | 690 | ₹7.57 · 690 in stock | View |
 | TPZ7V5CS3#C46472797TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,400 | ₹2.37 · 2,400 in stock | View |
 | BZX84C7V5#C2926234FOSAN · SOT-23 | FOSAN | SOT-23 | 50 | ₹1.24 · 50 in stock | View |
 | BZX84B7V5#C55259755luJing · SOT-23 | luJing | SOT-23 | 3,000 | ₹1.40 · 3,000 in stock | View |
 | BZX84C7V5#C22435014BLUE ROCKET · SOT-23 | BLUE ROCKET | SOT-23 | 2,950 | ₹2.32 · 2,950 in stock | View |
